S6L-24C and S6L-16C 18
S6L-24C/16C Only
5 Using a 2.5mm Hex driver, remove the fasteners that secure the top cover to the control surface (S6L-24C and 16C both use 4
fasteners).
6 Set a large towel or similar across the upper modules of the control surface (CKM, MTS, MLM) to protect them.
7 Carefully lift the top cover off the chassis and set it face down on the towel you placed on the surface, being careful to not stretch
or stress the cables connected to the light sockets.
8 Proceed to Disconnect Light Cables.

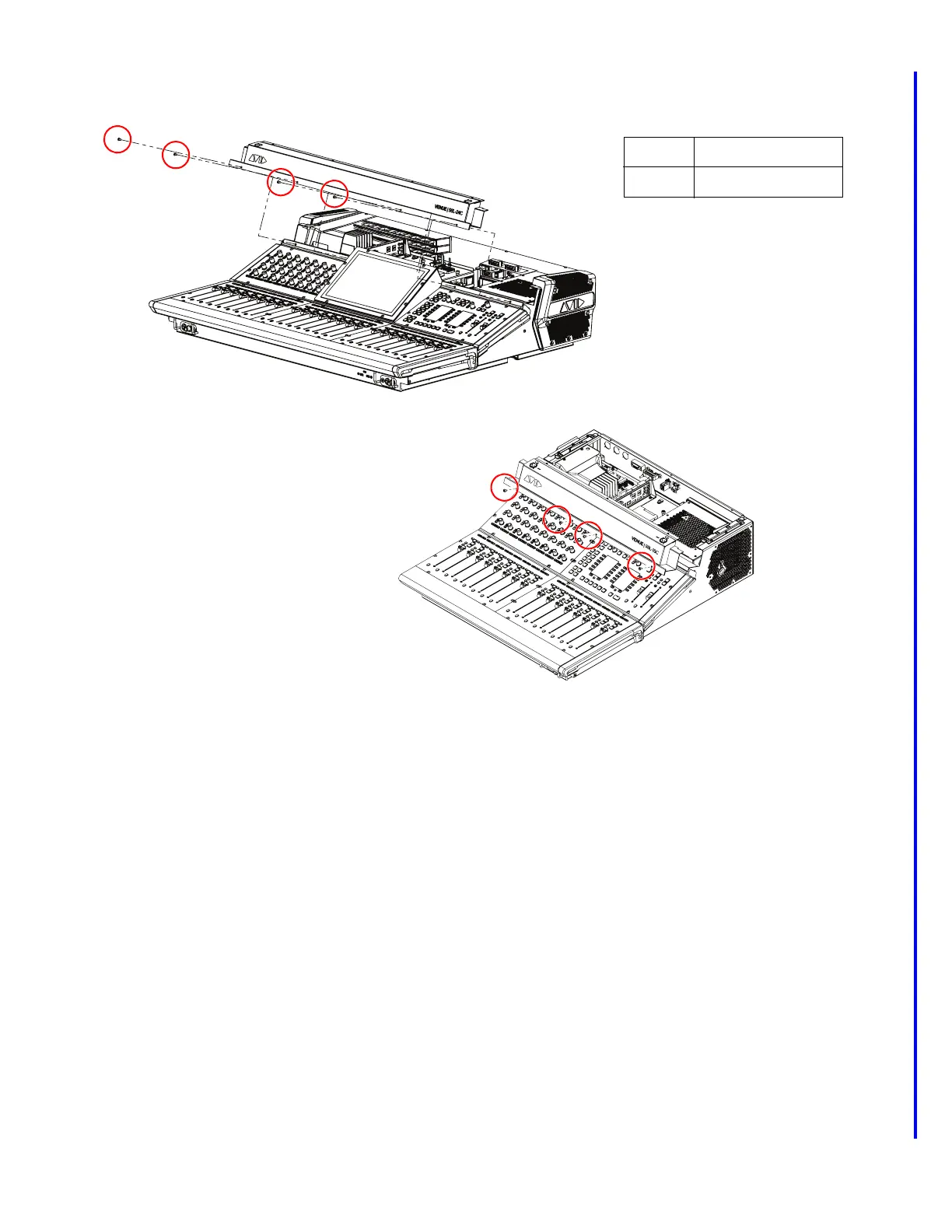

Figure 24. Top cover fasteners on S6L-24C (above, with End Cap loosened) and S6L-16C (below, showing End Caps removed)
Fasteners:
Tool:
M4x8mm BHCS
2.5mm Hex driver
