S6L-24C and S6L-16C 17

S6L-24C/16C Only

2 Using a 2.5mm Hex driver, remove the fasteners that secure the back edge of the back cover to the S6L chassis and set the screws

aside.

• S6L-24C uses 8 fasteners

• S6L-16C uses 6 fasteners

3 After removing the fasteners try sliding the back cover off the chassis by pushing it down with your hands and simultaneously

pulling the cover away from the chassis.

4 Slide the panel away from the control surface, and set the panel aside.

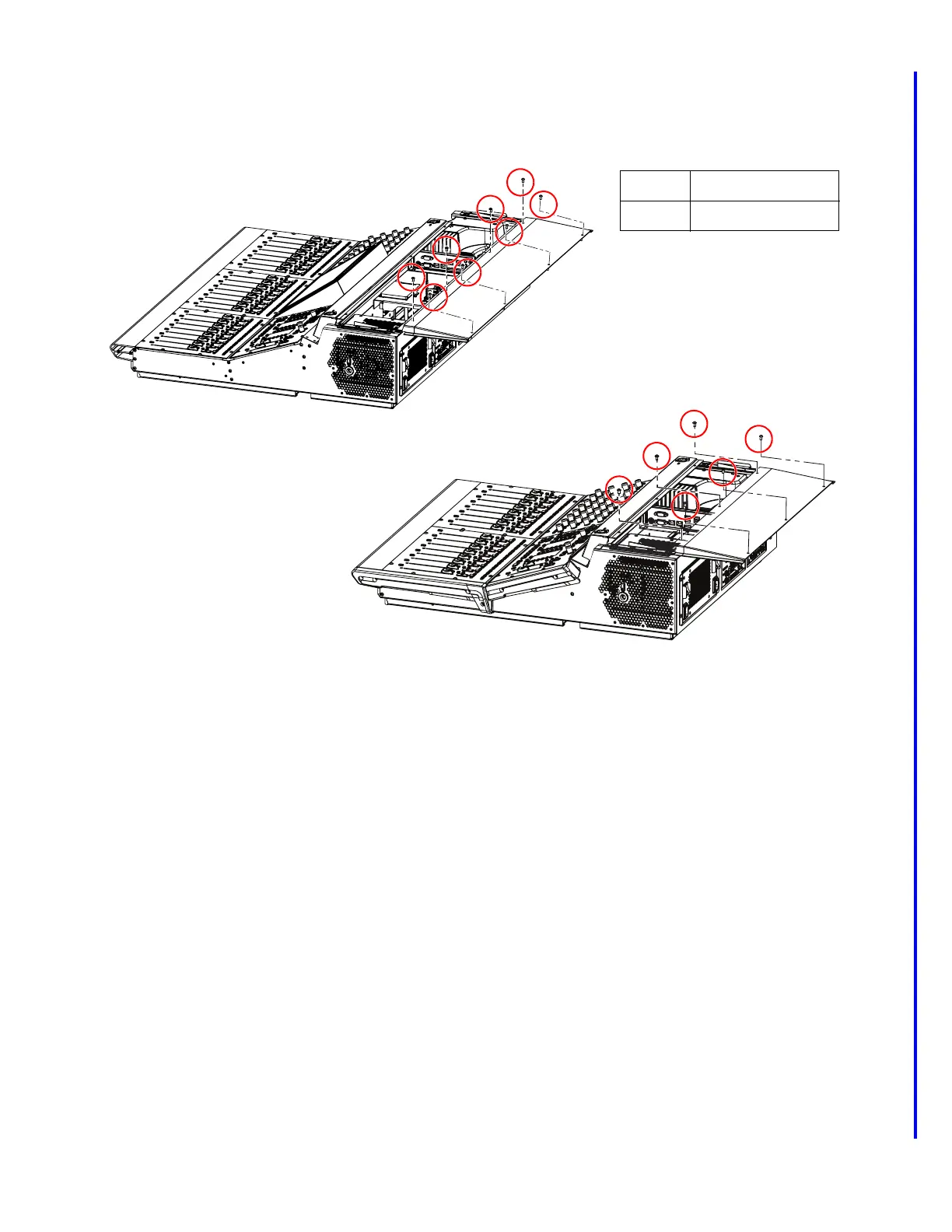

Figure 23. Back Cover fasteners on S6L-24C (above) and S6L-16C (below)

Fasteners:

Tool:

M4x8mm BHCS

2.5mm Hex driver
