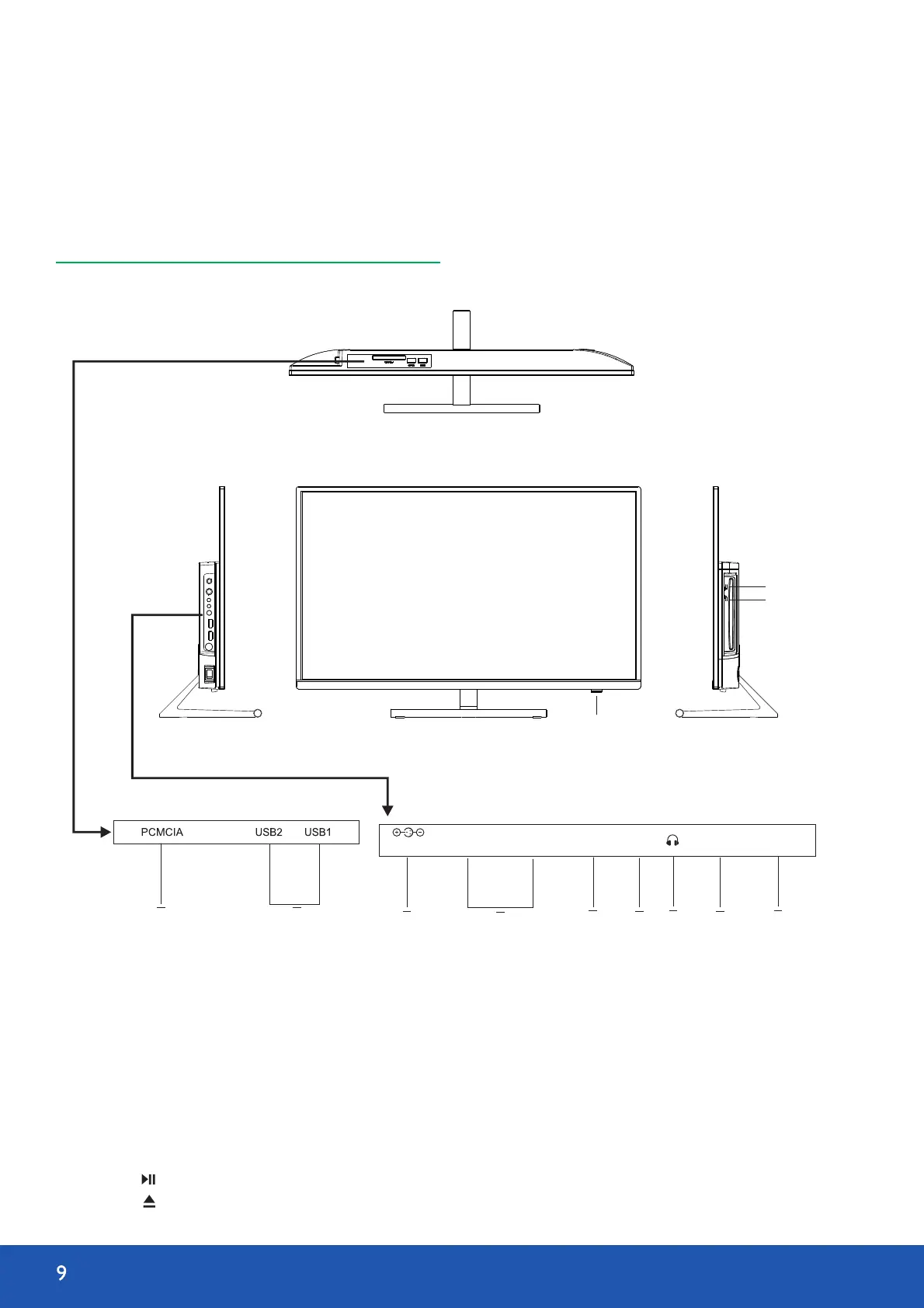

Avtex L270DRS - Parts Identification; Front, Side and above View

Front, side and above views
Parts identification
1 . PCMCIA card slot for external Conditional Access (C A) modules
2 USB jack
3 12V/24V DC input terminal
4 HDMI 1/HDMI 2 in socket. Refer to HDMI lead on p.13, p.21, p.22. ,
5 Coaxial audio out
6 AV input
7 Headphone output terminal
8 SAT input terminal
9 RF input terminal (Aerial)
10 To play normally or pause playing in DVD.
11 Disk in/out in DVD mode.
3
4
5
6
7
8
9
2
1
Coaxial
AV SAT
RF
HDMI
2
HDMI
1
(ARC)
12V/24V
11
10
Standby LED &
Remote control sensor
