4.57 RATE CHANGE
This block is used to restrict the rate of change of an analog signal to a user
programmable maximum rate limit.
OUTPUT
RATE
INPUT
TIME
M
A
G
N
I
T
U
D
E
INP
OUT
RATECHG

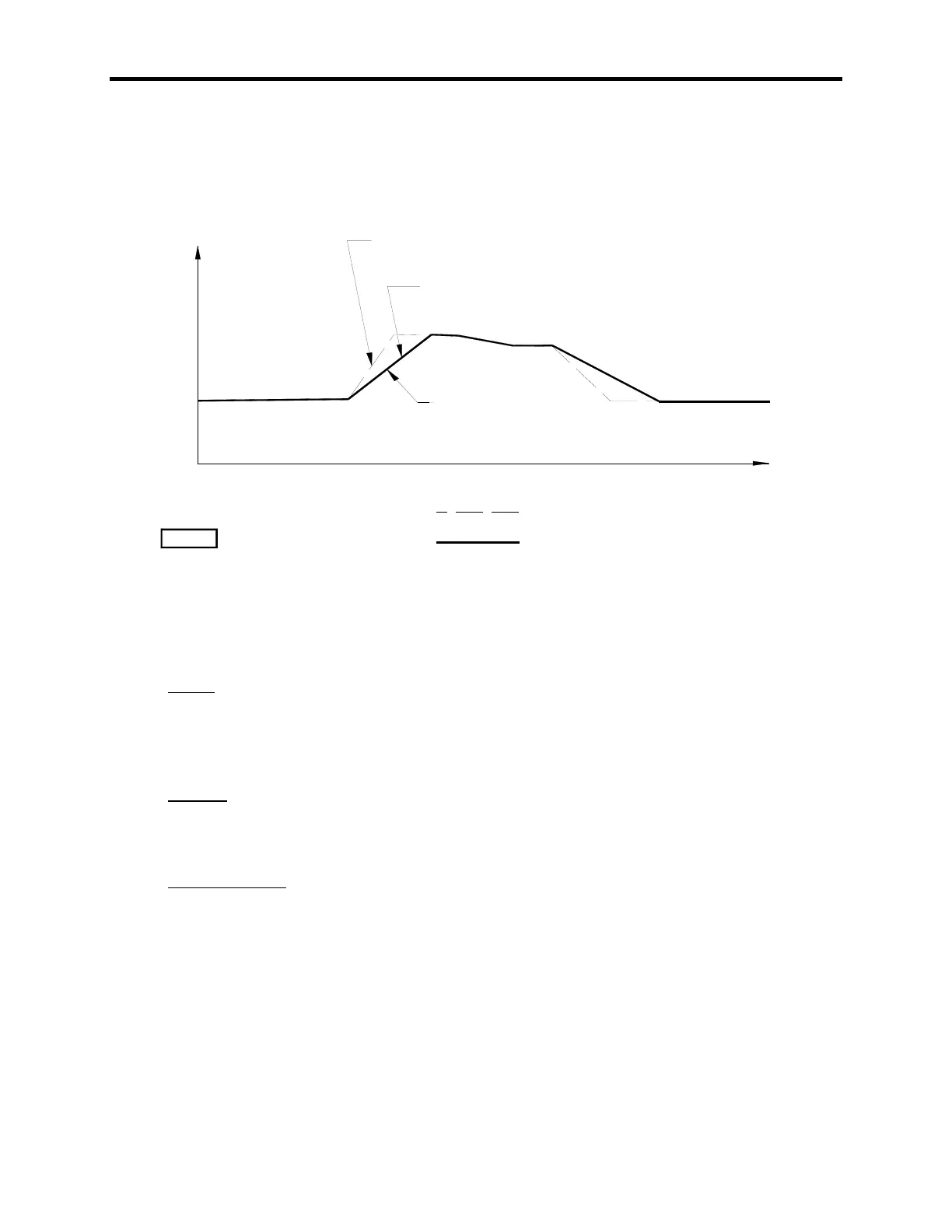

FIGURE 4-57. RATE CHANGE BLOCK
1. Inputs
INP: Analog
RATE : Analog
2. Outputs
OUT: Analog
3. Implementation
RATE is scaled in units/second.
If INP is changing less than RATE, OUT is equal to INP. If INP is changing faster than
RATE, OUT changes at the RATE value.

Avtron ADDvantage-32 Specifications

General

Manufacturer	Avtron
Type	Control Unit
Model	ADDvantage-32
Number of Channels	32
Humidity	5% to 95% non-condensing
Communication Interface	RS-485
