Control Block Description ADDvantage-32
4-100
The RRAMP3 block can be divided internally into three components to aid in the
understanding of its operation. These components are a Ramp Change Block, a Rate of
Change Limit Block and Additional Control I/O as can be seen in Figure 4-62A.

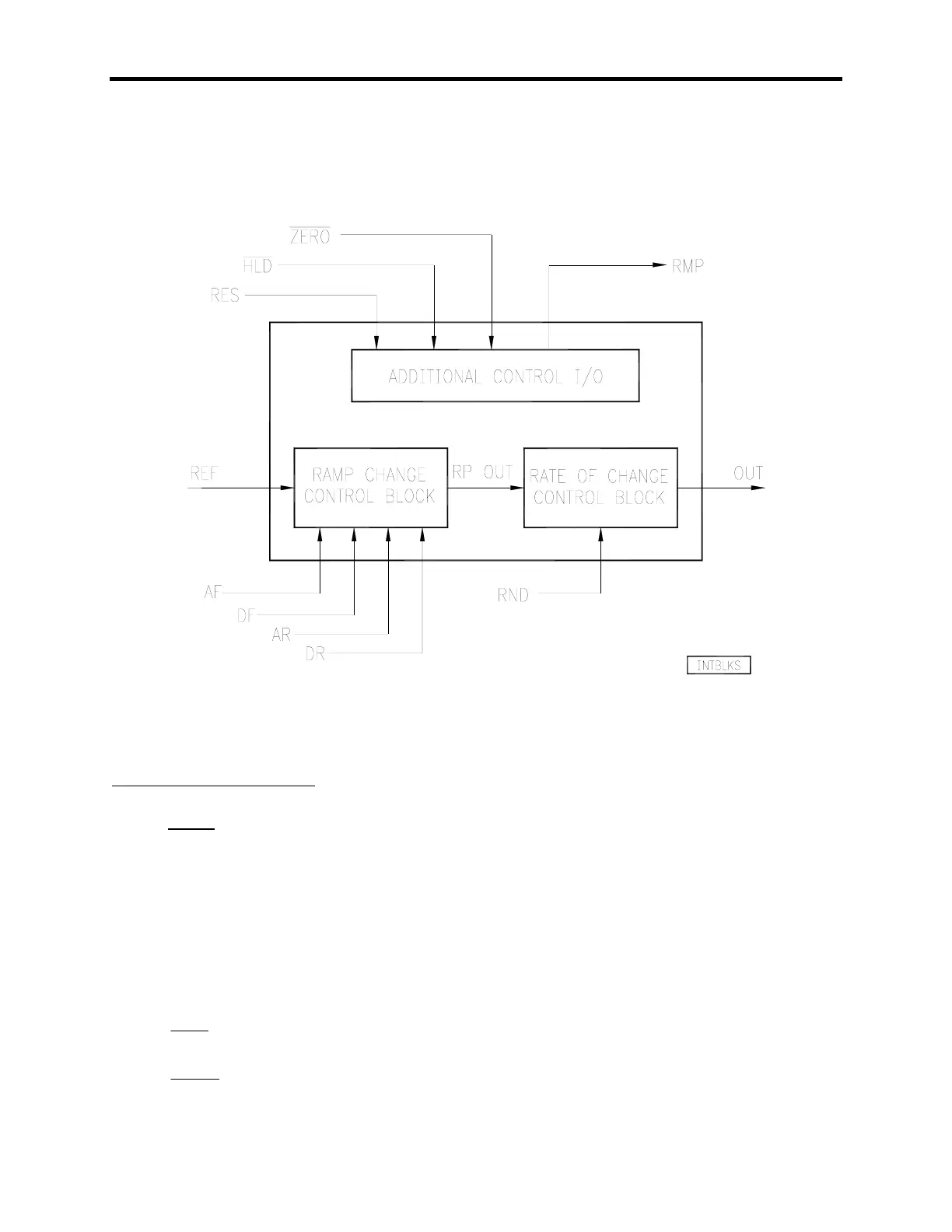

FIGURE 4-62A. INTERNAL CONTROL BLOCKS
RAMP CHANGE BLOCK
1. Inputs
REF: Analog
AF: Analog
DF: Analog
AR: Analog
DR: Analog
RND: Analog
RES: Digital
HLD: Digital
ZERO: Digital
