Control Block Description ADDvantage-32
4-89
4.60 RESOLVER 1
The RESOLVER 1 block is only used in conjunction with the Avtron optional Resolver
board. The Resolver board mounts on the first SBX site on the Maxi system board. It
provides 16 digital inputs and two digital outputs. This block provides the software
interface to the board.

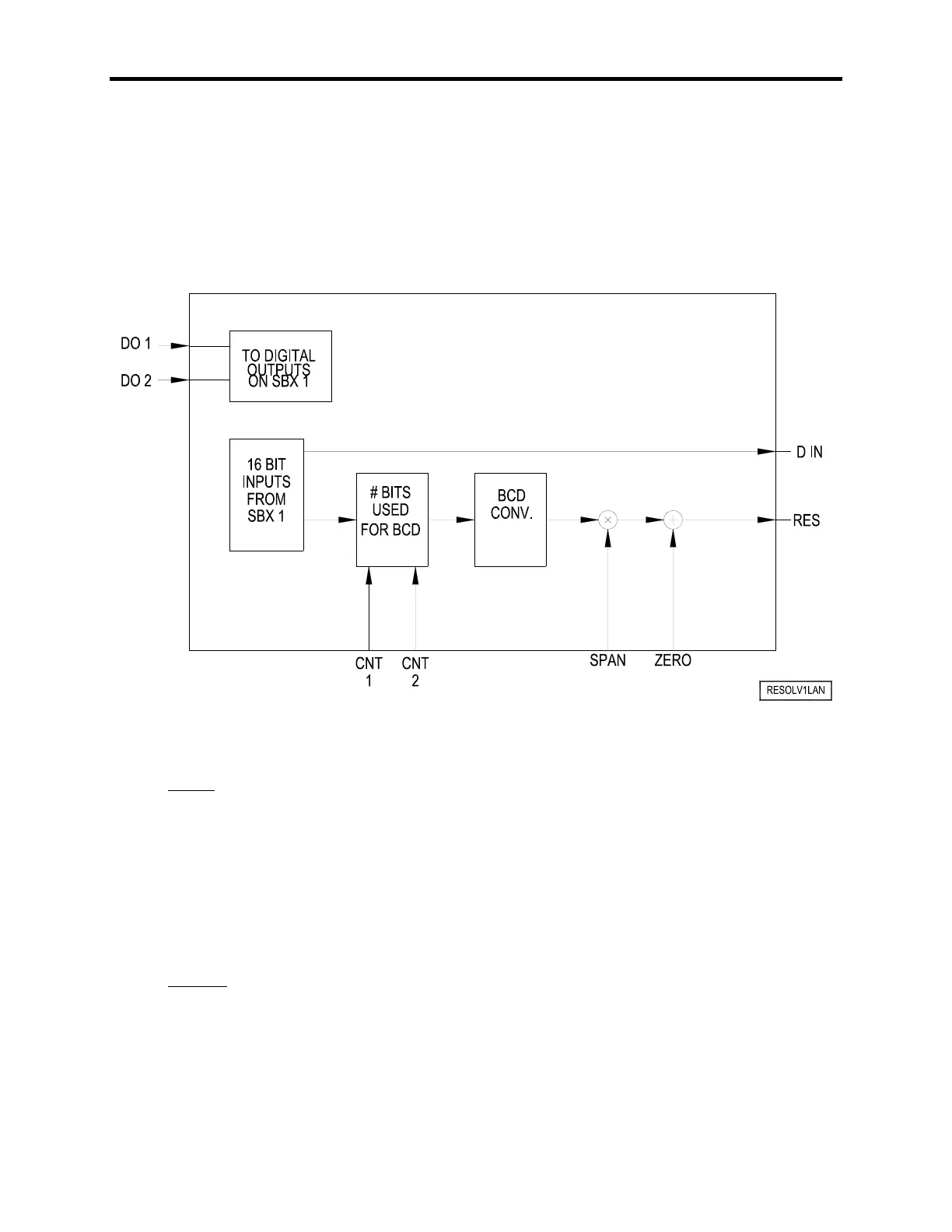

FIGURE 4-60. RESOLVER 1 BLOCK
1. Inputs
SPAN: Analog
ZERO: Analog
DO 1: Digital
DO 2: Digital
CNT 1: Digital
CNT 2: Digital
2. Outputs
RES: Analog
D IN: Digital
