Control Block Description ADDvantage-32
4-92

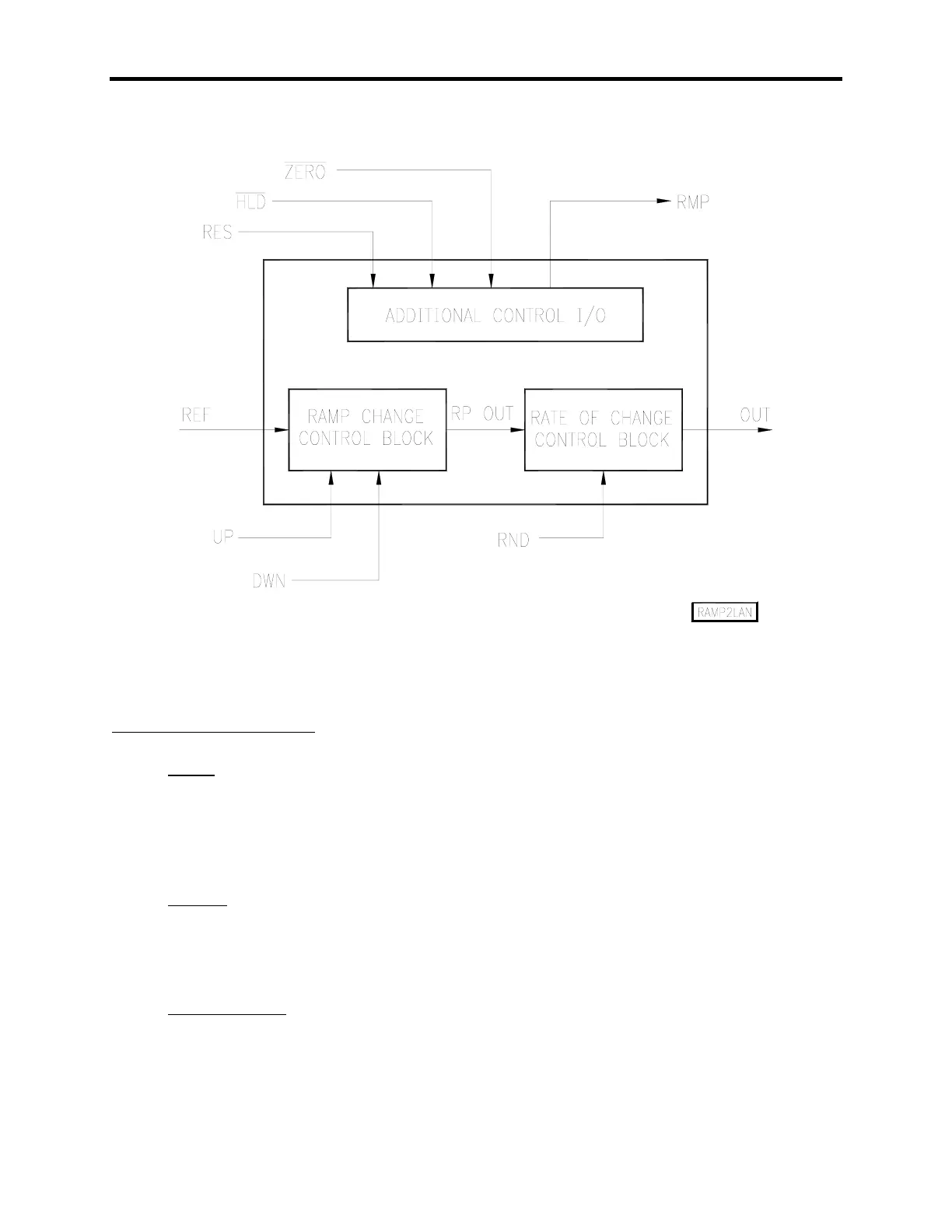

FIGURE 4-61A
RAMP CHANGE BLOCK
1. Inputs
UP: Analog
DWN: Analog
REF: Analog
2. Outputs
RP OUT: Analog
RMP: Bit
3. Implementation
The following holds true while the HLD, ZERO bits are set high and the RES bit is low
(explained in detail in ADDITIONAL CONTROL I/O).
