Control Block Description ADDvantage-32
4-104
4.64 SBXDIA4
The SBXDIA4 block calculates the diameter by relating a reference pulse generator with
a once-per-revolution pickup. This block requires the GSBX board connected to the
Maxi system board. The board provides the following:
Reference pulse generator input
(4) Once-per-revolution pickups
(8) Definable digital inputs
(4) Definable digital outputs

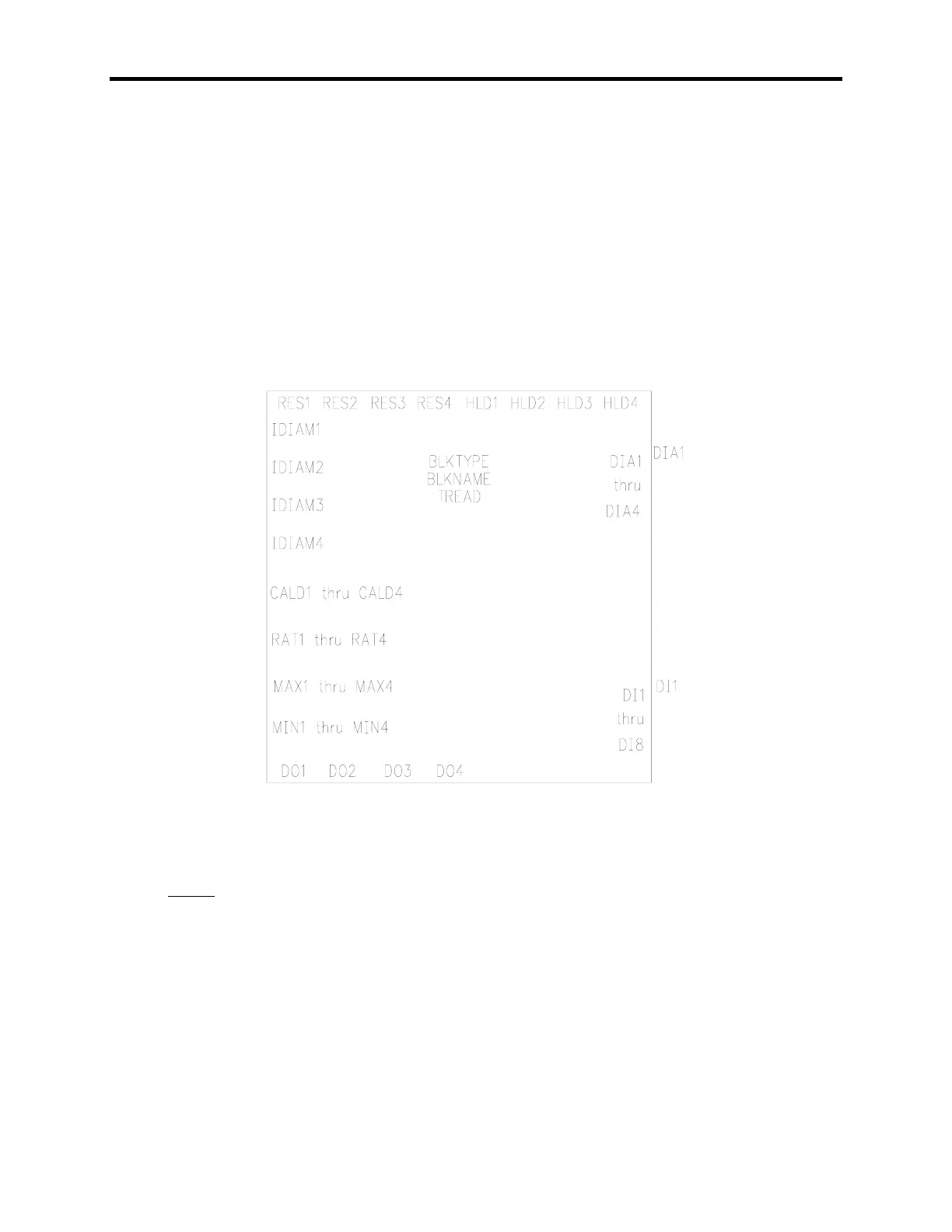

FIGURE 4-64. SBXDIA4 BLOCK
1. Inputs
IDIAM1 Analog
IDIAM2 Analog
IDIAM3 Analog
IDIAM4 Analog
CALD1 Analog
RATE1 Analog
MAX DIA1 Analog
MIN DIA1 Analog
To Next Page
