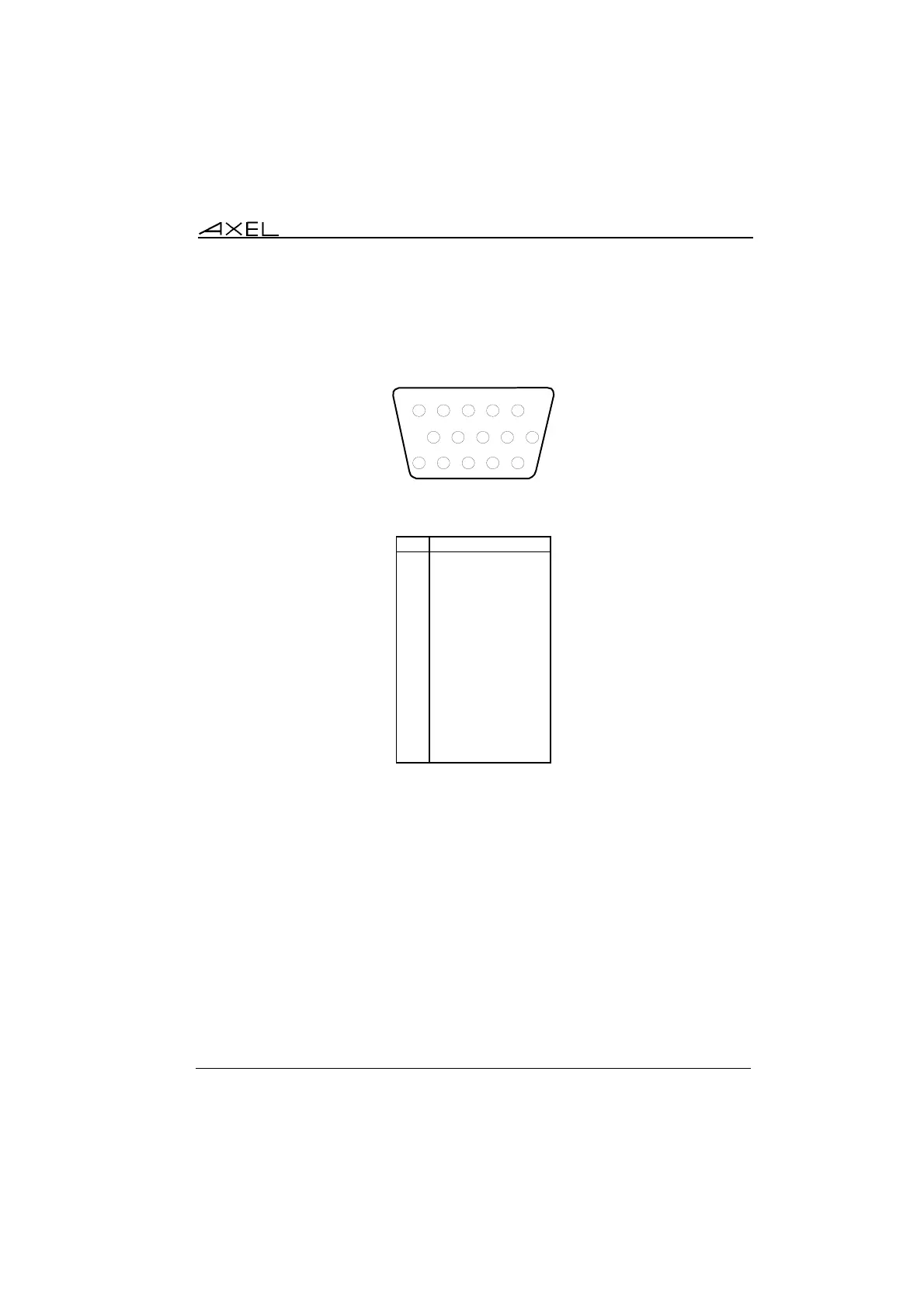

Connector Pin Assignments
Installation Guide - Model 60E
15
4.5 - VIDEO INTERFACE
The AX3000 video interface is VGA and SVGA compatible:
5
4
3
2
1
10
9
8
7
6
15
14
13
12
11
VGA/SVGA connector
(Model 60E, rear panel)
Pin Signal
name
1 Red
2 Green
3 Blue
4 ---
5 Ground
6 Ground
7 Ground
8 Ground
9 Ground
10 Ground
11 ---
12 ---
13 Horizontal
sync.
14 Vertical
sync.
15 ---
