Installation
Installation Guide - Model 60E 3

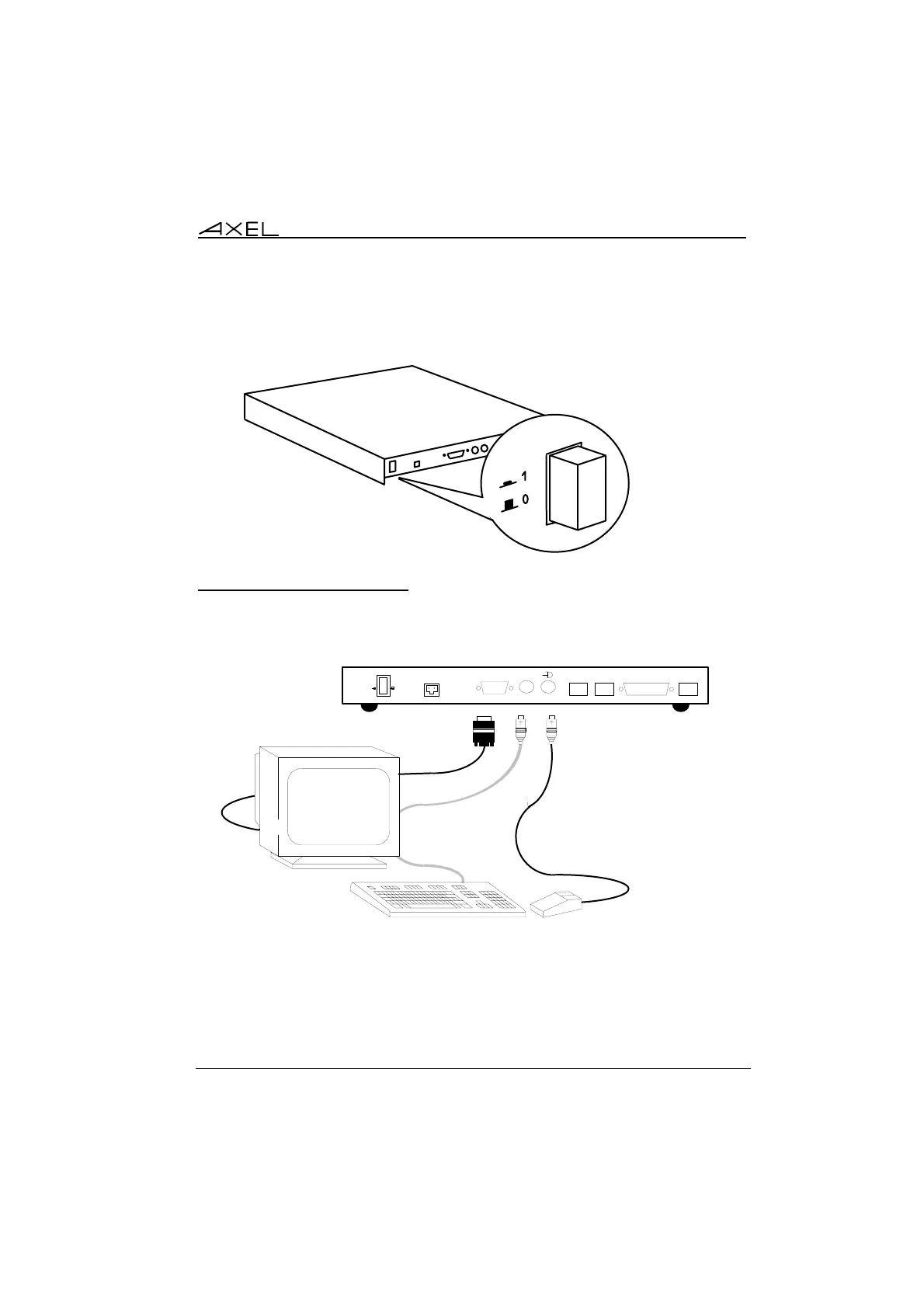

Make sure the AX3000 and monitor power switches are in the OFF (0) position
before connecting cables to the back panel.
1 : On
0 : Off
2.2.1 - Monitor and keyboard
Plug in the VGA monitor cable, the AT-compatible keyboard cable and the
optional mouse cable to the dedicated connectors on the terminal back panel:
I
O
SVGA PARALLELAUX2 10BTAUX1KEYB
12VAC
If your keyboard is fitted with a DIN connector, connect it using a DIN-to-Mini-
DIN adaptor.
To comply with EMC regulations, the VGA signal cable must be shielded.
