Connector Pin Assignments
16
Installation Guide - Model 60E
4.6 - PARALLEL INTERFACE
The AX3000 terminal Model 60E is equipped with a parallel port.
13
12
11
10
9
8
7
6
5
4
3
2
1
25
24
23
22
21
20
19
18
17
16
15
14

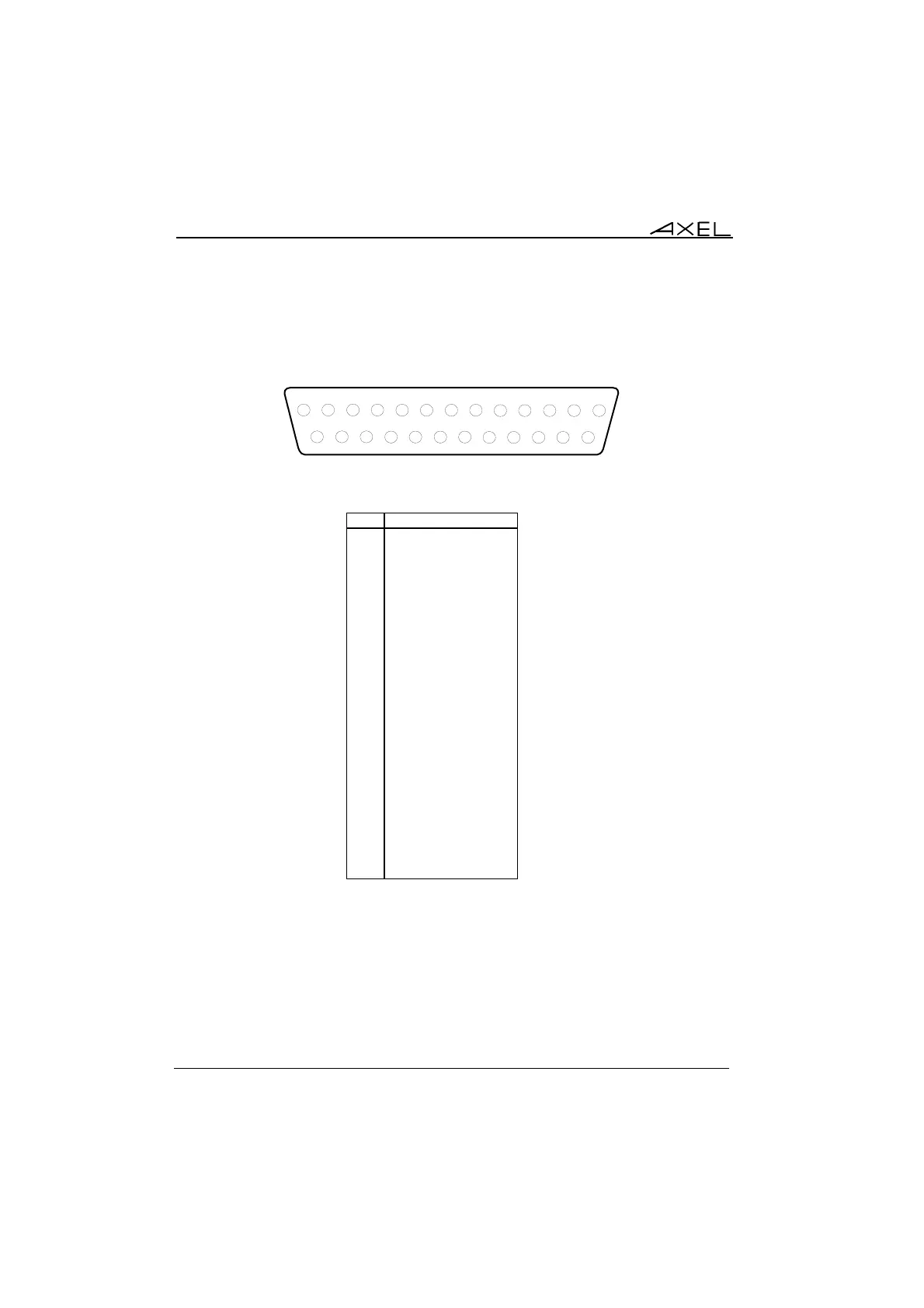

Parallel connector
(Model 60E, rear panel)
Pin Signal
Name
1 Strobe
2 Data
0
3 Data
1
4 Data
2
5 Data
3
6 Data
4
7 Data
5
8 Data
6
9 Data
7
10 ACK
(Acknowledge)
11 Busy
12
PE (Paper End)
13 SLCT
(Select)
14
Auto Feed XT
15 Error
16 Init
17 SLCT
IN
18 Ground
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
25 Ground
19
21
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Notices
5
2 Installation
6
Description
6
Monitor and Keyboard
7
Ethernet Connection
8
Auxiliary Ports
9
AC Power Connection
9
Power on
10
3 Setting-Up the Ax3000
11
Quick Set-Up
11
Interactive Set-Up
12
Setting-Up the Rdp Server
14
4 Connector Pin Assignments
15
Ethernet Port Rj45 (10Bt)
15
Serial Ports Aux1 and Aux2 (Rj45)
16
RJ45-DB9 and RJ45-DB25 Adaptors
17
Peripheral RJ45 Cables
17
Keyboard Interface
18
Mouse Interface
18
Video Interface
19
Parallel Interface
20
5 Problem Solving
21
5
