Installation
4 Installation Guide - Model 60E
Note: when the terminal is installed in a cabinet or rack, it is essential to
maintain air circulation around the VGA/SVGA monitor.
2.2.2 - Ethernet Connection

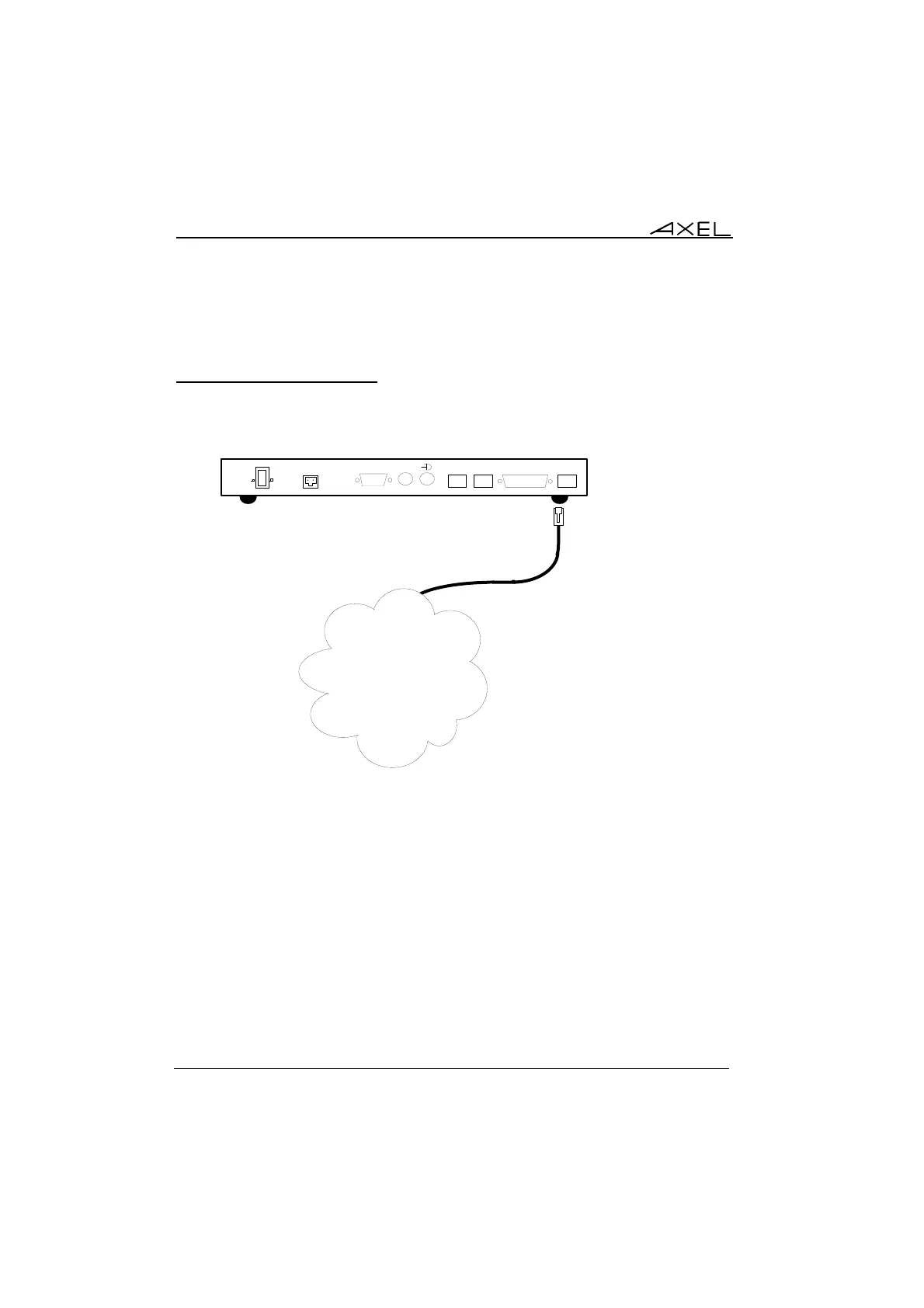

Plug the 10Base-T ethernet cable into the socket labelled 10BT on the back of
the AX3000 (see chapter 4.1 for technical specifications and pin assignments).
I
O
SVGA PARALLELAUX2 10BTAUX1KEYB
12VAC
ETHERNET
ETHERNET CONNECTION INDICATOR LIGHT: This indicator is a green
LED, located next to the RJ45 connector on the rear of the terminal. It
lights to indicate a satisfactory connection to the Ethernet circuit (server
or hub).
Note: if the LED does not light, check that the Ethernet connector and cable
both comply with the specifications listed in chapter 4.1.
