Installation
Installation Guide - Model 60E 5
2.2.3 - Auxiliary Ports
AX3000 Models 60E have three auxiliary ports as a standard feature:
- MAIN-AUX1: bi-directional serial port, RJ45 connector,
- AUX2: bi-directional serial port, RJ45 connector,
- PARALLEL: parallel port, female 25-pin connector.
Cable pin assignments are listed in chapter 4.
To comply with EMC regulations, the serial cables must be shielded.

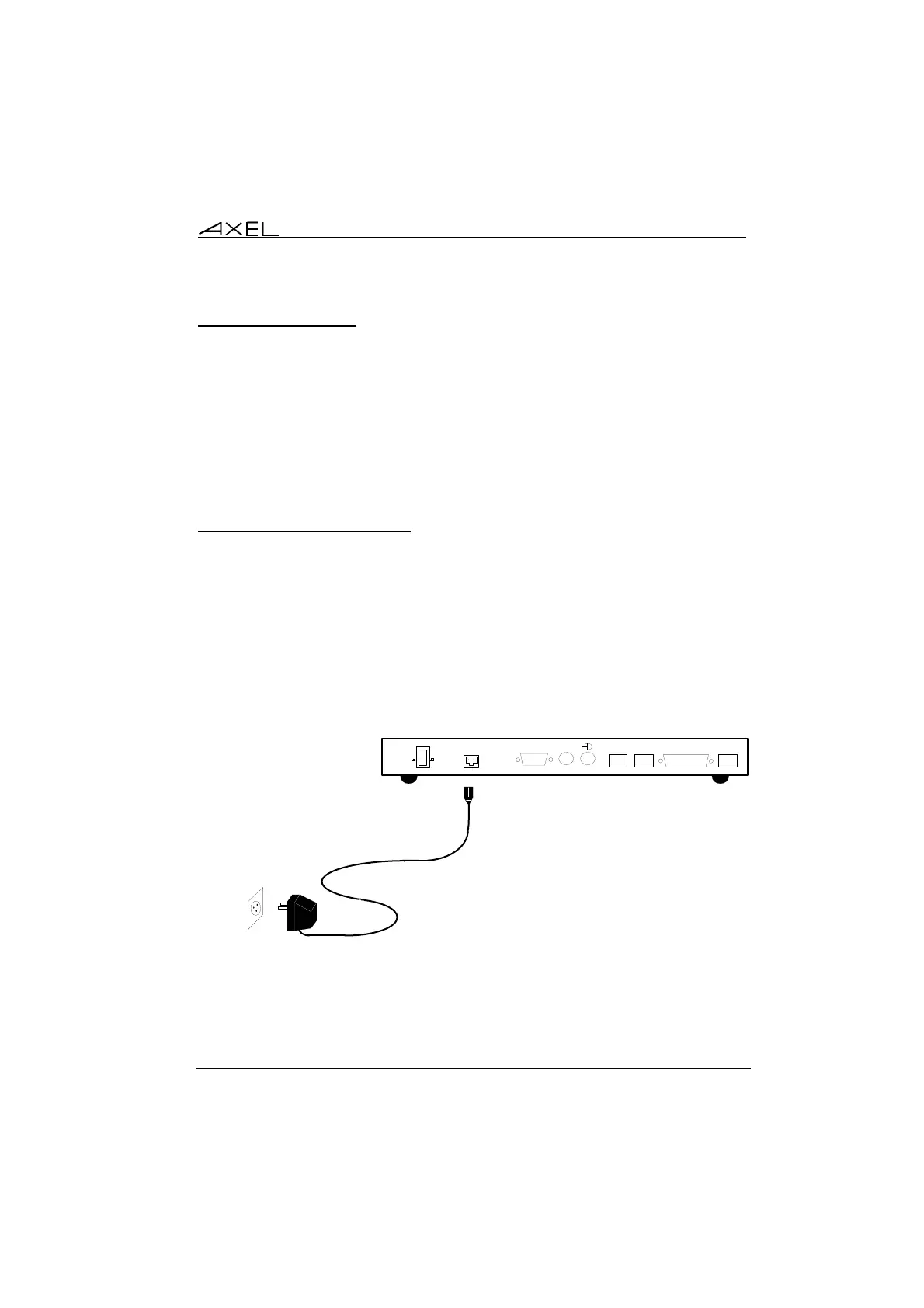

2.2.4 - AC Power Connection
An Axel external power transformer must be used, to convert mains voltage at
the wall outlet to low voltage for the AX3000 Model 35.
Before connecting, make sure the AX3000 and monitor power switches are
both in the OFF (0) position.
Plug the plastic moulded cord connector of the external power transformer
(ref. AXP/EC9.8) to the AX3000 power connector. Then plug the transformer
into the AC wall outlet.
I
O
SVGA PARALLELAUX2 10BTAUX1KEYB
12VAC
Warning: Only use the Axel external transformer supplied with your
AX3000 Model 60E. Use of any other transformer may cause permanent
damage to the AX3000.
