AXELL OPTICAL MASTER UNIT MARK II
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd Doc PN 00018UM Rev. 1.9 11
1.7 OMU Rear Panel Power and RF Interfaces
The OMU II rear-panel provides interface to the:
• RF source connections
• Power supply connections
Two main types of rear panels are available:
• Model supporting one or two service connections
• Model supporting up to eight service connections via POI interface
1.7.1 Rear Panel for One or Two Service Connections
The rear panel is protected by a removable plate with openings for routing the power cables and for
accessing the OMU N-type RF connections.
The rear panel may vary according to the number of supported sectors. The following figure
illustrates the rear panel supplied for a single sector with simplex RF connections.

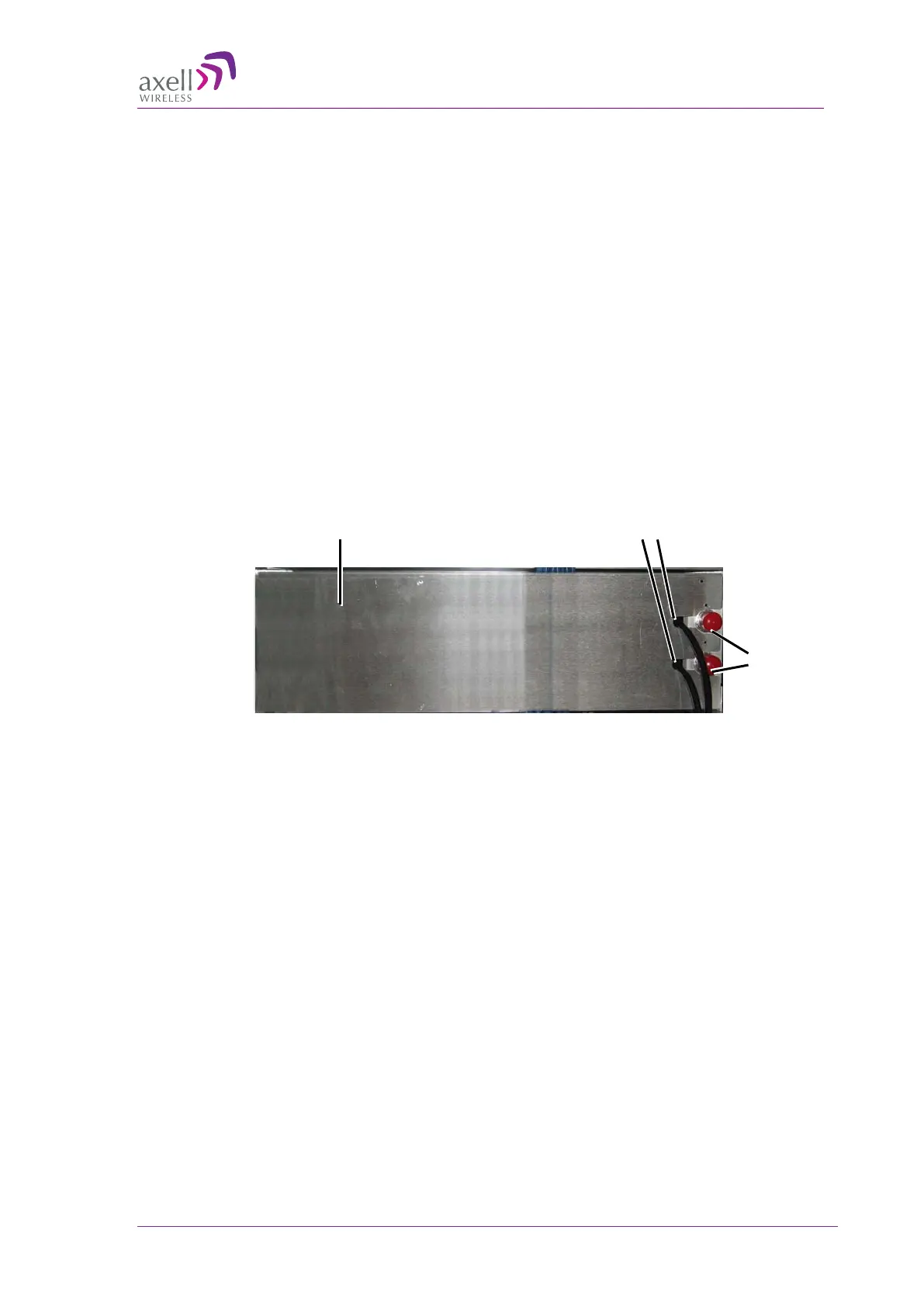

Figure 1-7. Example of OMU II Rear Panel Interfaces – Single Sector Simplex Connections
Routed
Power Cables
RF
connections
Removable
rear panel
