AXIOMATIC AX140900 - Converter Rebooting

UMAX140900. Ethernet to CAN Converter. Version 5 Page: 19-35
Table 4. Health Status
Health Status
Condition
Error
Error is reported when at least one operational status is in the Error state.
Warning
Warning is reported when at least one operational status is in the Warning state
and there are no operational statuses in the Error state.
Undefined
Undefined is reported when at least one operational status is in the Undefined
state and there are no operational statuses in the Error or Warning state.
Normal
Normal is reported when all operational statuses are in the Normal state.
If the Health Status is different from Normal, the user will see a verbose message on the
Diagnostics web page below the Health Status describing which operational status is causing
a problem.

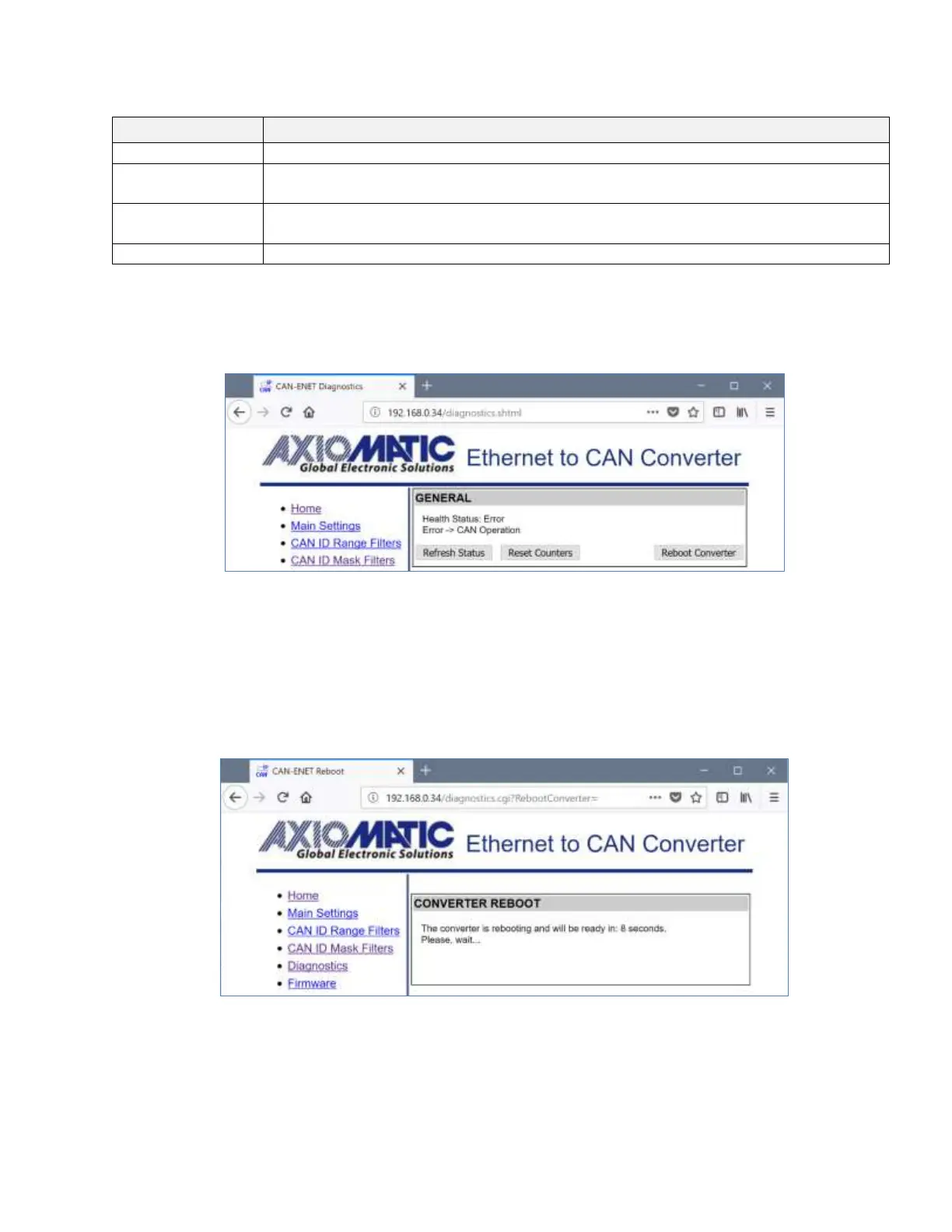

Figure 15. Health Status Message on CAN Error
In case, several operational statuses differ from Normal, all of them will be shown on the
Diagnostics page.
4.2 Converter Rebooting
The user can reboot the converter, when necessary, using the Reboot Converter button.
Figure 16. The Converter Reboot Screen
The rebooting operation takes 10 seconds. The user will see the Reboot screen with a
countdown during this operation.
When rebooting is over, the Diagnostics page will be reloaded.
