AXIOMATIC AX140900 - Housing

UMAX140900. Ethernet to CAN Converter. Version 5 Page: 31-35
8.6 Housing
Injection molded enclosure and cover. Material: PA66, 30% glass fiber reinforced, flame
retardant UL 94 V-0. Ultrasonically welded. For dimensional drawing, see Figure 27.

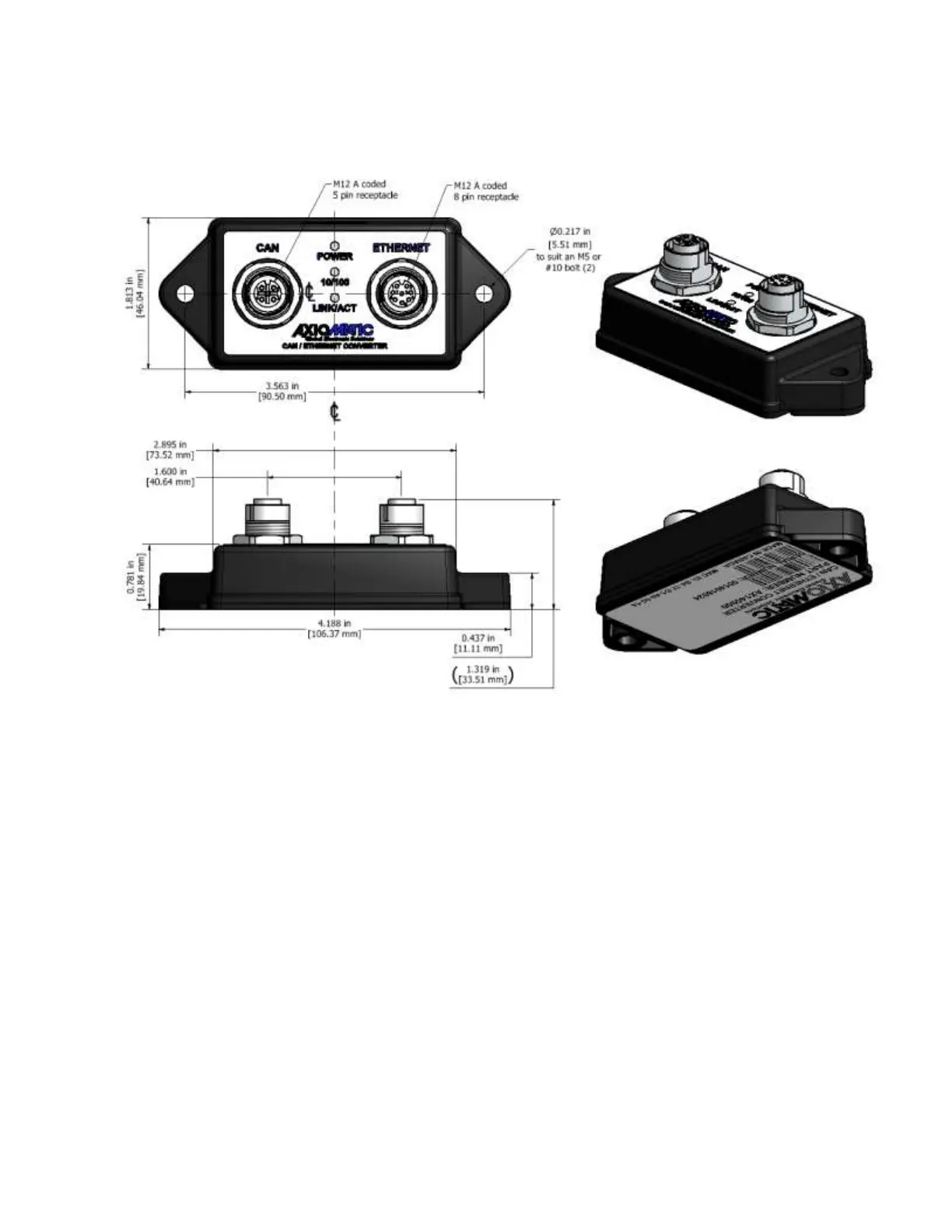

Figure 27. Dimensional Drawing
