For boats equipped with these optional features, it is important for the authorized
Axis dealer to verify the manual extension and retraction function is operational, in
case the consumer ever has to perform this due to the failure of the automated system
controlled through the video screen.

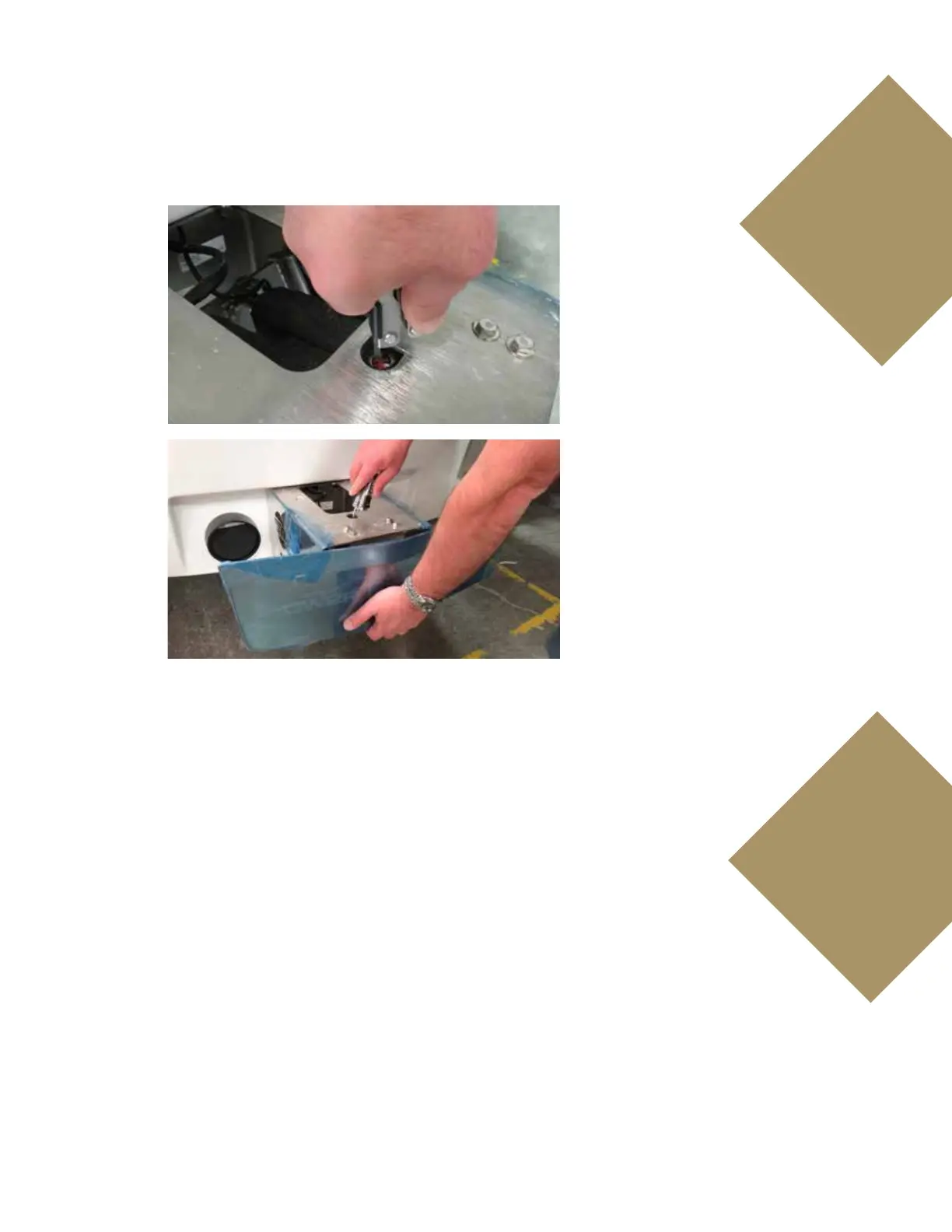

For the Power
Wedge, using a small
(stubby) straight
screwdriver, loosen a small
red screw on top until it stops.
Lift or lower the wedge to
the position desired and then
tighten the screw snugly (but do
no over-tighten). Manually cycle
the wedge a couple of times
after doing to ensure that the
screw is snug and the wedge
moves correctly.
For the Surf Gate, there is a red hex bolt on the side of the actuator. Opening this valve with a
3/8” wrench will allow the Surf Gate to be moved into a closed position Be sure to retighten the
bolt to prevent it from drifting open while operation the boat.
Perform the normal cleaning procedures described above in the Routine
Maintenance. Boats operated in salt/brackish/polluted water are especially
vulnerable to accelerated wear-and-tear. Never ignore the care and maintenance
required to keep your boat under warranty and in good condition for the life of the
boat.
salt
water
boats
power wedge
and surf gate
manual
extension
and retraction
Axis
Owners
Manual
2019
Page 165
