www.axxessid.com
Installation & User Guide
AX200 Installation & User Guide – July 2007
104

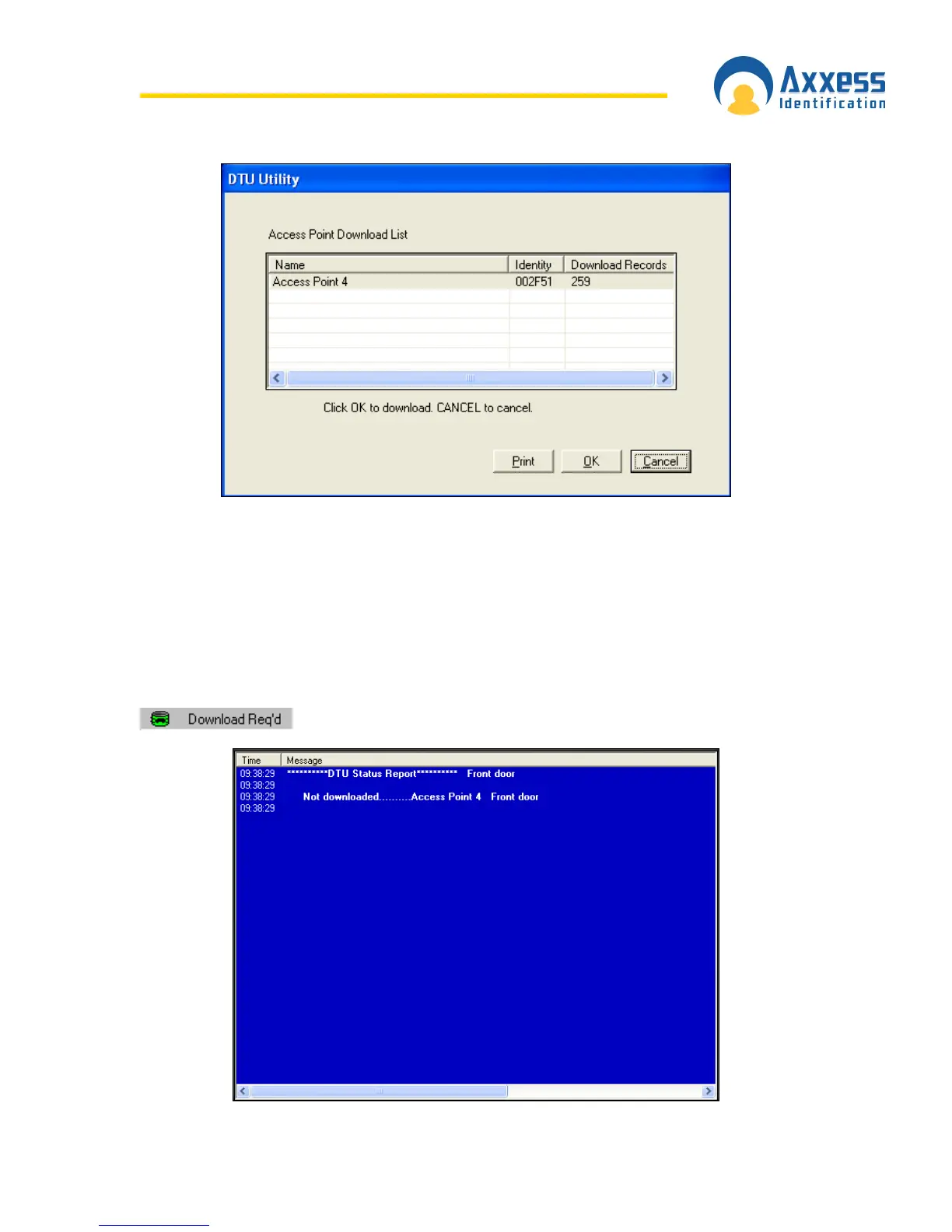

By pressing OK, database changes are automatically downloaded into the DTU. A list of
controllers requiring a download can be printed using the reporting function.
Once the data has been downloaded into the DTU, disconnect and plug the unit into the AX100
controller directly (no cable or power supply is required). The data is now automatically
transferred into the controller. Once downloaded the LED will go to green (completed) or if
flashing green then it is completed but other downloads to controllers are still in the DTU.
Complete downloads to all the controllers until the LED is permanent green. Once complete, go
back to the PC plug in the DTU. This will confirm all the downloads and remove them from the
pending list.
Any outstanding downloads can be viewed by clicking on the green icon.
To Next Page
