RJ45
Connector
DTU
Power Supply
9 or 25 Way to
COM1 or COM2
Download
data to AX100
Upload data
to the DTU
DTU

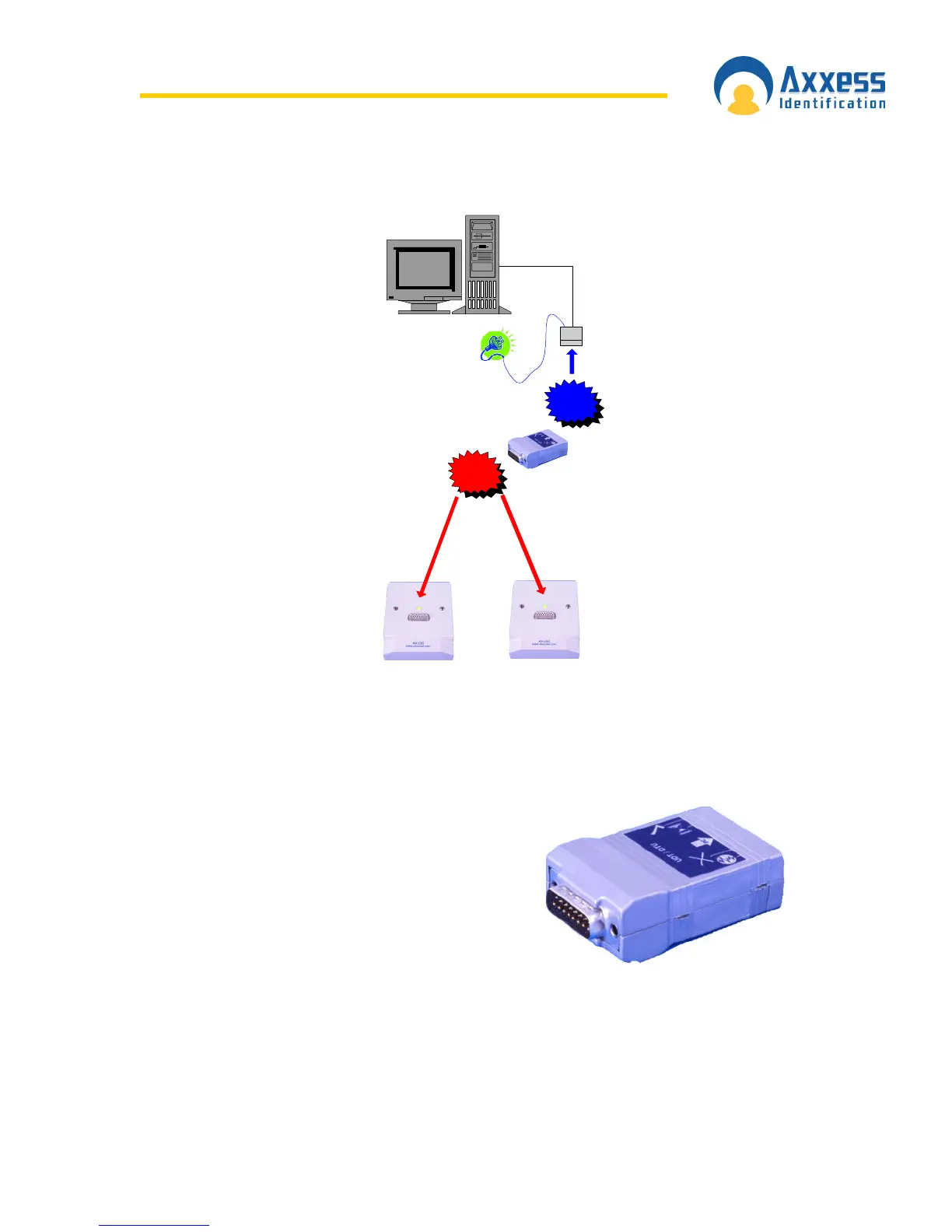

The DTU is fully automatic without any buttons or other
complicated things to do. Connect the DTU to the PC
and once the information is loaded walk to each door
and insert the DTU in the 15 way connector. The DTU
will automatically know which information has to be
downloaded. If the controller is unknown it will
automatically collect all the data and report this back to
the PC when connected. If a door is forgotten the
download required icon remains visible on the main
screen and by double clicking this, a list is shown with outstanding controllers. The list with
outstanding controllers can also be printed off as a reminder which doors require a download.
When a cardholder is added to the database, downloads are only required to those doors the
cardholder requires access.
Add a New Door using a DTU
