www.axxessid.com
Installation & User Guide
AX200 Installation & User Guide – July 2007
117

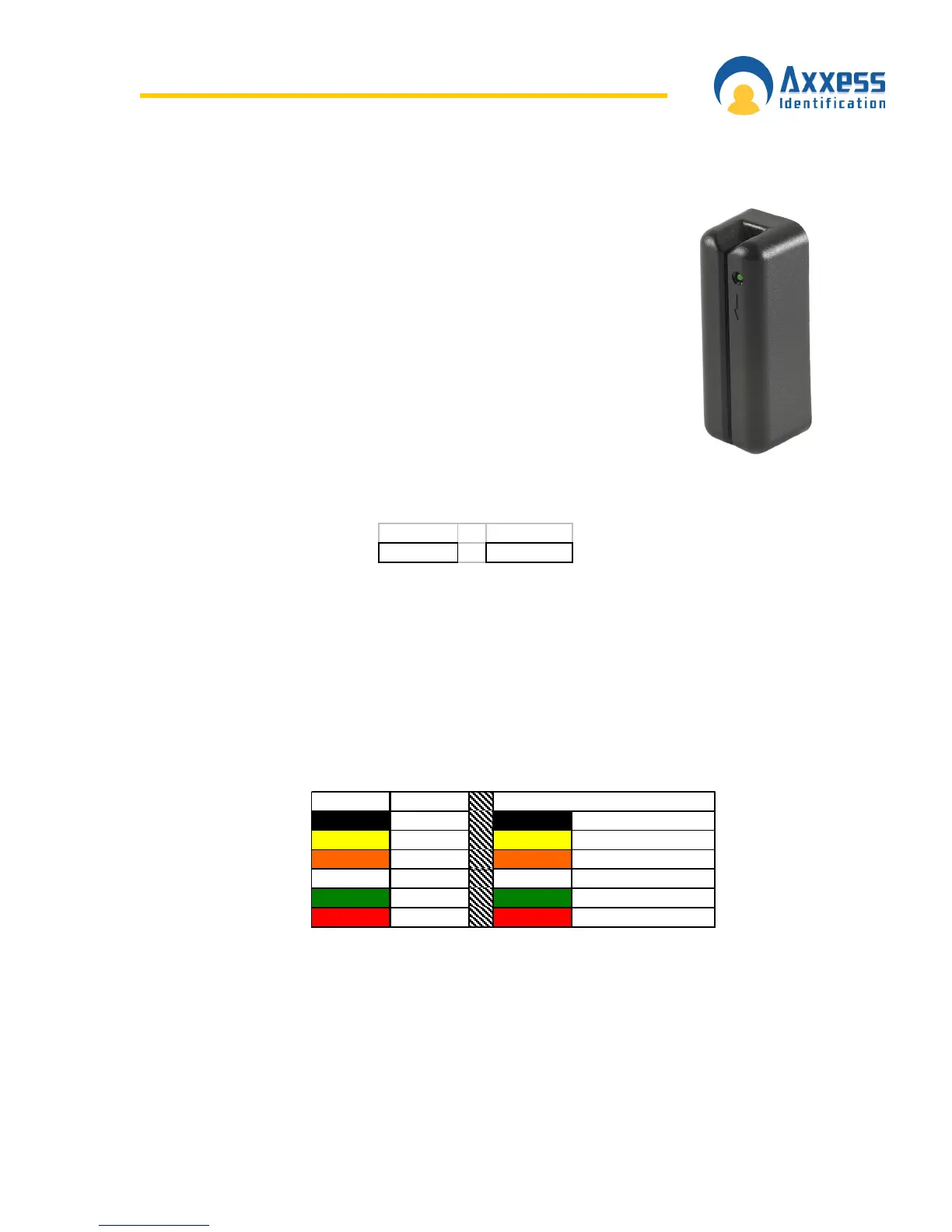

AXM Readers
The AXM magstripe readers provide high performance and reliability for high
security access control. AXM readers are completely weatherproof and
suitable for in-door and out-door applications.
Output Type
• Wiegand 50 bit (Type 5)
Other output formats available for most OEM applications
Magstripe cards supplied by Axxess Identification are encoded in order to work
with 7¯7 format. In this type of encoding the first 7 digits are used to calculate
the card number and the rest makes up the facility code. For example if the
card has a 10 digit number; using the 7 ¯7 format, the first 7 digit will form the
card number and the last 3 digits will form the facility code. If the number of digits is less than 7
then the facility code will be zero.
7
¯
7
0000FFF CCCCCCC
All the standard cards supplied by Axxess ID are recognized by the AX200 software and ready to
be programmed. If you have not purchased your card from Axxess Identification, you may have to
use the card matching function and activate the appropriate card format in order to make the card
valid. Card matching feature is available in the Format & Statistics section. For more information
please refer to the Format & Statistic section on this manual.
Connection Details
The following table explains the connections between the AXM reader and the AX100 controller:
Colour AX100
Black 0V Black 0VDC Signal Gnd
Yellow Buzzer Yellow Buzzer Control
Orange LED Orange Green/Yellow LED
White D1 White Data (Weigand 1)
Green D0 Green Clock (Weigand 0)
Red 12V Red VDC Supply (5-18)
Reader
Yellow and Orange wires are both connected to the LED socket on the AX100 controller.
You may disconnect the yellow lead if you wish to disable the buzzer.
DO NOT connect the purple wire as it is only used for programming.
Blue wire is for card present indication. (DO NOT connect)
