www.axxessid.com
Installation & User Guide
AX200 Installation & User Guide – July 2007
9

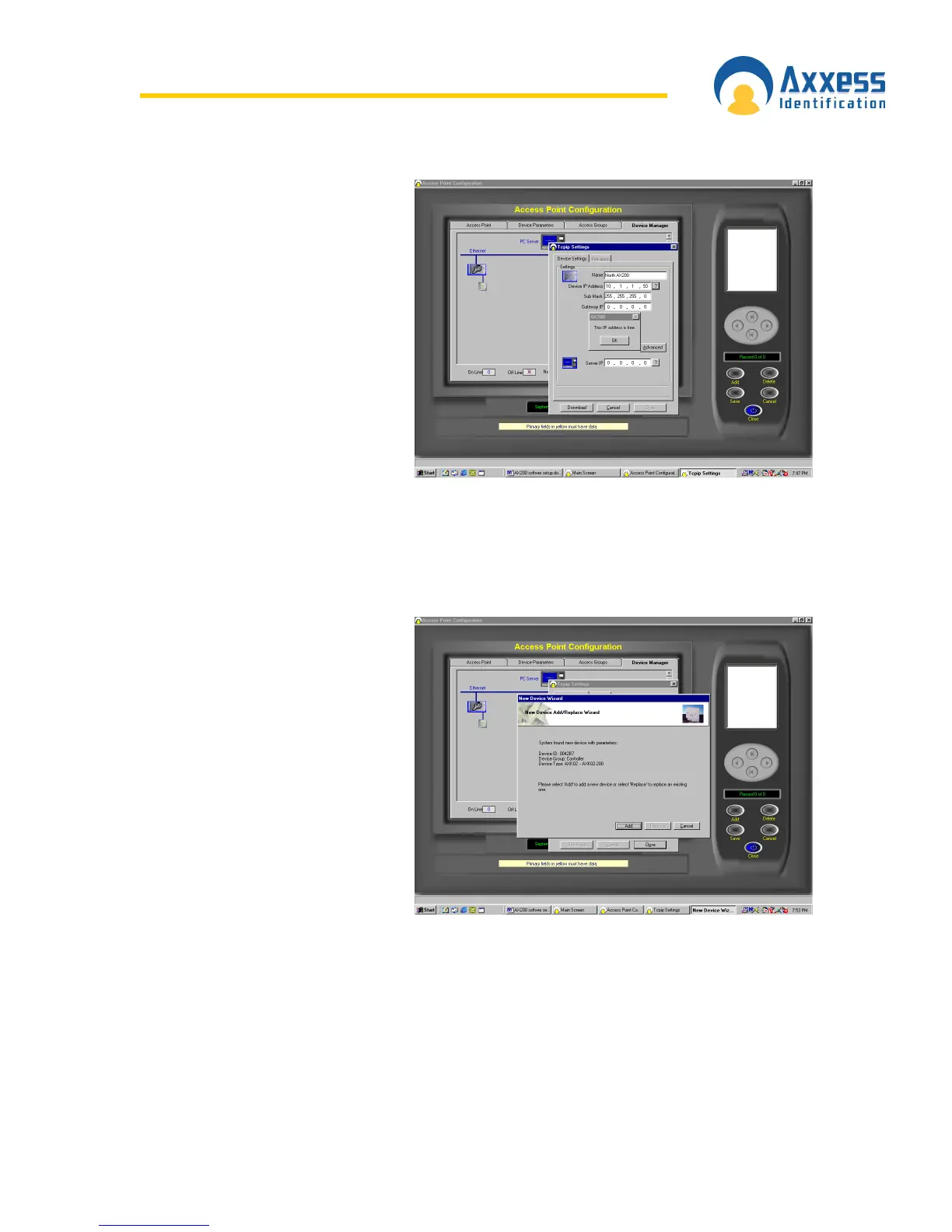

9. Click on the ? at the end of
the Server IP address. The
Server IP address will fill in.
On local area networks (LAN)
the Device IP address and
the Server IP address will
match for the first 3 numbers
(Segment address) and the
last number will be unique to
the AX200.
10. Enter a name for the AX200 and an IP address for the device. To ensure that this IP
address is not already assigned click on the ? next to the device IP address. Do not use
an IP address that is already assigned as this will cause the system not to operate
correctly. Enter the subnet mask and if advised by the network administration manager,
enter the gateway IP address for this device.
11. Click on the download button
and confirm by clicking yes.
After approximately 5
seconds the AX100 add
wizard will appear.
To Next Page
