Azbil 100 Series User Manual

2-4
20
20

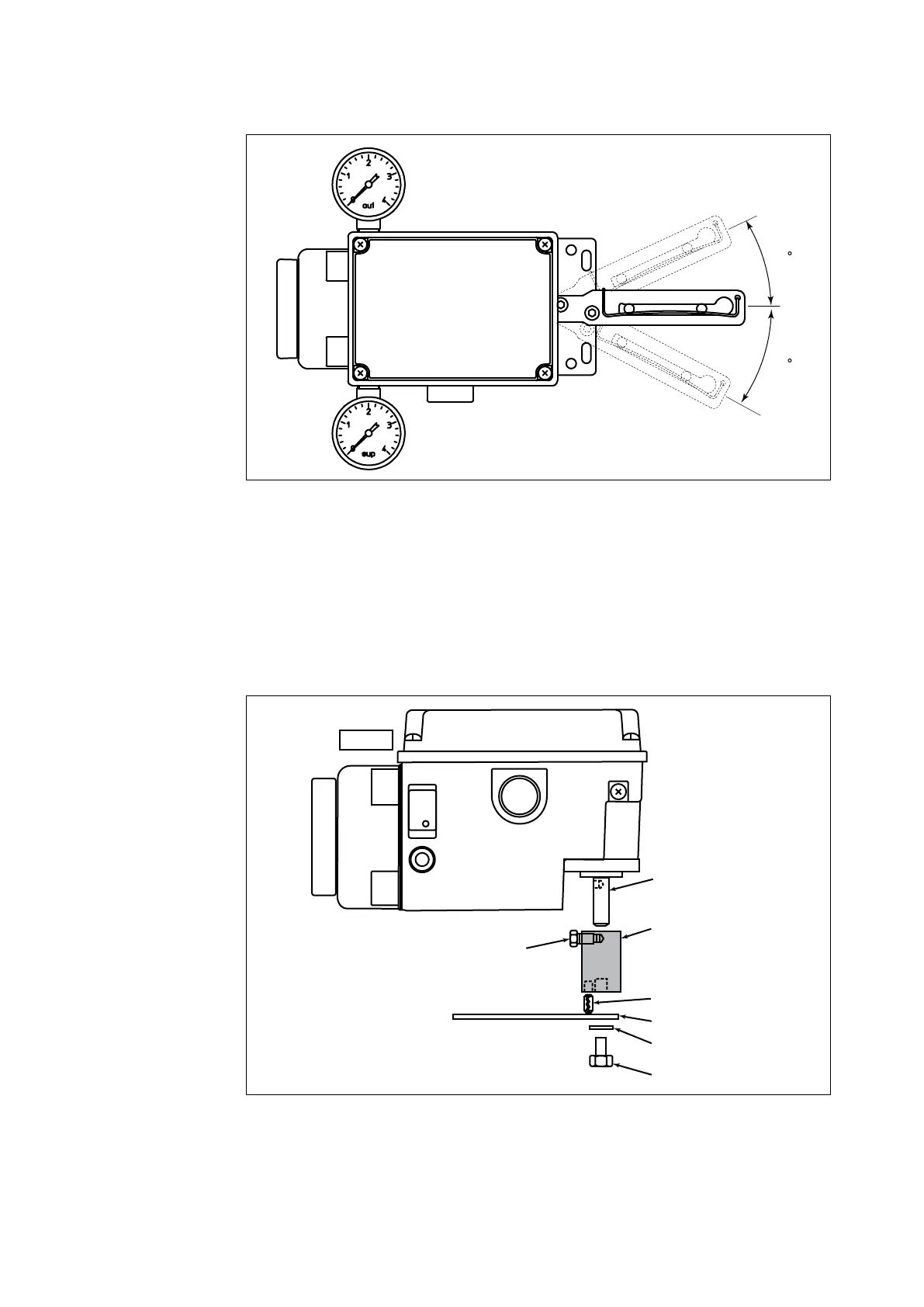

Fig. 2-2. SVP maximum range motion
Rotary motion actuator

Place the coupling onto the angle sensor and fasten it with the bolt.

Insert the spring pin into the hole in the coupling.

Install the feed back lever so that the tip of the spring pin fits into the small hole on it to
meed to the tip of the spring pin.

Fasten the feedback lever using the hex head bolt and washer.
SVP
Bolt
Angle sensor
Coupling
Spring pin
Feedback lever
Washer
Hex head bolt
Fig. 2-3.
