User Manual
Page 48 of 68
you to connect wireless devices using WPS. The wireless router provides two
types of WPS connection modes, including PIN and Button.
- PIN

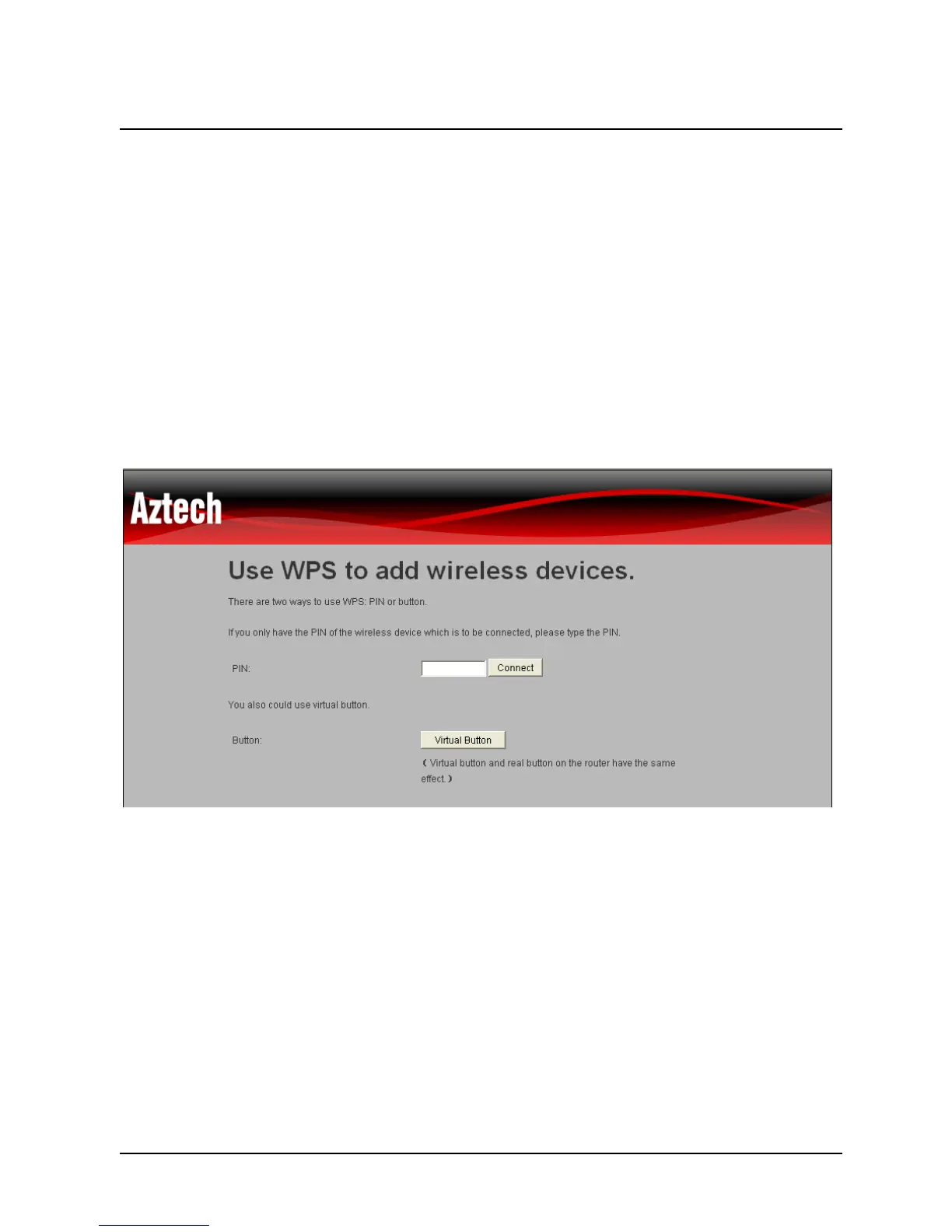

View the PIN code on the wireless client first, for example, 12345678. Enter the
PIN code of the wireless client to the PIN field on the wireless router (see the
following figure), and click the Connect button within 2 minutes. After clicking the
Connect button, the wireless router will automatically connect to the wireless
client.
- Button
Click the Virtual Button on the page above or press the WPS button for about 1
second on the rear panel of the wireless router. Within 2 minutes, press the WPS
button on the wireless client, and then the wireless router will automatically
establish the connection with the wireless client.
Parameters
Enable Wireless: Enable or disable the wireless function.
SSID: The network name. The maximum SSID character length is 32 characters.
