Unit Elements

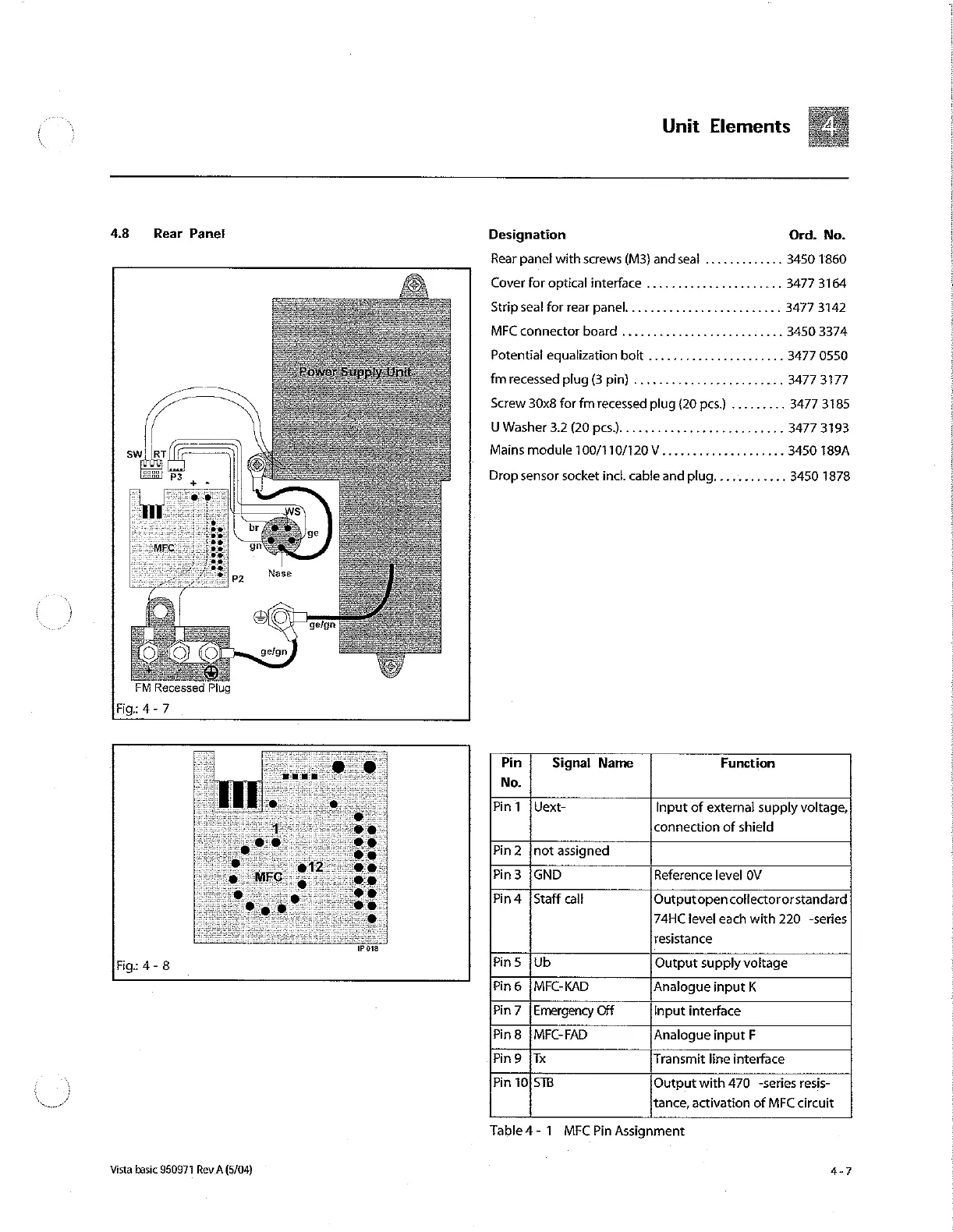

4.8 Rear Panel
OO (O
FM Recessed Plug
Fig: 4-7
Fig: 4- 8
018
Vista basic 950971 Rev A (5/04)
Designation Ord. No.
Rear panel with screws (M3) and seal ............. 3450 1860
Cover for optical interface ...................... 3477 3164
Stripsealforrearpanel......................... 3477 3142
MFCconnectorboard.......................... 3450 3374
Potential equalization bolt ...................... 3477 0550
fm recessed plug (3 pin) ........................ 3477 3177
Screw 30x8 for fm recessed plug (20 pcs.) ......... 3477 3185
UWasher3.2(20pcs).......................... 34773193
Mains module 100/110/120 V. .. + 3450 189A
Drop sensor socket incl. cable and plug... .. 3450 1878
Pin Signal Name Function
No.
Pin 1 }Uext- Input of external supply voltage,
connection of shield
Pin 2 ¡not assigned
Pin3 {GND Reference level OV
Pin 4 {Staff call Outputopen collector or standard
74HC level each with 220 -series
resistance
Pins ¡Ub Output supply voltage
Pin 6 IMFC-KAD Analogue input K
Pin 7 | Emergency Off Input interface
Pin8 IMFC-FAD Analogue input F
Pin9 (Tx Transmit line interface
Pin 10/STB Output with 470 -series resis-
tance, activation of MFC circuit
Table 4 - 1 MFC Pin Assignment
