Unit Elements

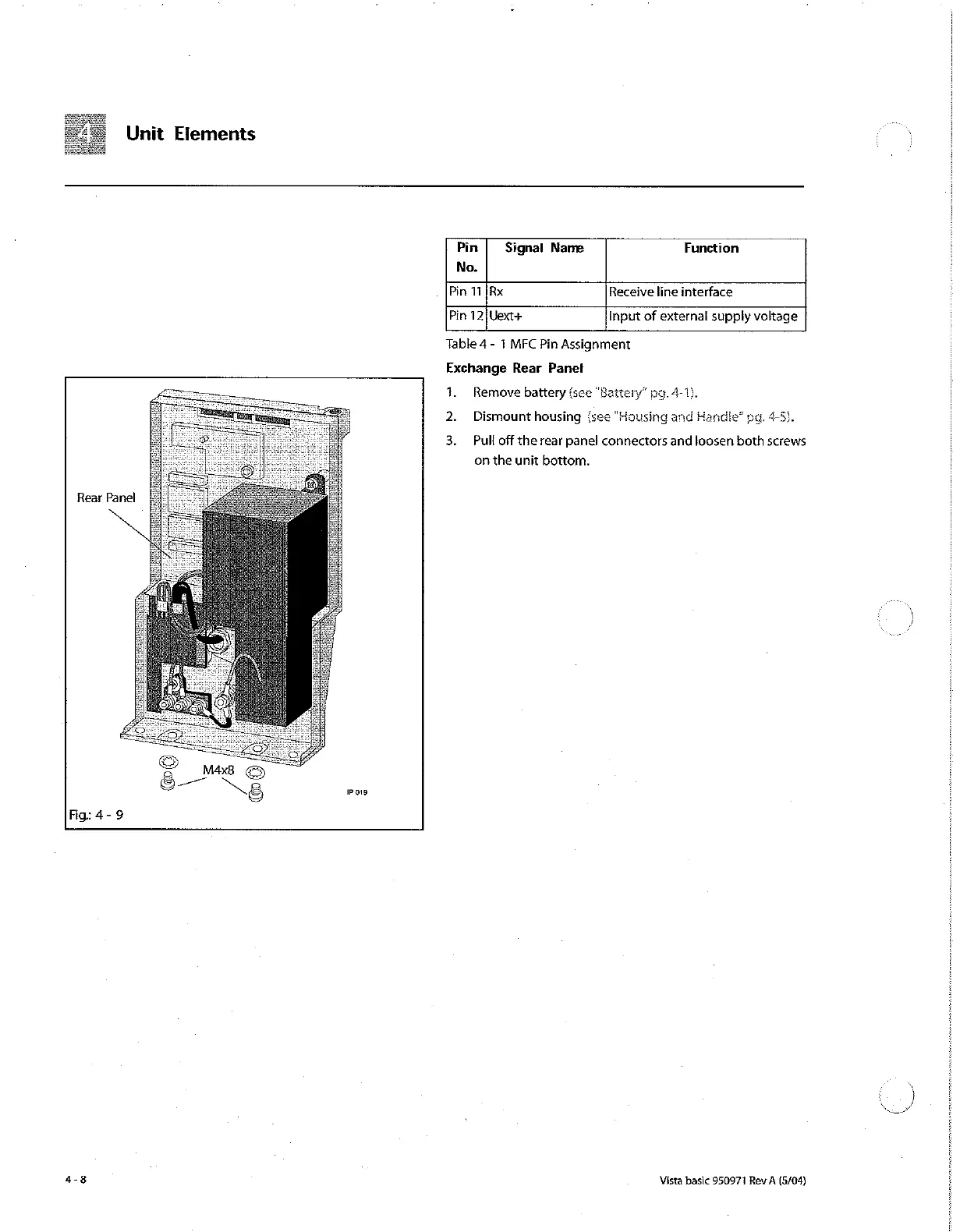

Fig: 4-9
Rear Panel
© x! 8 — $
Pois
Pin | Signal Name Function
No.
Pin TI İRx Receive line interface
Pin 12} Uext+ Input of external supply voltage
Table 4 - 1 MFC Pin Assignment
Exchange Rear Panel
1. Remove battery (see “Battery” pg. 4-1).
2. Dismount housing (see “Housing and Handle” pg, 4-5).
3. Pull off the rear panel connectors and loosen both screws
on the unit bottom.
Vista basic 950971 Rev A (5/04)
