Unit Elements

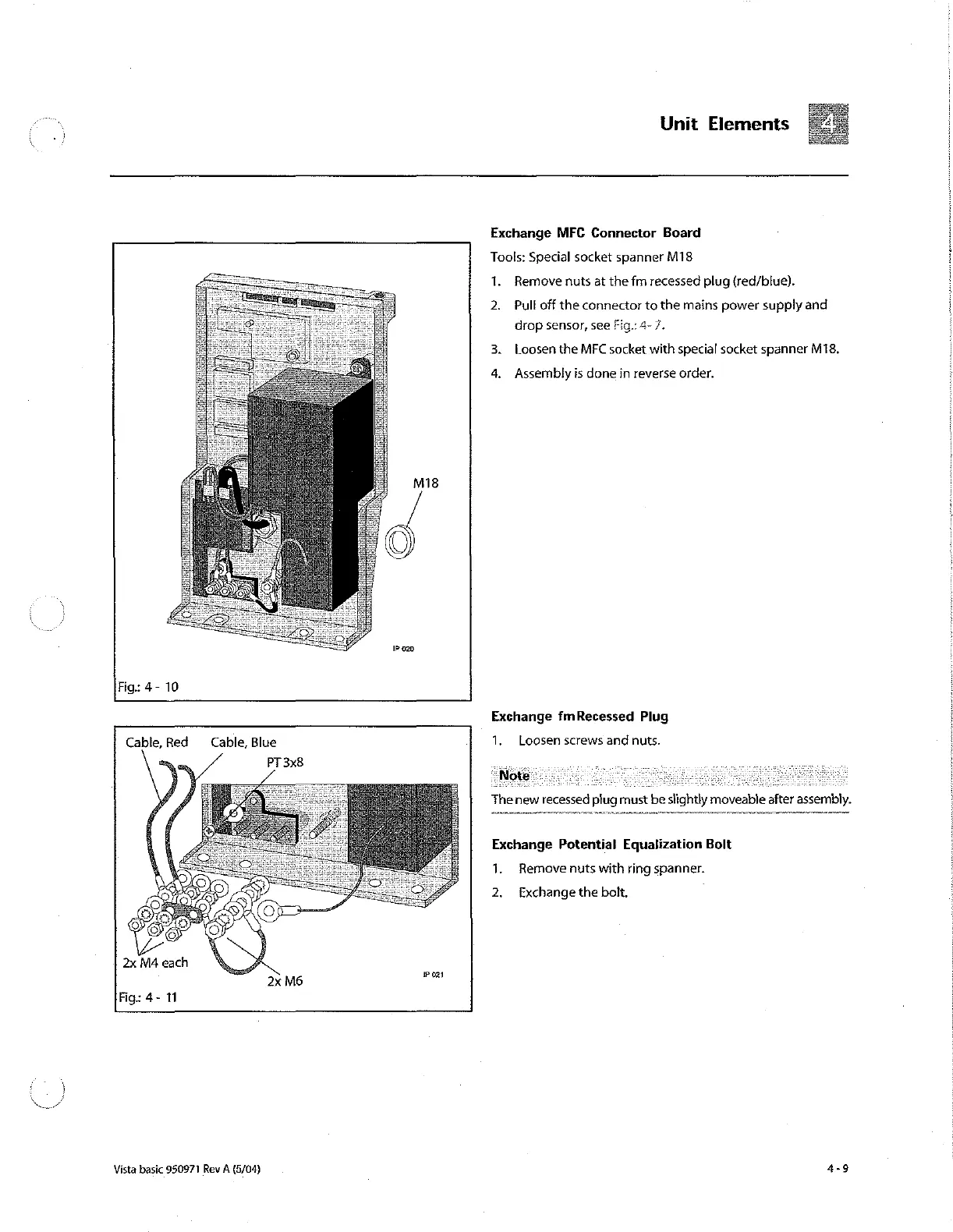

Exchange MFC Connector Board
Tools: Special socket spanner M18
1. Remove nuts at the fm recessed plug (red/blue).
2. Pull off the connector to the mains power supply and
drop sensor, see Fig.: 4-7.
3. Loosen the MFC socket with special socket spanner M18.
4. Assembly is done in reverse order.
Mi8
1P 020
Fig: 4- 10
Exchange fmRecessed Plug
Cable, Red Cable, Blue 1. Loosen screws and nuts.
PT 3x8
The new recessed plug must be slightly moveable after assembly.
Exchange Potential Equalization Bolt
1. Remove nuts with ring spanner.
2. Exchange the bolt.
©
© ©
2x M4 each
IP 021
2x M6
Fig: 4- 11
Vista
basic
950971
Rev
A
(5/04)
4-9
