3.4 Materials - Shipment Content
PD Standard Accessories
These items will be included in the scope of deliver of every PD unit (PD30-E, PD60-2, PDTD60-2, PD90-2, PDTD90-2,
PD120-2 and PDTD120-2). The
1
markingaticlesthatarecountryspecic.
Cables and its accessories (earthing cables, communication cables, connection cables, clamps)

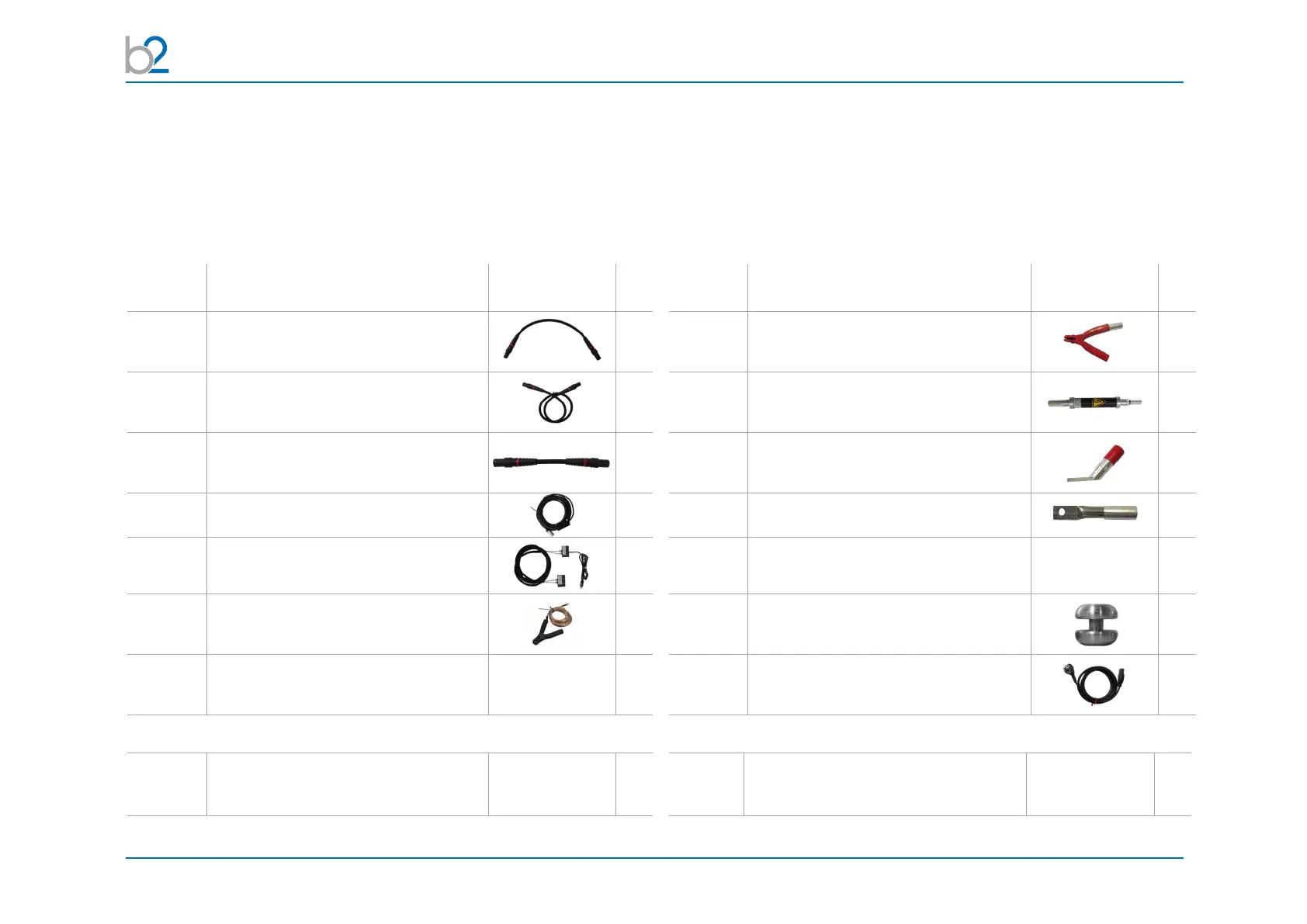

Art. No. Item Picture pcs Art. No. Item Picture pcs
GH0550 PDTD MC14 DUT Test Lead 100 kV 0.7 m
MC14
1 GH0580 Red Clamp 600 A with MC14 mm Socket 1
GH0551 PDTD MC14 DUT Test Lead 100 kV 1.6 m
MC14
1 GH0581 PD Impedance 3,9 kOhm
MC Male - MC Female (not with HVA54-5)
1
GH0567 PDTD MC14 DUT Test Lead 100 kV 0.3 m
MC14
1 KES0105 Angle Bracket Connector 14 mm 1
GH0586 PD60-CC USB Lead 10 m
1 KES0209 MC14 Socket Connection for Corona Shield 1
GH0624 Opto Converter USB-LWL-RS232
1 KES0274 Ground Connection Screw Clamp
(G-clamp)
1
GH0690 EarthLead2m16mm²attransparent
MC14/M8
1 KMD0081 Corona Shield Two-Part, Min. Clearance
Distance = 10 mm
2
GH1009 EarthLead5m16mm²attransparent
M6/Clamp
1 XKEK0001
1
Power Cord EF/C13 10 A 3 m black 1
Software
GH0900 b2 Suite Software v1.8 1 GS0003 b2 Suite Dongle Complete
(Basic, PD and TD Diagnostics)
2
