General Description
© b2 electronic GmbH DHV0088 30

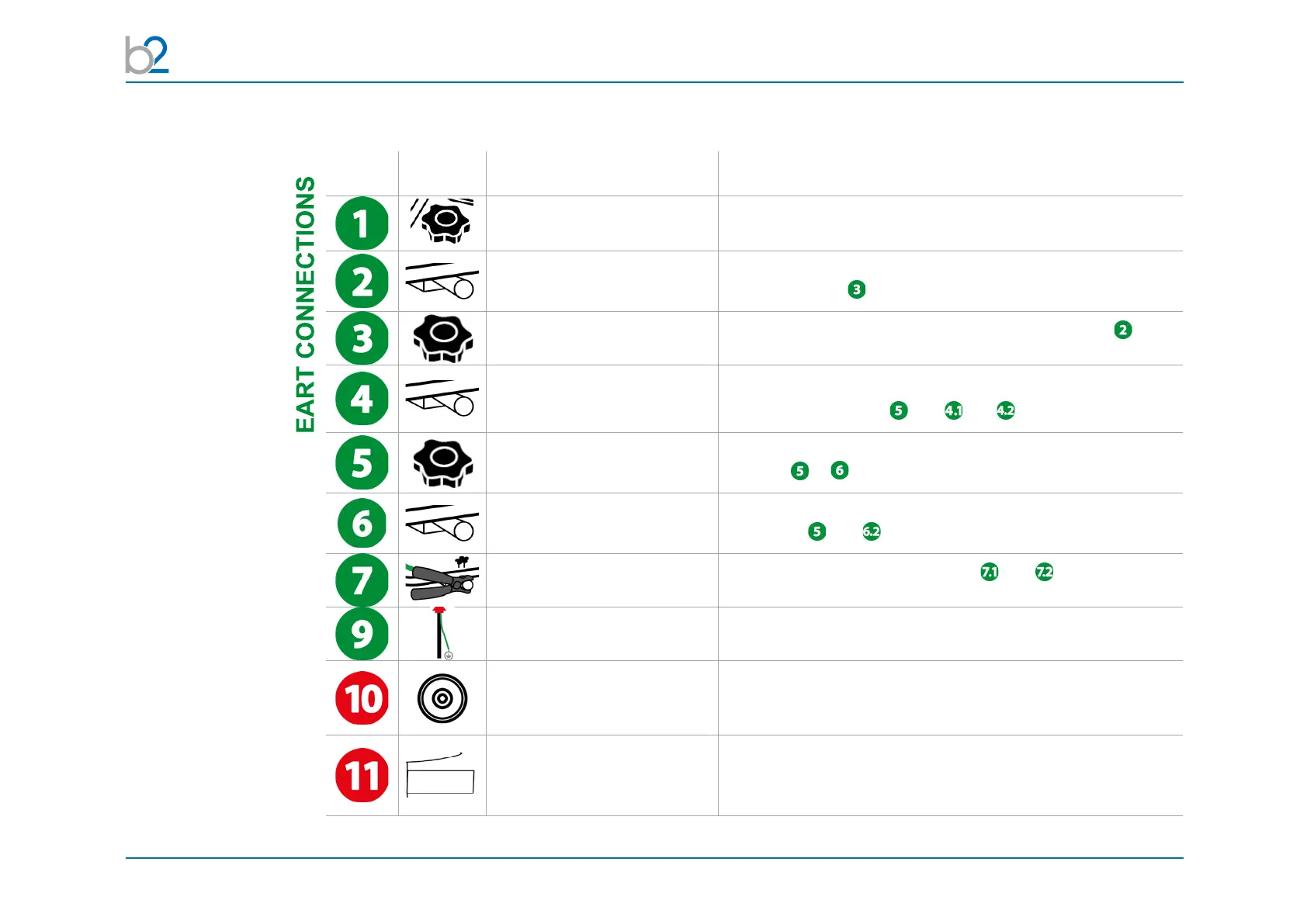

3.7 Layout & Cable Connection - Overview
Nr. Picture Name Description
HVA earthing connection Earth connection of HVA Test Set
(main earth)
PD-2 Filter earthing connection PD-2 Filter earth via 14 mm MC contact (recommended) same
earth potential as
PD-2 Filter earthing connection Earth connection of PD-2 Filters same earth potential as
PD-2 CC earthing connection PD-2 CC earth via 14mm MC contact (recommended)
same earth potential as also and
PD-2 CC/ PD30-E
earthing connection
Earth connection of PD-2 CC / PD30-E same earth potential as
PD-2 CC or PD30-E
PD30-E earthing connection PD-2 CC earth via 14mm MC contact (recommended) same earth
potential as also
HV Cable earthing connection HV cable earth connection via clamp also and
DUT earthing DUT earth connection
HV output connector HVA
Serves as connection point from the HVA to the PD-2 Filter /
PD30-E via HV test lead.
• Screw HV test lead into the HVA output connector
HV connector
PD-2 Filter
Serves as connection point from the PD-2 Filter to the HVA or
from Filter to PD-2 CC via HV test lead.
• Plug HV test lead into the HV connector
