General Description
© b2 electronic GmbH DHV0088 31

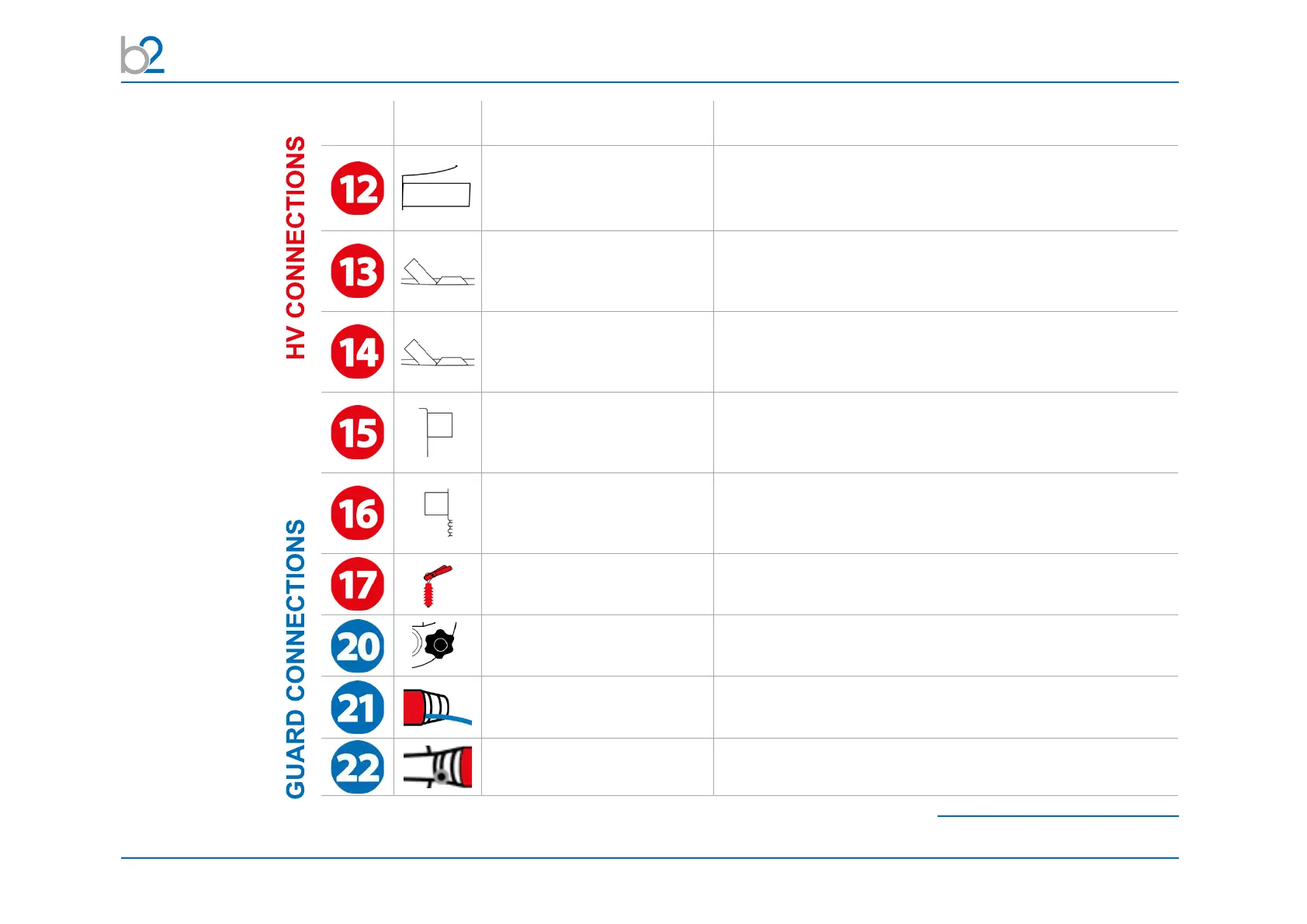

Nr. Picture Name Description
HV connector
PD-2 Filter
1
Serves as connection point from the PD-2 Filter to the PD-2 CC
or from HVA to the PD-2 Filter via HV test lead.
• Plug HV test lead into the HV connector
HV input connector PD-2 CC
Serves as connection point from thePD-2 CC to the PD-2 Filter
via HV test lead.
• Plug HV test lead into the HV output connector
HV output connector PD-2 CC
Serves as connection point from the PD-2CC to the DUT via HV
test lead.
• Plug HV test lead into the HV output connector
HV input connector PD30-E
Serves as connection point from the PD30-E to the HVA via HV
test lead.
• Plug HV test lead into the HV output connector
HV output connector PD30-E
Serves as connection point from the PD30-E to the DUT via HV
test lead.
• Plug HV test lead into the HV output connector
HV connection at DUT Serves as connection point from the DUT to the HV test lead.
PD Guard Connection Connection for Guard (leakage current detection and correction)
on PD coupling capacitor
PD HV Cable –
Guard Connection
Cable for Guard correction
Guard Connection on HV HV connection for Guard cable (M6 thread in HV cable plug) if no
leakage current correction needed
1 Can be used as input or output connector
