Output Mode Characteristics
Sheath Test
Suitable for Sheath Test
• Duration is user defined
• Unmax 10 kV
Sheath Fault
Location Mode
Suitable for Sheath Fault Location
• Duration is user defined
• Pulse user defined
(1:3/4 s, 1:5/4 s, 1:5/6 s, 1:9/6 s)

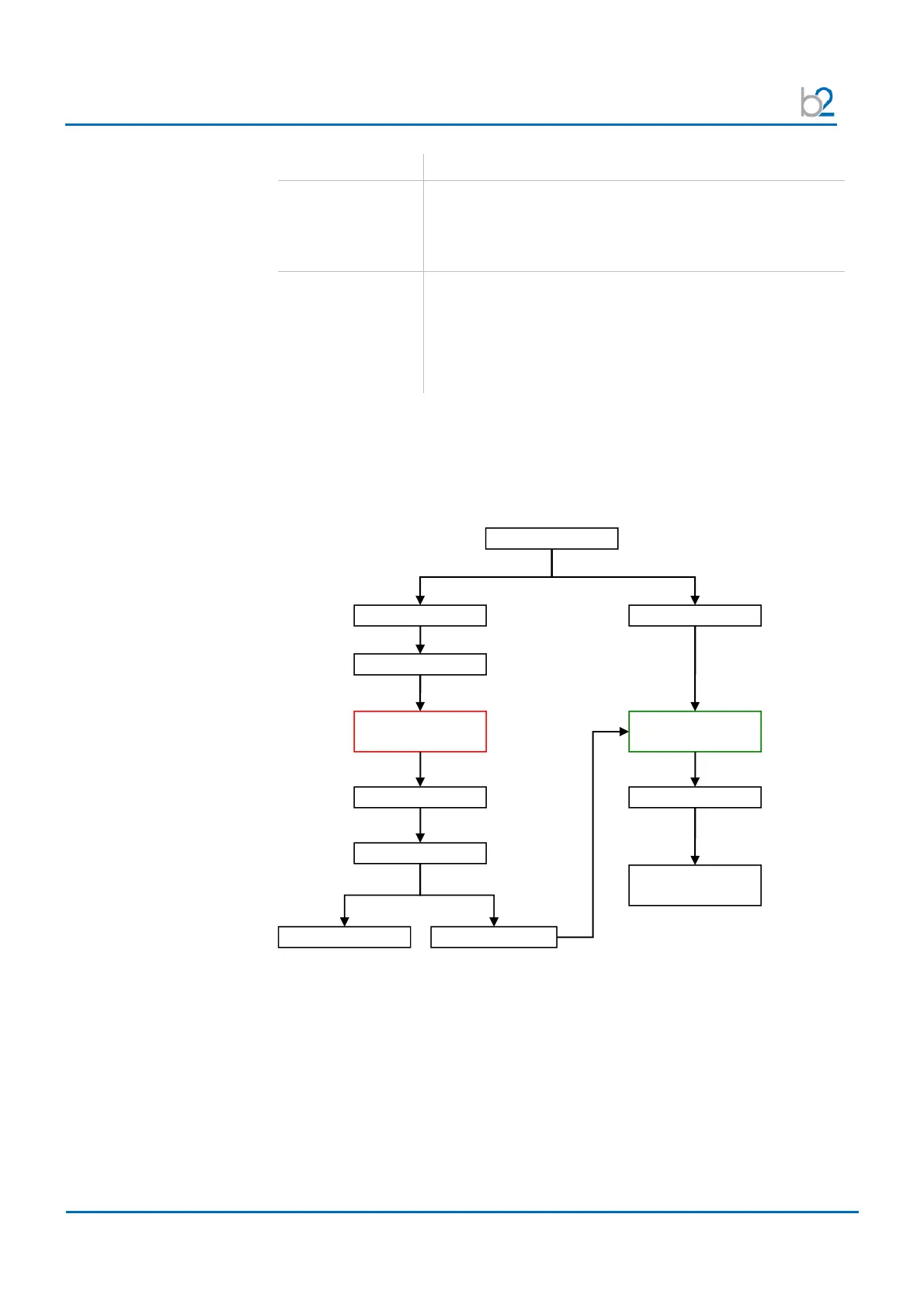

Arc Management Modes
If a fault is detected during a HV test, the arc management mode determines
how the failure is managed. The “Burn on Arc” mode will condition the fault
whereas the “Trip out on Arc” mode will immediately switch HV off.
Fault detected
Dwell time Starts
Dwell Time Ends
DUT energizes
Fault detected
Fault conditioned
DUT discharges
HV automatically
OFF
Tripping time
recorded
HV still
ON
