BAD BOY TRACTOR

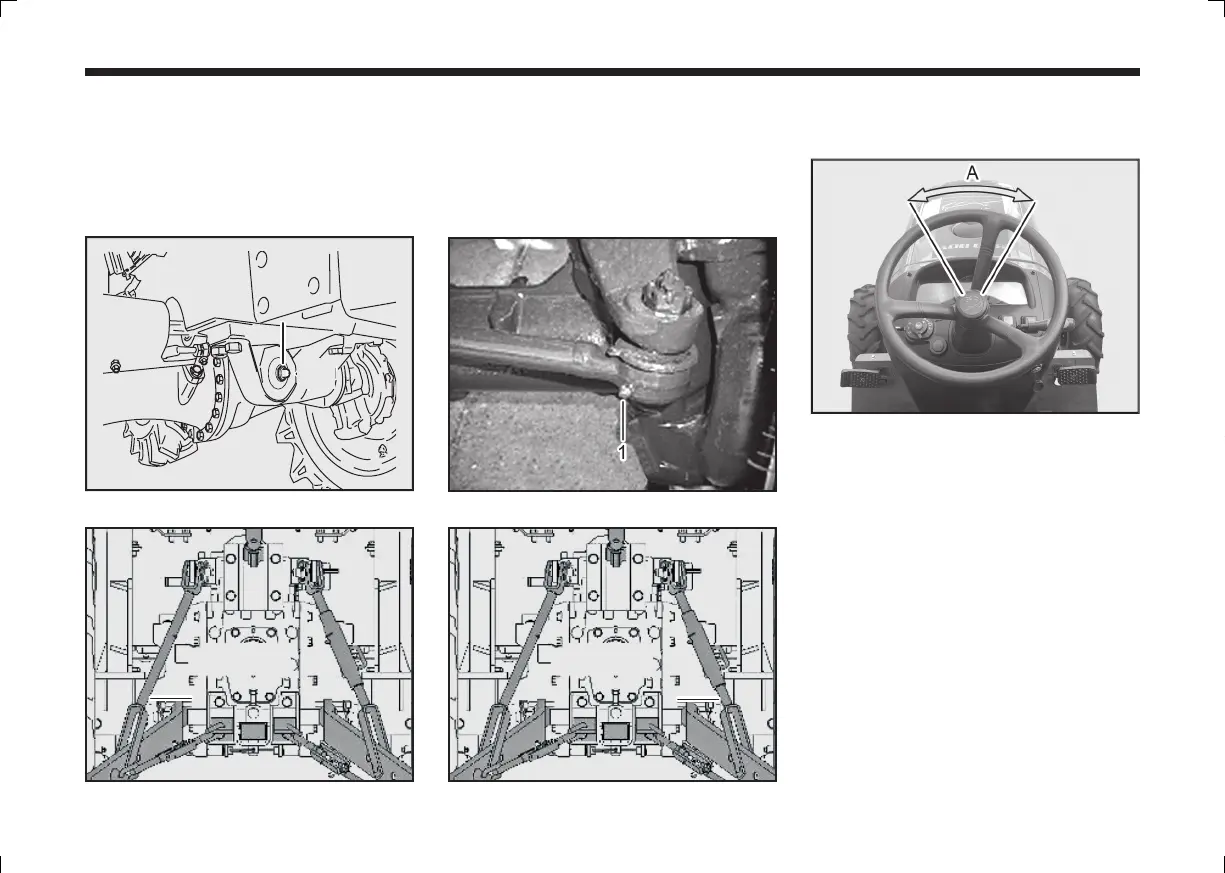

GREASING
Apply grease every 50 hours. Check the relevant parts before starting work
everyday and add grease as necessary. After working on a watered farm,
make sure to apply grease to the tractor.
(1) Front Axle Support (1) Tie Rod LH / RH
(1) Lift Link (R) (1) Lift Link (L)
1
1
1
STEERING WHEEL
When the steering wheel is turned
lightly, there should be free play
0.8~2.0 in. If the extent of the free
play exceeds this range, the steer-
ing wheel may feel heavy or the trac-
tor may not move straight. If the free
play is not normal, have it fixed at
your nearest authorized dealer.
(1) Steering Handle
(A) Free Play : 0.8~ 2.0 in (20.3 ~50.8 mm)
