Bad Boy 2024H 2021 - Fan Belt; Toe-In

6
-
18
BAD BOY TRACTOR

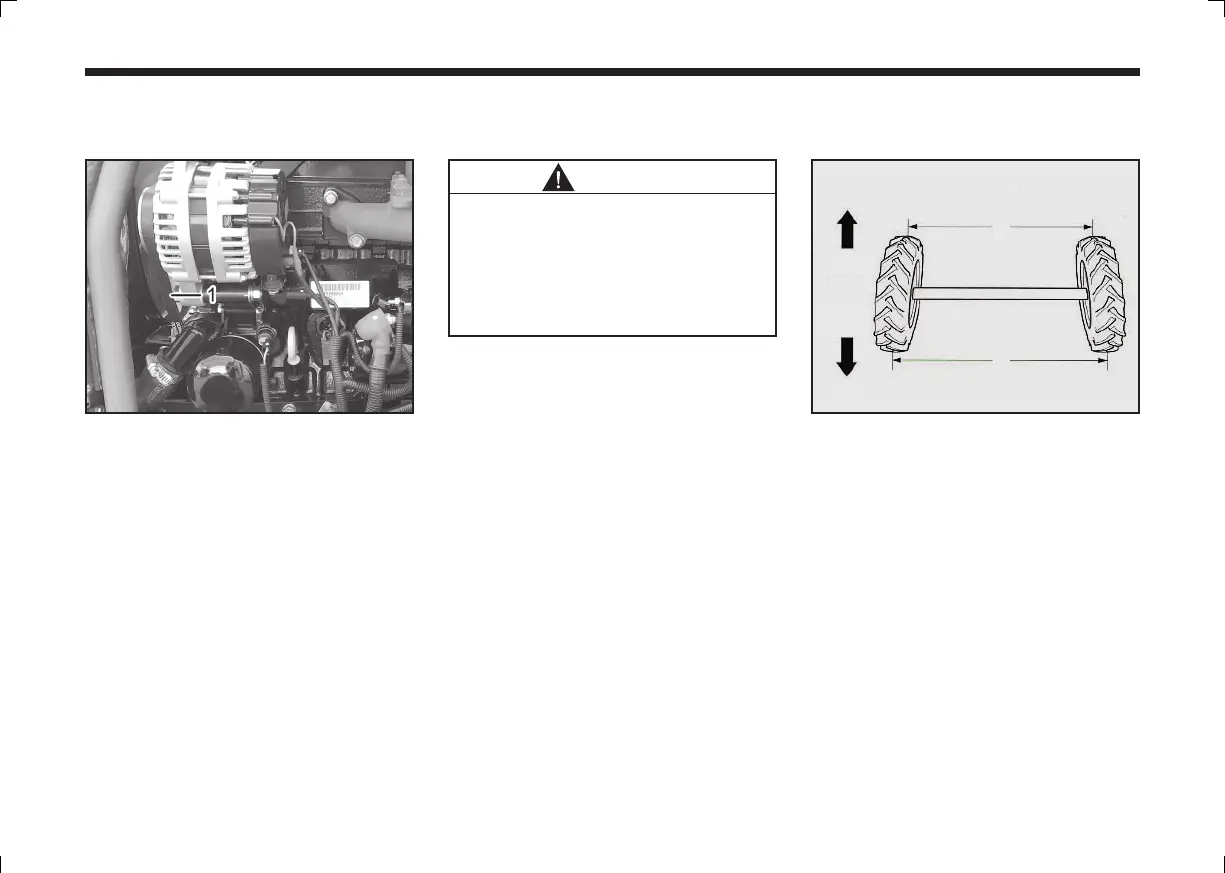

FAN BELT
Open the engine hood and press the
middle of fan belt with finger to see
if the belt sags about 0.4~0.6 in or
if there is any damage to the belt. If
the sagging is not correct, loosen the
generator bolt and move the gener-
ator to adjust the tension of the fan
belt. If the fan belt still slips after the
generator is moved to the maximum,
replace the belt with a new one.
New belts must be inspected after 50
hours of use.
(1) Fan Belt
•
Carry out inspection or main-
tenance after the engine is ful-
ly cooled down.
[Otherwise]
There is a risk of getting burnt.
CAUTION
B
A
► CHECKING
If the toe-in is not properly aligned,
the steering wheel may be uncon-
trollable or the tractor may produce
an abnormal vibration. Measure the
distance A and the distance B of the
front wheels and see if the different
between the two measurements is
0.16~0.3 in (4~8 mm).
A
B
F
R
(F) Front (R) Rear
TOE-IN
