BAD BOY TRACTOR

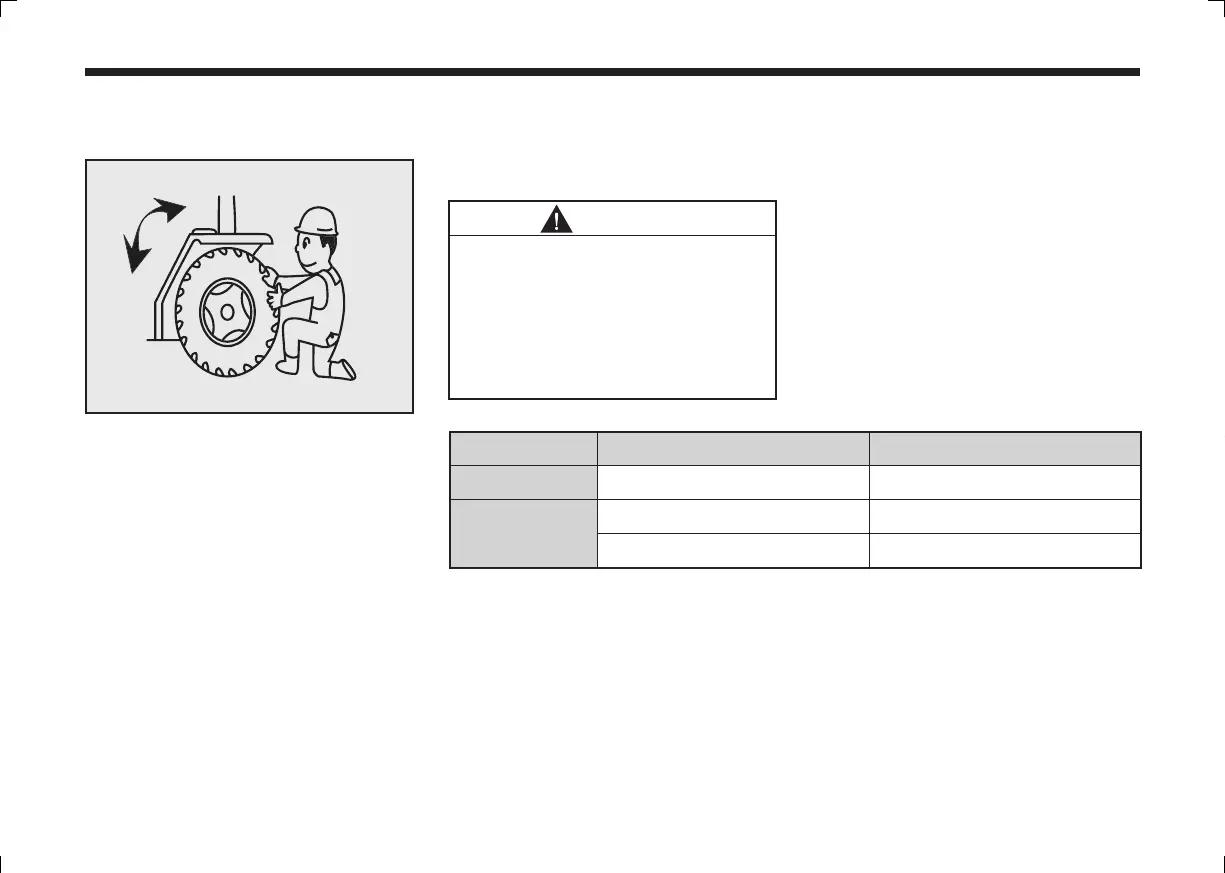

ADJUSTING WHEEL TREAD
Adjust the wheel tread depending on
the type and condition of the work.
Also, increase the wheel tread when
working on a slope or towing.
1. Pull the parking brake, block
the front wheels, and raise the
body with a jack to make the rear
wheels separate from the ground.
2. Be sure to make adjustments al-
ternatively between the left and
right wheels.
DESCRIPTION TIGHTENING TORQUE
FRONTWHEEL Bolts on wheels and axle 130 (18 kgf.m)~ 152 lb-ft (21 kgf.m)
REAR WHEEL
Bolts on wheels and axle 130 (18 kgf.m)~ 152 lb-ft (21 kgf.m)
Bolts on rim and disk of wheels 188 (26 kgf.m)~ 224 lb-ft (31 kgf.m)
►TIGHTENING TORQUE
•
When changing tires, please
use a hoist or strong sup-
port and make sure the tractor
does not move.
[Otherwise]
There is a risk of death or injury.
WARNING
