ESM-UM-03099-EN-02
Display Screens

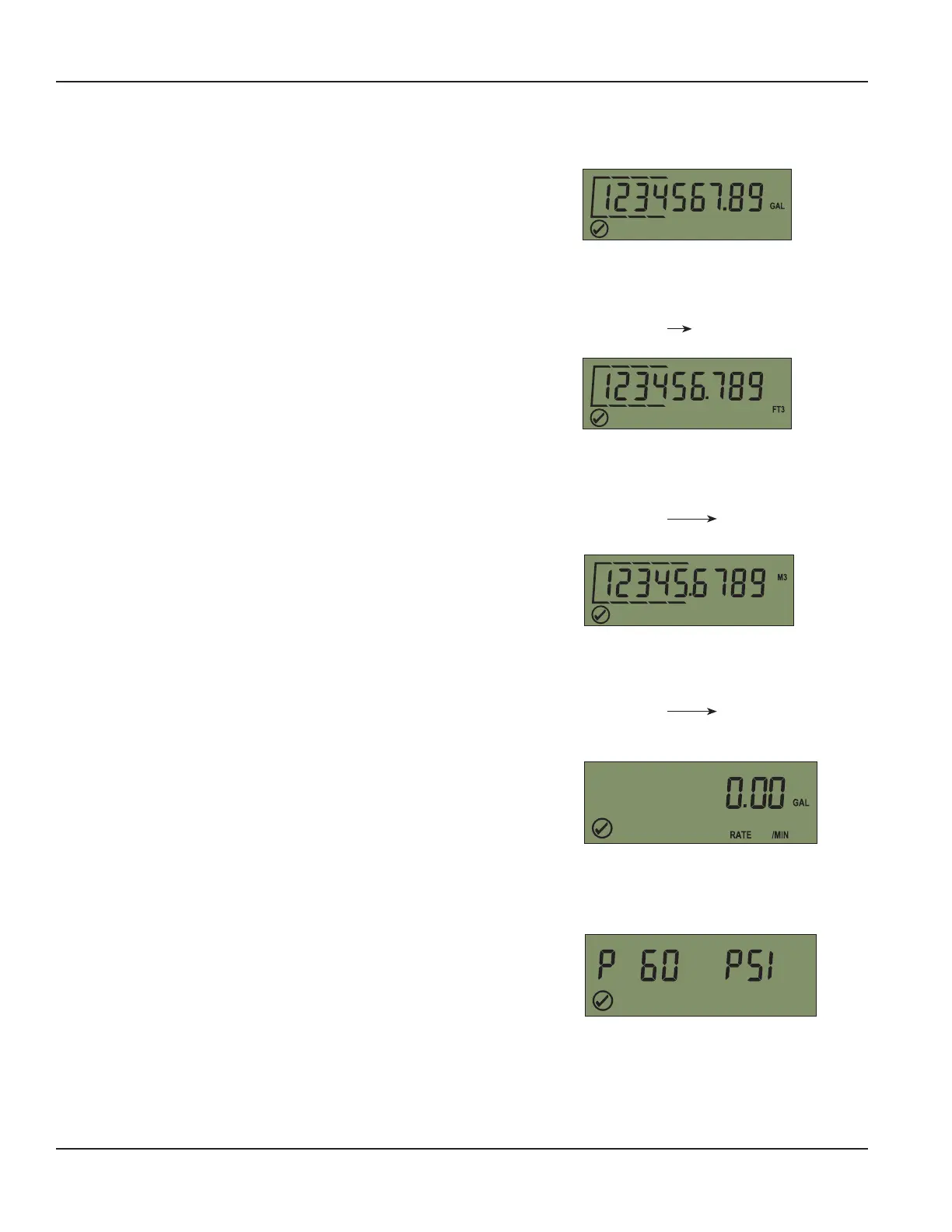

Total Consumption Screen
Gallons
The total consumption screen shows all nine digits, including
leading zeroes and a decimal point.
The displayed value is the sum of the forward flow minus
the reverse flow. The display also includes indicator lines
above and below the digits to represent the typical utility
meter reading (electronic equivalent of white and black
number wheels on mechanical registers).
Totalized flow displays up to 10 million gallons with a
resolution of 0.01 gallons, 1 million cubic feet with a
resolution of 0.001 cubic feet, or one thousand cubic meters
with a resolution of 0.0001 cubic meters.
Unit of measure and resolution are factory programmed for
the meter. Options are gallons, cubic feet and cubic meters.
Meter reading to the nearest?
100th gallon = 1234567.89
10th gallon = 1234567.8
1 gallons = 1234567
10 gallons = 123456
100 gallons = 12345
Typical Billing Units 1000 gallons = 1234
Cubic Feet
The examples show typical displays for the three different
units of measure.
Meter reading to the nearest?
1000th ft
3
= 123456.789
100th ft
3
= 123456.78
10 ft
3
= 123456.7
1 ft
3
= 123456
10 ft
3
= 12345
Typical Billing Units 100 ft
3
1234
Cubic Meters
Meter reading to the nearest?
10000th m
3
= 12345.6789
1000th m
3
= 12345.678
100th m
3
= 12345.67
10th m
3
= 12345.6
Typical Billing Units 1 m
3
= 12345
10 m
3
1234
Rate of Flow Screen
Rate of flow is factory programmed in gallons per minute. The LCD shows
both the unit of measure and rate of flow. The rate of flow screen also
serves as the flow indicator. The rate of flow display is shown without
leading zeros. When the rate of flow screen is displayed, it is updated
every two seconds.
Figure 6: Rate of flow screen
Pressure Screen*
Displays current water pressure. The pressure sensor is rated to a
maximum psi of 150. If the maximum operating pressure is exceeded,
P 999 PSI (or P 99.9 bAr) displays until pressure is back within the
specified range. If the pressure sensor is damaged, P Err PSI (or
P Err bAr) will display.
OTE: N Meters operating above 175 psi are operating outside
approved specifications.
*When meter is equipped with optional integrated pressure sensor and used in
conjunction with ORION Cellular LTE-M, LTE-MS or LTE endpoints, pressure data and alarms
are sent as part of the encoder message and surfaced in BEACON AMA.
R
Figure 7: Pressure screen
Operations
Page 10 May 2021
