Temperature Screen*
Displays current water and ambient temperature. If the meter is in active
mode and detects an empty pipe, water temperature displays ErrF
(or ErrC). If the meter is in storage mode and detects an empty pipe,
water temperature displays – – – F (or – – – C). Ambient temperature
is displayed in all modes. Water temperature is not reported in storage
mode. Temperature data begins reporting in transition mode when there
is a full pipe.
*When used in conjunction with ORION Cellular LTE-M, LTE-MS or LTE endpoints,
temperature data is sent as part of the encoder message and surfaced in BEACON AMA.

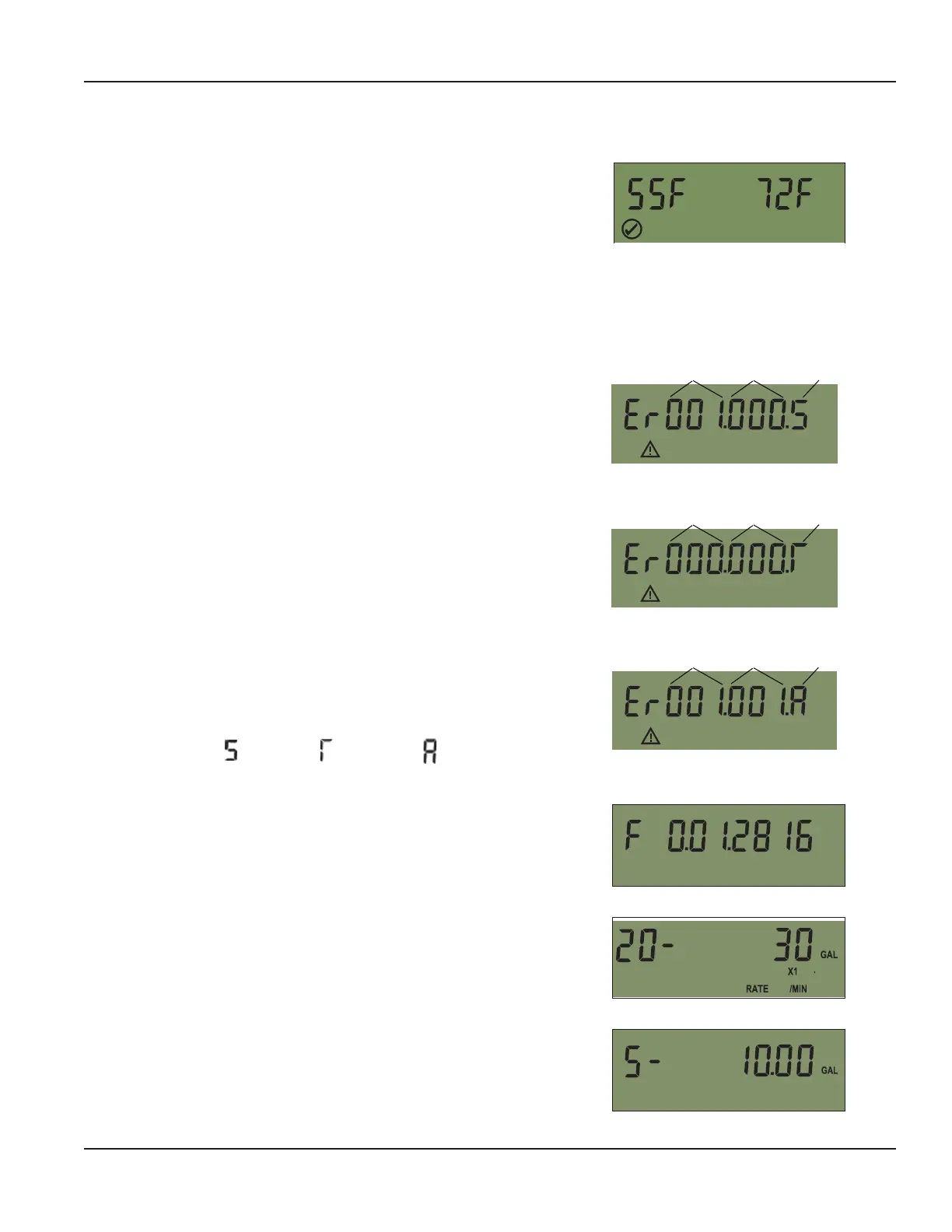

Figure 8: Temperature screen
Alarm and Operating Mode Screen
Displays alarm condition and meter operating mode. This screen is only
visible in active mode if an alarm is detected. Screen is always visible in
storage and transition mode.
Display format: ErXXX.YYY.Z
Position 1 Position 2 Position 3
Figure 9: Alarm and operating mode screen in storage mode
XXX Position 1
First set of 3 characters displays an alarm code that has
occurred. See duration of each individual alarm in alarms
chart on page 13.
YYY Position 2
Second set of 3 characters displays an alarm code that is
currently active. The alarm is stored in this position until
reported to the endpoint.
• Up to 15 min with ORION Cellular
Position 1 Position 2 Position 3
Figure 10: Alarm and operating mode screen in transition mode
• Up to 1 hr with ORION SE/ME
• Up to 35 days if not connected to an ORION endpoint
Alarm code reappears if condition is still present
or reoccurs and resends message to endpoint.
Z Position 3 The character in the last position is the code for the meter
operating mode. The meter has three operating modes:
storage (Figure 9), transition (Figure 10) and active mode
(Figure 11).
Storage Transition Active
Also see "Meter Operating Modes" on page 6.
Position 1 Position 2 Position 3
Figure 11: Alarm and operating mode screen in active mode
Firmware Version Screen
Displays current meter firmware version.
Figure 12: Firmware version screen
4-20 mA Set Point Screen
Displays for meters with 4-20 mA output. The default display value
is equal to the safe maximum operating condition flow rate which is
dependent on the size of the meter.
Figure 13: Analog output screen
Scaled Pulse Set Point Screen
Displays for meters with scaled pulse output. The display resolution
presents the pulse weight for a given unit of measure. See the default
pulse weight chart for each unit of measure in Figure 15.
The unscaled pulse output does not have a dedicated display screen.
Default values are shown in the chart in Figure 15.
Figure 14: Scaled pulse screen
