Badger Meter MN Series User Manual

Configuration / setup
November 2014 AC_F110_BA_02_1346 Page 7

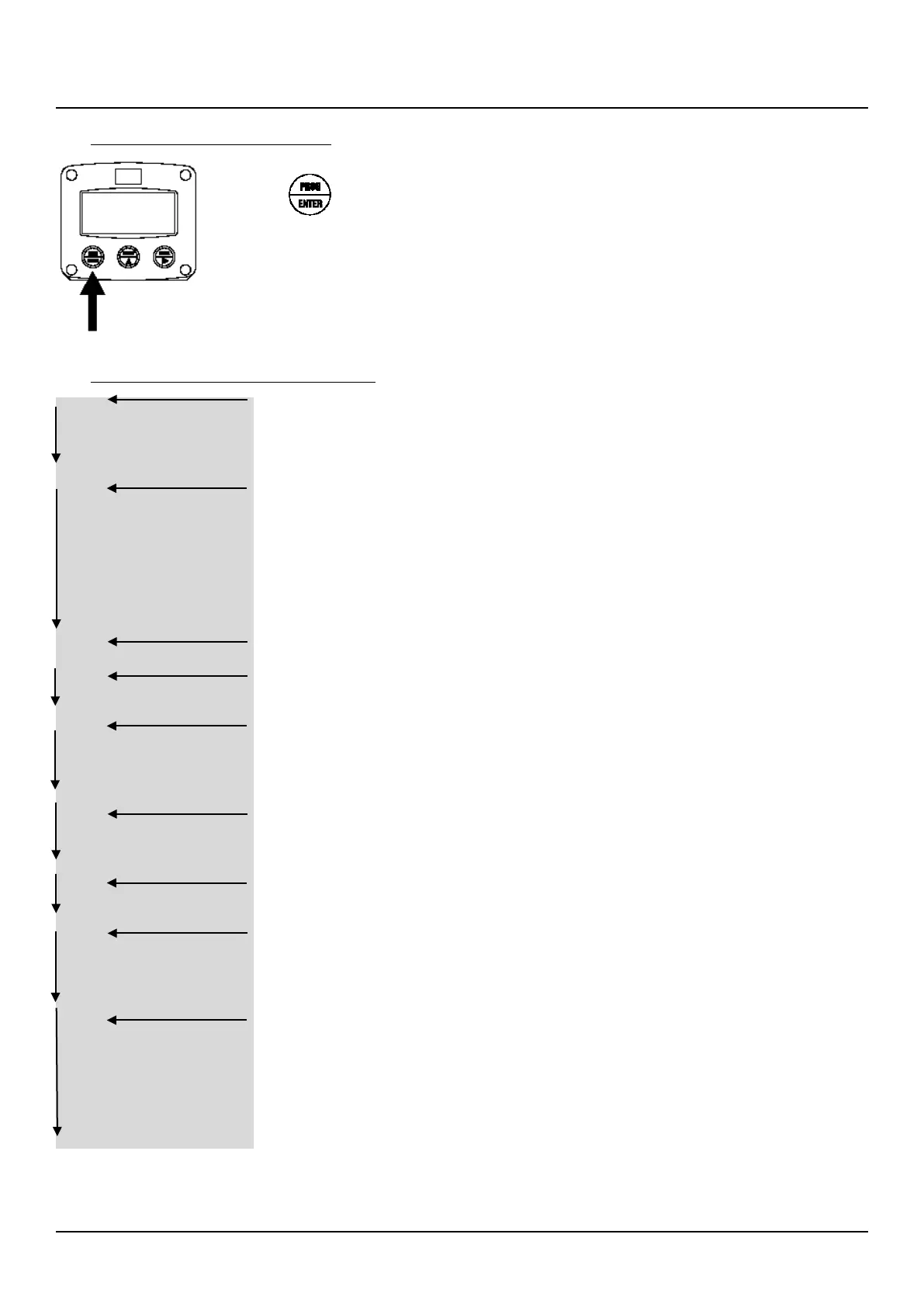

6.3.3 TO RETURN TO THE OPERATOR LEVEL
Press for 3 seconds
6.3.4 FUNCTIONS OVERVIEW OF THE SETUP LEVEL
14
Decimals K-factor: 0-6
13
K-factor: 0.000010 - 9,999,999
12
Decimals: 0 - 1 - 2 -3
1
Total
11
Unit: L - m
3
- kg - lb - GAL - USGAL - bbl - no unit
27
Cut-off: 0.1 - 999.9 seconds
26
Calculation: per 1 - 99 pulses
25
Decimals K-factor: 0 – 6
24
K-factor: 0.000010 - 9,999,999
23
Decimals: 0 - 1
22
Time unit: sec - min - hour - day
2
Flow rate
21
Unit: L – m
3
– kg – lb – GAL – ton – bbl – no unit
3
Display
31
Function: total – flow rate
42
Battery mode: operation - shelf
4
Power management
41
LCD update: fast - 1sec - 3sec -15sec - 30sec
52
Maximum frequency: 1 – 9,999 Hz
51
Signal: NPN - NPN_LP - Reed - Reed_LP
5
Flow meter
NAMUR_LP – COIL HI – COIL LO
63
20MA – flow rate: 0.1 – 9,999.9
62
4mA – Flow rate: 0.1 – 9,999.9
6
Analog
61
Output: enable - disable
71
Pulse width: short – long – off
7
Pulse
72
Pulse: X,XXX,XXX quantity
84
Protocol: Modbus – off
83
Mode: ASCII – RTU
82
Address: 0 – 250
8
Communication
81
Speed: 1200 – 2400 – 4800 - 9600
97
Tag number: 0000000 – 9999
96
Date
95
Time
94
Password: 000 – 9999
93
Serial No.
92
Software version
9
Others
91
Type/model
