Gateway Information
The gateway information screen opens when the software application is launched. You can also select Information from the
left-hand menu to display the gateway Information screen. The screen includes general information about the gateway and
reflects the gateway current status.
ORION SE Gateway Information Screen
OTE:N The ORION SE gateway information screen is shown here. Also see “GALAXY Gateway Information Screen” on
page 16.
The screen shown in Figure 16 is an example of the ORION SE gateway information screen filled with sample data. The
gateway type and serial number are shown at the top of each screen. A Refresh button appears at the top of each screen.
Click Refresh to reload the gateway settings. All fields are read only.

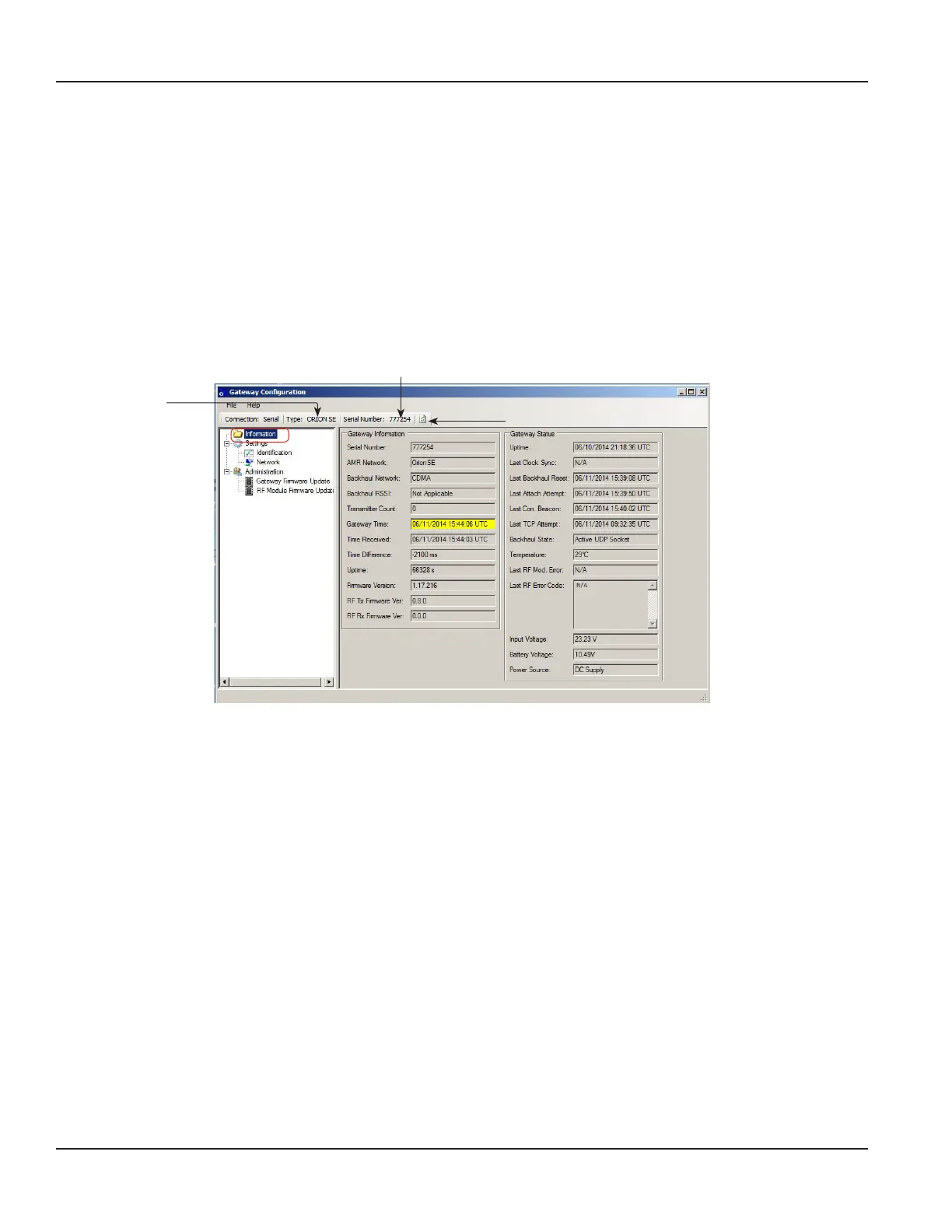

Figure 16: ORION gateway information
ORION SE Gateway Information
Field Description
Serial Number The serial number assigned to the gateway. The serial number is shown on a label on the side of
the gateway transceiver enclosure.
AMR Network Identifies the gateway technology.
Backhaul Network Refers to the communication method between the gateway and the reading data management
software. Options are: CDMA, GPRS, LAN or WiFi.
Backhaul RSSI Good, Average, Poor or Not Applicable. Refers to the signal strength of the backhaul connection.
Transmitter Count Number of endpoints assigned to the gateway.
Gateway Time* The date and time programmed into the gateway.
Time Received* The date and time the information displayed on the screen was received.
Time Difference* The difference between “Time Received” and “Gateway Time.”
Uptime The amount of time the gateway has been running, reported in seconds.
Firmware Version Firmware version of the gateway.
RF Tx Firmware Ver Firmware version of the gateway RF transmit module.
RF Rx Firmware Ver Firmware version of the gateway RF receive module.
* UTC standard time
Refresh button
Gateway serial number
Gateway type
