ORI-AS-00036-EN-06
Gateway Network Conguration
From the left-hand menu, select Network to display the gateway Network Configuration screen. The Network Configuration
screen is used to configure the gateway settings. The screen that displays depends on the backhaul connection—CDMA,
GPRS, LAN or WiFi—used by the customer.
CDMA Configuration Screen
OTE:N The fields on this screen are the same for ORION SE and GALAXY gateways, but the settings will differ.
The CDMA Configuration screen displays when Network is selected and the gateway uses a CDMA backhaul connection. The
screen shown in Figure 18 is an example of the CDMA Configuration screen filled with sample data.

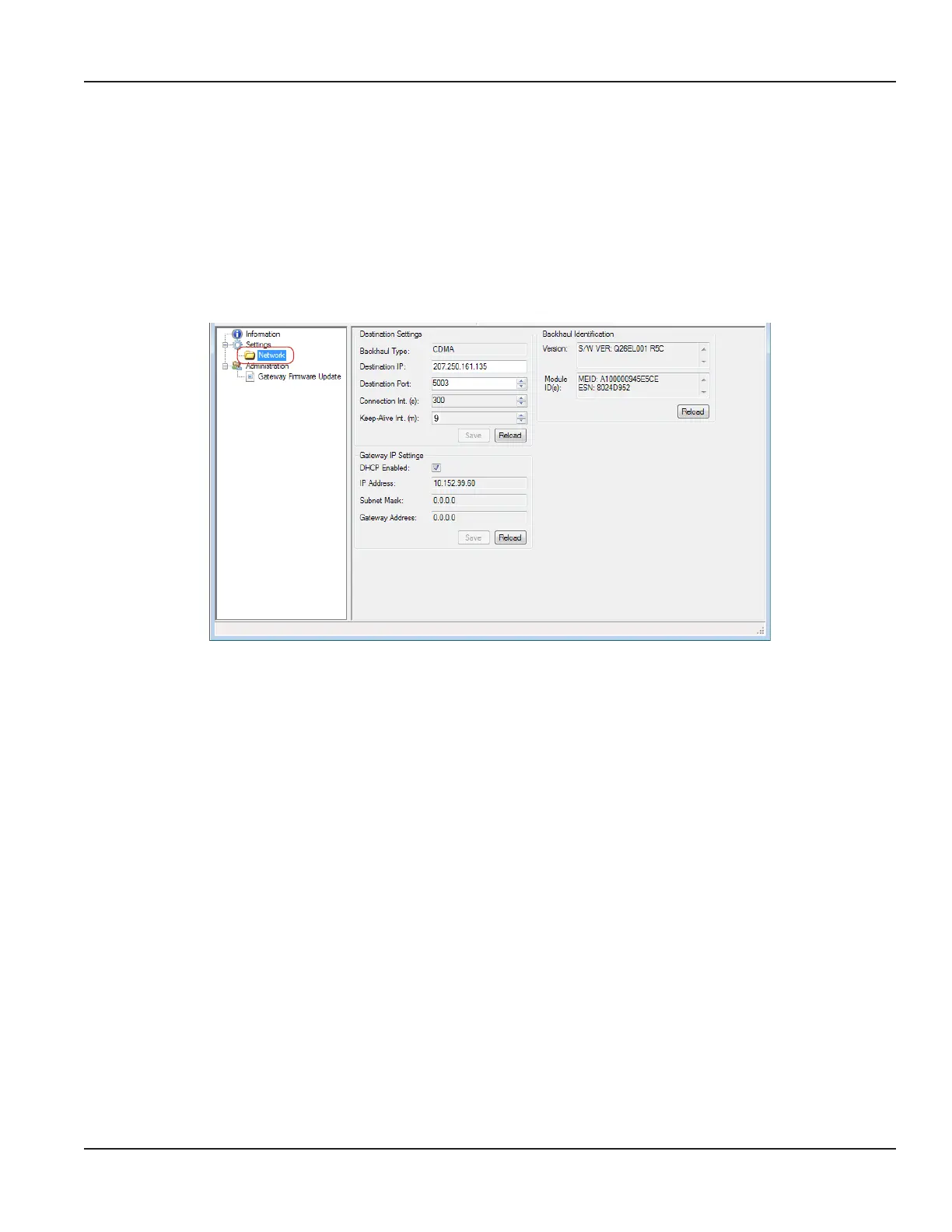

Figure 18: CDMA configuration screen
Changing Configuration Settings
The CDMA Configuration screen is divided into three sections:
• Destination Settings
• Gateway IP Settings
• Backhaul Identification
Fields in the Destination Settings and Gateway IP Settings sections are programmable. If you make a change, the Save button
becomes available.
Click Save to save any changes in the section.
Click Reload to restore the current configuration settings.
OTE:N Reload can only restore current configuration if changes have not been saved.
Fields in the Backhaul Identification section will fill based on information from the gateway. This section is read only.
Using the Software
Page 17 April 2015
