ORI-AS-00036-EN-06
CONNECTING TO THE GATEWAY
Before using the configuration software, you must connect the computer with the installed software to the gateway using the
serial programming harness.
GALAXY Gateway Programming Harness
The GALAXY gateway is programmed using a 5- or 7-pin programming harness, depending on the gateway power
cable. Check the connector end of the gateway power cable. The power cable with a 7-pin connector requires the 7-pin
programming harness, PN: 66529-002. The power cable with a 5-pin connector requires the 5-pin programming harness,
PN: 66529-001. See examples of the connectors below in Figure 10.

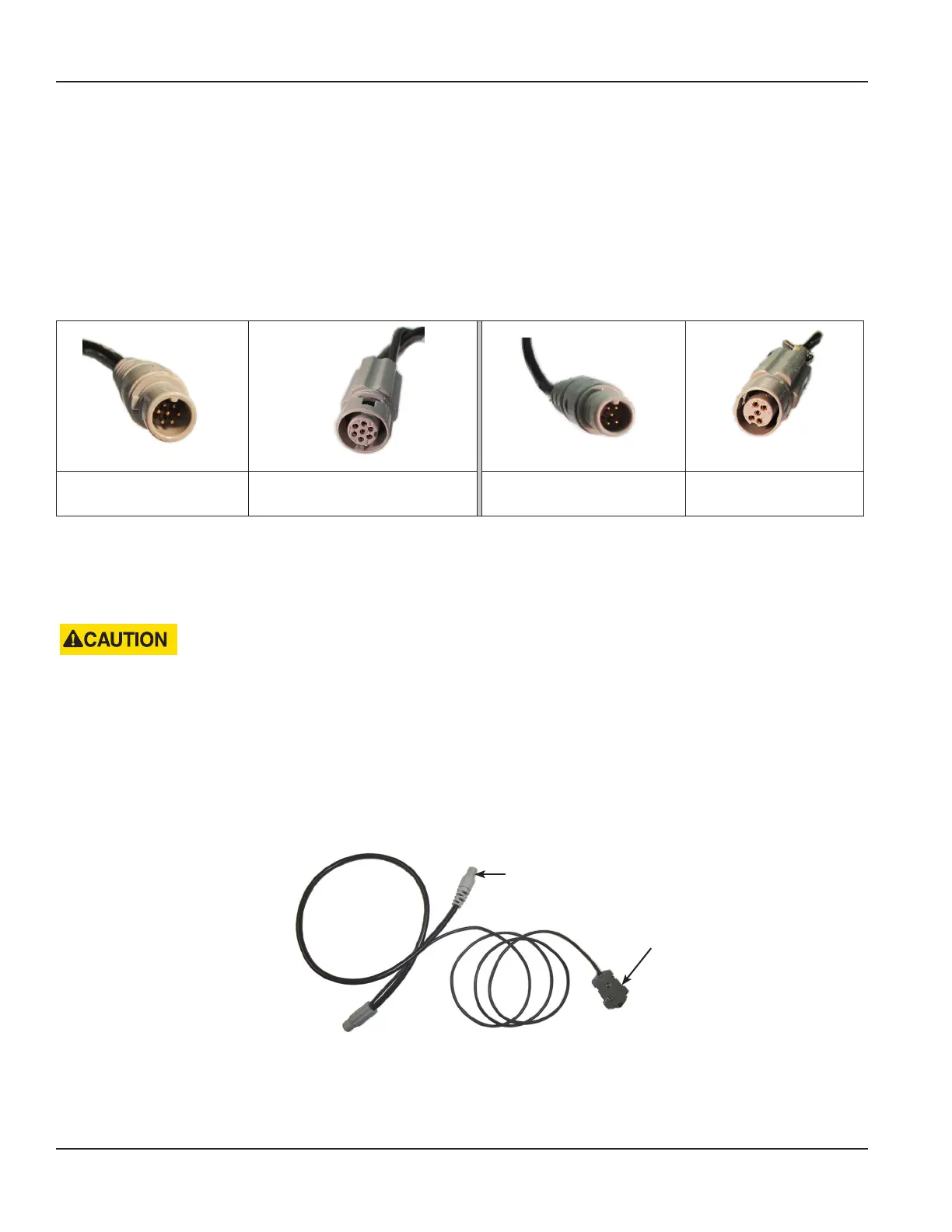

7-pin power cable connector
PN: 66233-015, -017
7- pin programming harness
PN: 66529-002
5-pin power cable connector
PN: 66233-010, -013
5- pin programming harness
PN: 66529-001
Figure 10: Power cable and programming harness connectors
OTE:N ORION SE gateways use the 7-pin serial programming harness.
Inserting the Programming Harness
DISCONNECT THE POWER SUPPLY TO THE GATEWAY WHILE YOU INSERT THE SERIAL PROGRAMMING HARNESS. THEN
RECONNECT THE POWER SUPPLY AFTER THE PROGRAMMING HARNESS IS CONNECTED.
1. Insert the programming harness between the gateway DC power cable and the power supply cord by doing
the following:
• Disconnect the 308 connector near the AC outlet end of the gateway power supply. Squeeze the connector ends
and pull firmly to disconnect.
• Remove the caps from the 308 connectors on the programming harness.
Figure 11: Gateway serial programming harness
Connecting to the Gateway
Page 10 April 2015
308 connector
with cap removed
RS232 serial port
connection
To Next Page
