ORI-AS-00036-EN-06
GPRS Configuration Screen
OTE:N The fields on this screen are the same for ORION SE and GALAXY gateways, but the settings will differ.
The GPRS Configuration screen displays when Network is selected and the gateway uses a GPRS backhaul connection. The
screen shown in Figure 19 is an example of the GPRS Configuration screen filled with sample data.

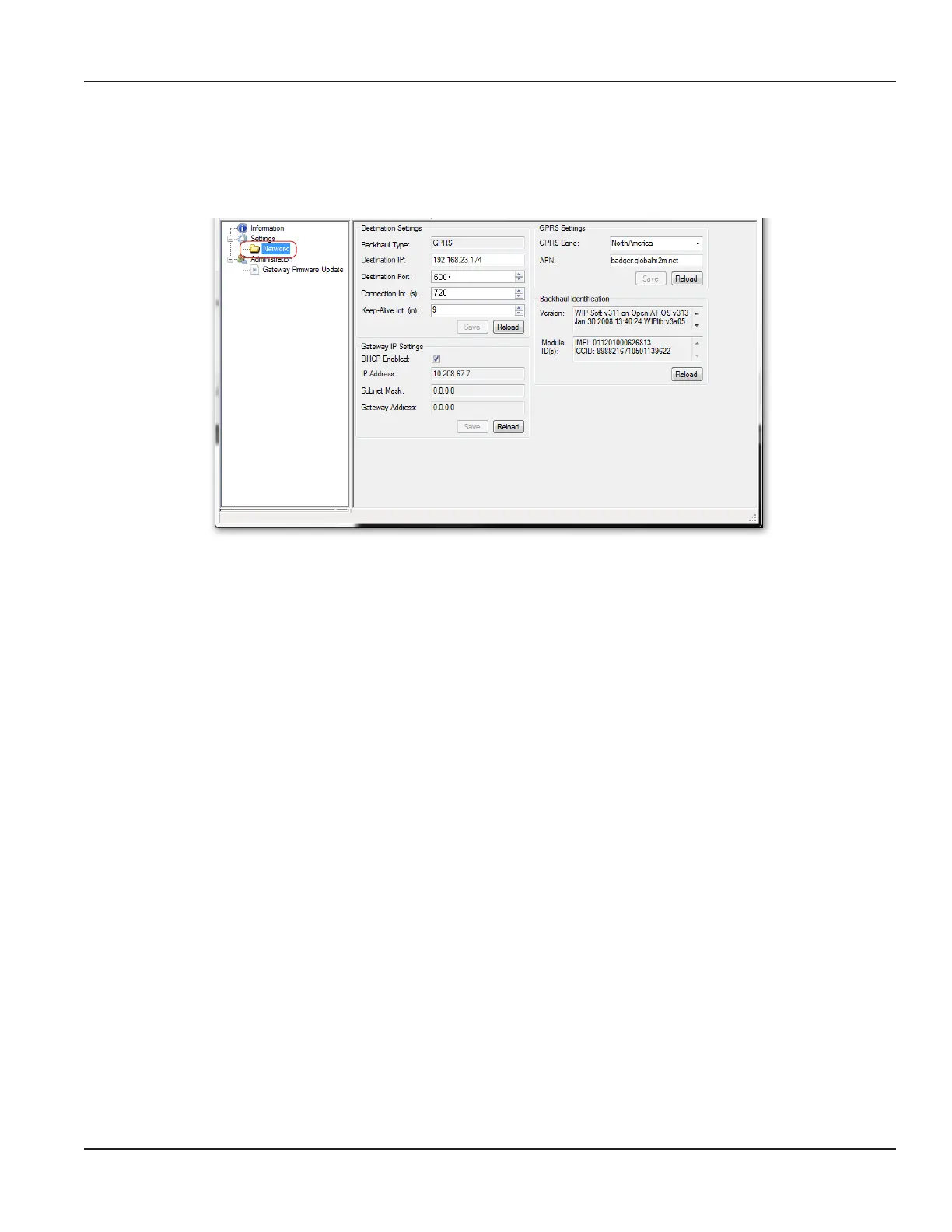

Figure 19: GPRS Configuration screen
Changing Configuration Settings
The GPRS Configuration screen is divided into four sections:
• Destination Settings
• Gateway IP Settings
• GPRS Settings
• Backhaul Identification
Fields in the Destination, Gateway IP and GPRS Settings sections are programmable. If you make a change, the Save button
becomes available.
Click Save to save any changes in the section.
Click Reload to restore the current configuration settings.
OTE:N Reload can only restore current configuration if changes have not been saved.
Fields in the Backhaul Identification section will fill based on information from the gateway. This section is read only.
Using the Software
Page 19 April 2015
