Badger Meter PC200 User Manual

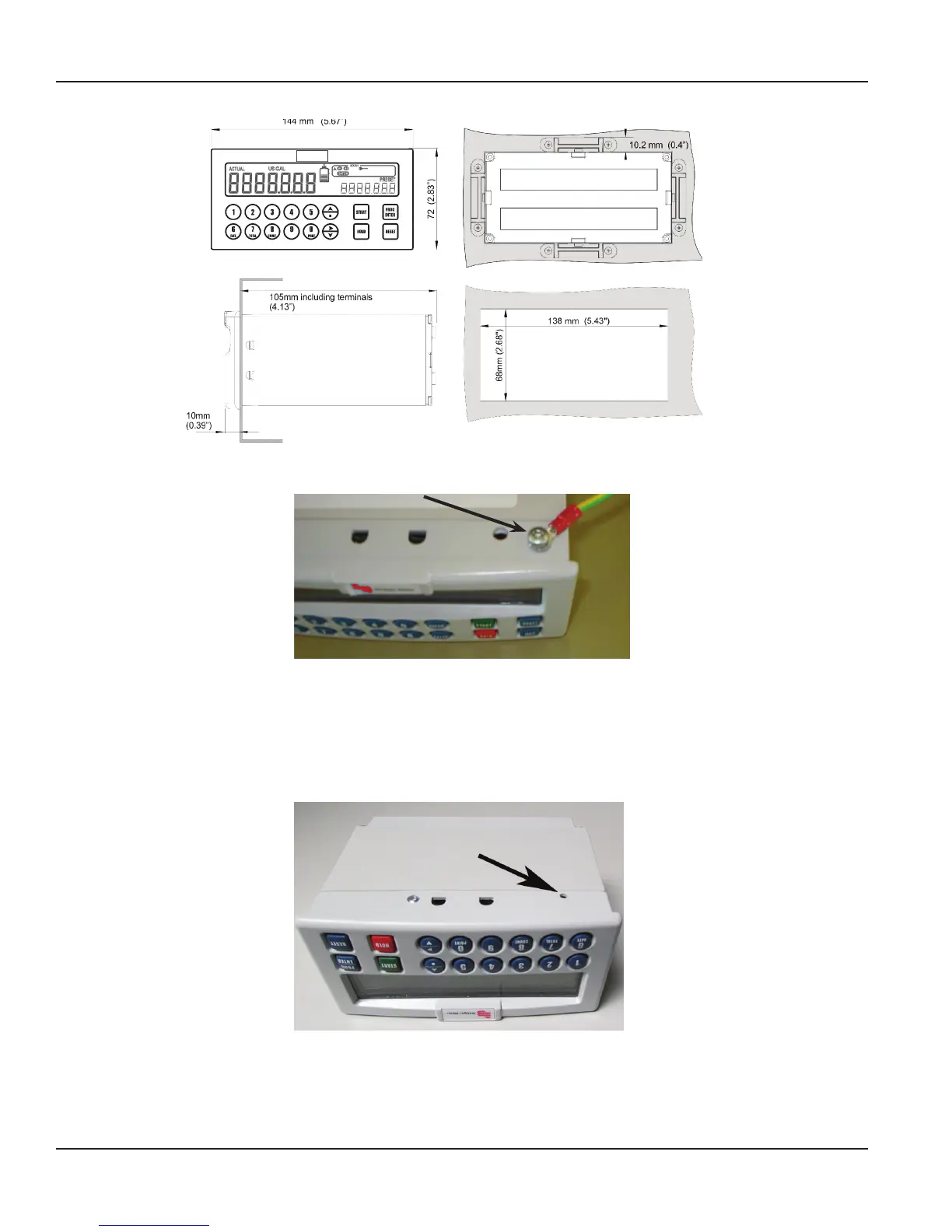

Figure 2: Enclosure dimensions
Figure 3: Grounding location, top view
MPORTANTI
Installations must have a reliable ground connection for the sensor and the metal casing.
Installations must have an effective screened cable for the input signal and grounding of its screen to the ground terminal or at the
sensor itself, whichever is appropriate to the application.
Figure 4: Grounding location, bottom view
Industrial Process Controller, Model PC200
Page 10 April 2017CTL-UM-00483-EN-07

Badger Meter PC200 Specifications

General

Brand	Badger Meter
Model	PC200
Category	Controller
Language	English
