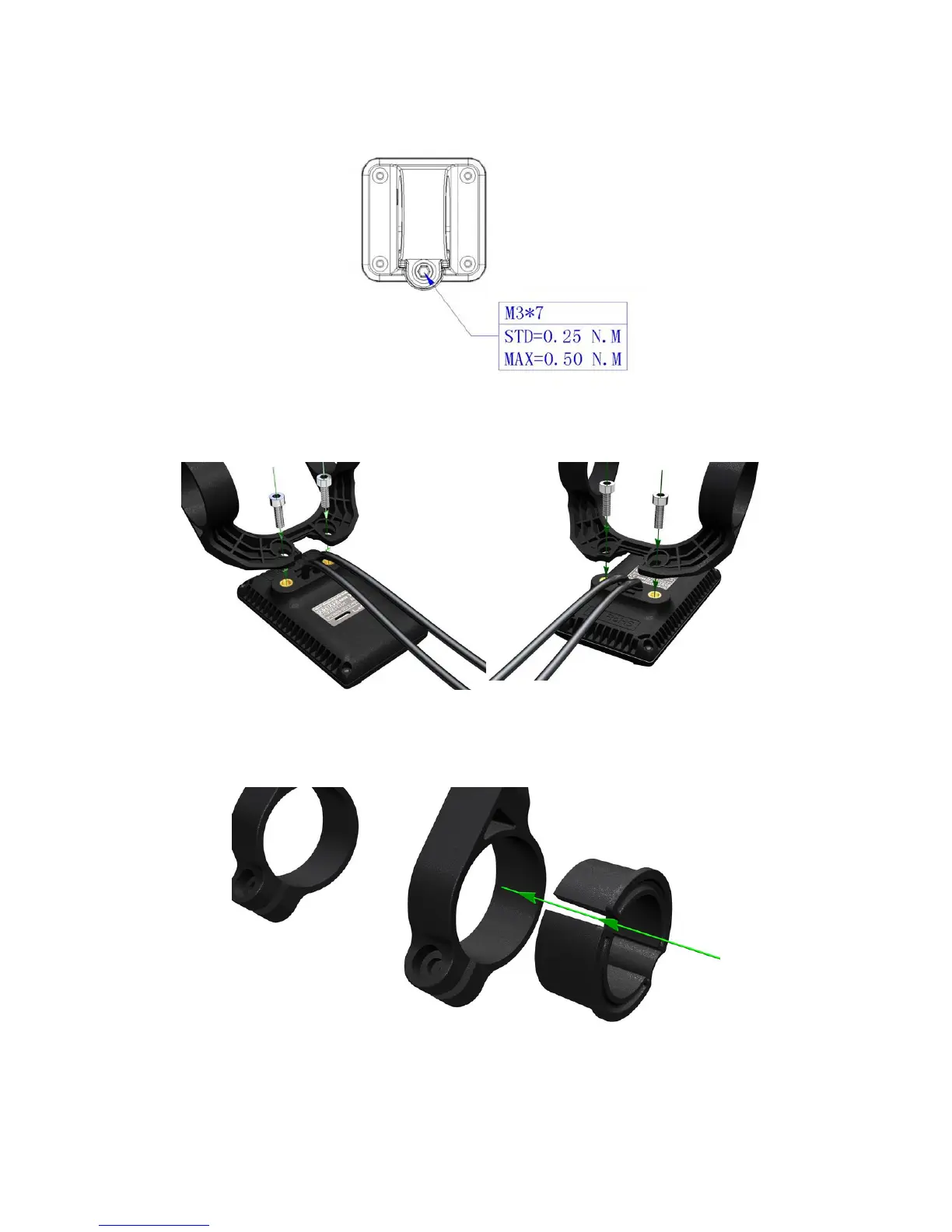

There ar
e two installation methods for the clamp, forward or backward, according to user’s
demands. Different assembly methods will need different cable length.
Clam
ps suit for 3 size of handlebar diameter, 31.8mm, 25.4mm, 22.2mm, there are different transfer
rings for 25.4mm and 22.2mm, transfer ring must assembly in right direction, see the figure below,
pay attention to the green arrow position.
