12 W
arning

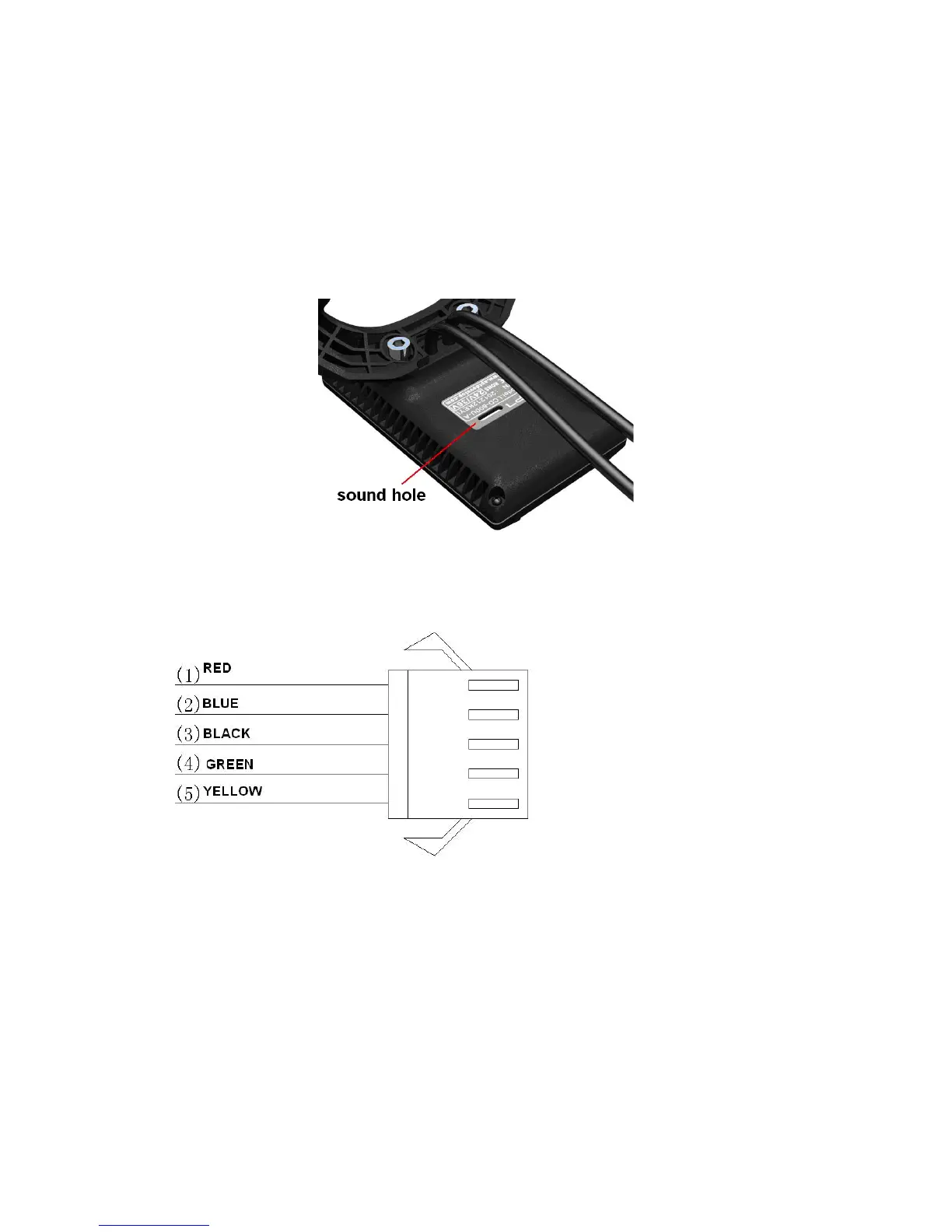

There is waterpr
oof membrane inside the sound hole. Don’t insert sharp object into the hole,
it will causes waterproof failure.
Sun exposure may cause high temperature indicate, this is not display’s failure.
13 Output
wire instructions
1、
Red wire : Anode(24v/36v)
2、 Blue wire : Power cord to the controller
3、 Black wire : GND
4、 Green wire : RxD (controller -> display)
5、
Y
ellow wire : TxD (display -> controller)
14
PAS level instructions
P
AS level can be customized, the highest level is 9, common used PAS level see the
table below:
