BAFANG DP C15.UART - Introduction

2
DISPLAY MANUAL DP C15.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP C15.UART
• Scope: EN15194 electrically power assisted
cycles

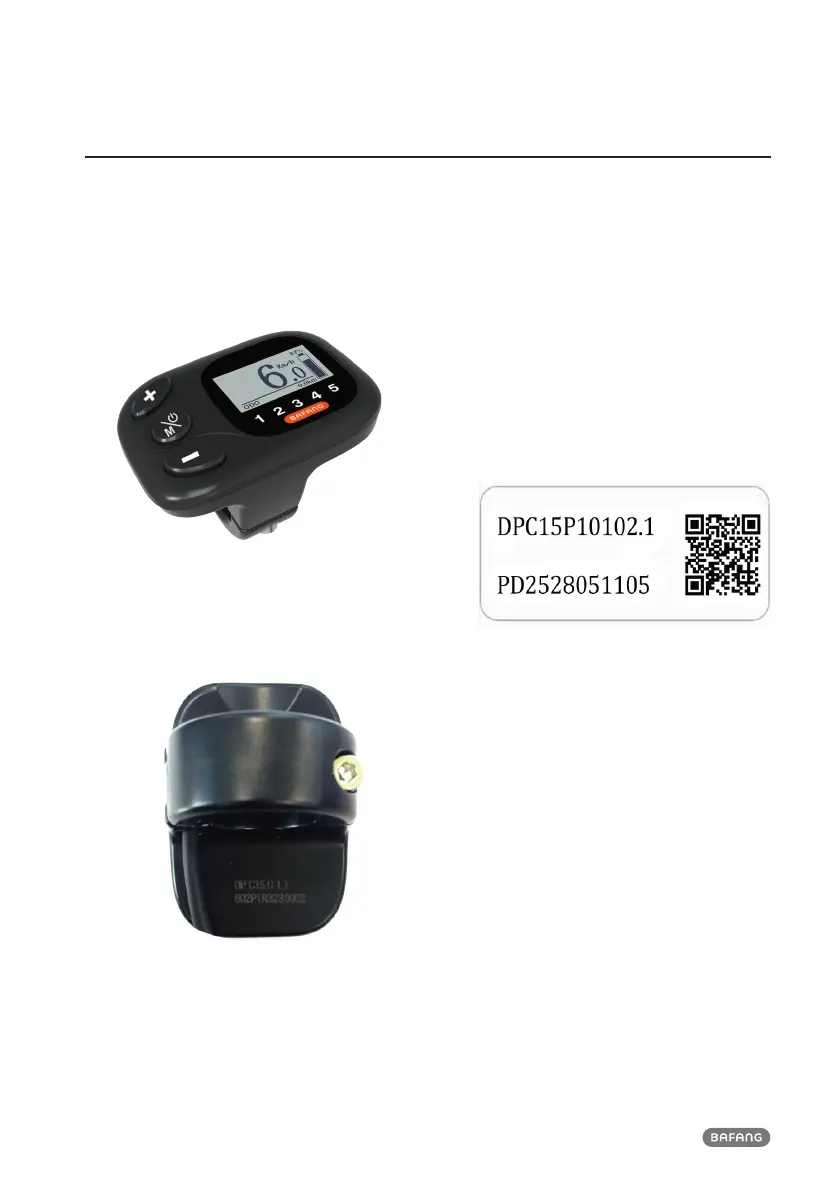

• Appearance: (as figure)
• Numbering on the back of display
Number in the middle of display back,
number is divided into two lines (as shown
in the figure):
A. First line (as below)
DP C15.U 1.1
① DP C15.U : BAFANG display model
② 1.1: Hardware version number
B. Second line (as below)
602P1R3230002
① 602: Wire length and connector type
850 M5.2
② P1: Internal identify number
③ R3230002: Production date is 23th
Mar. 2017, the series number is 0002.
• Label number rule:
Number in the middle of P type cable label,
number is divided into two lines and QR
code is at right side (as figure):
① First line:
DPC15P10102.1 - Software version
② Second line:
PD2528051105 - Parameter code
③ Content of QR code:
DPC15P10102.1
PD2528051105
DPC15.U 1.1
602P1R3230002
