DISPLAY MANUAL DP C18.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP C18.UART
• Scope: electrical power assistance cycle
• Appearance: the housing is made of PC; The
liquid crystal display is made of hardened
PMMA

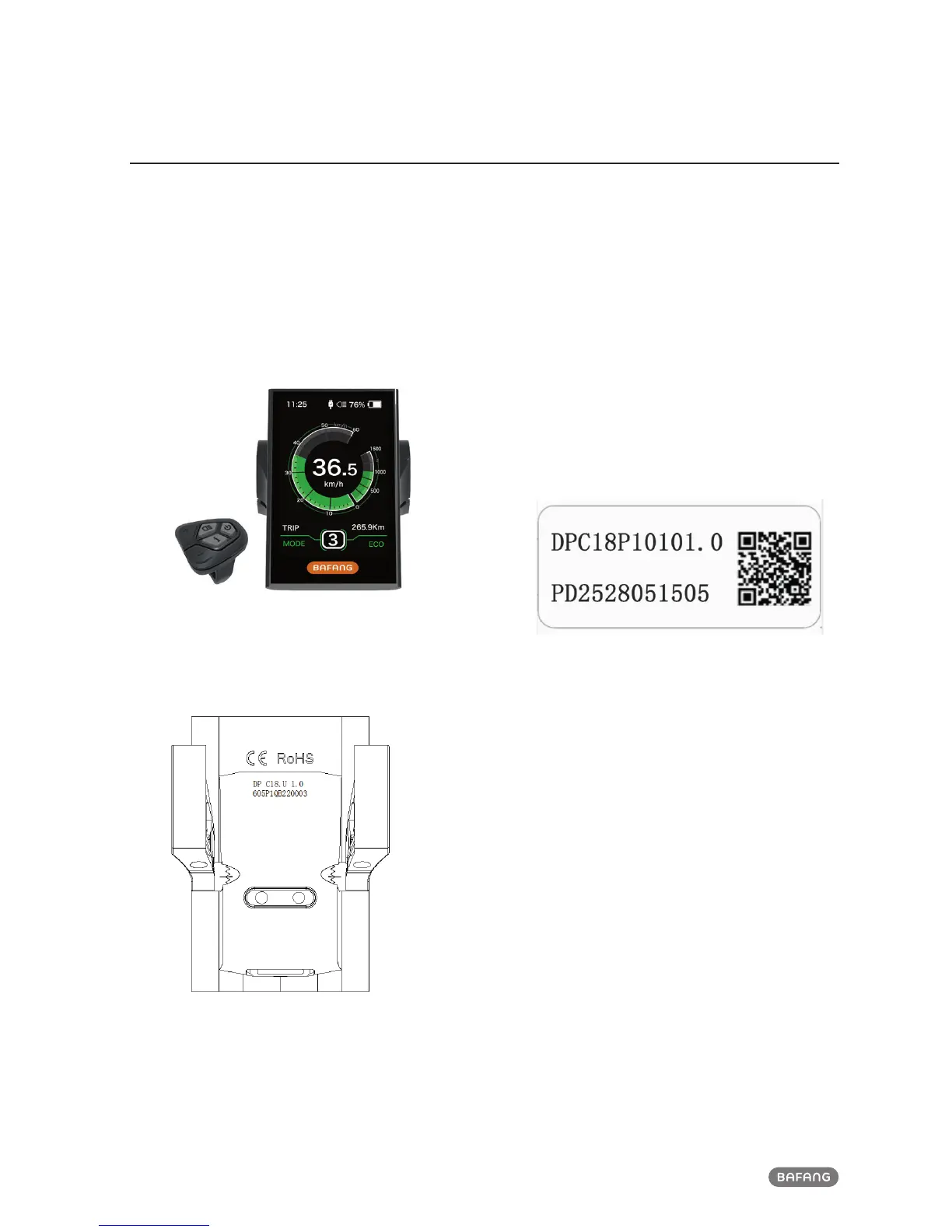

• Laser numbering on the back of the display
Number in the middle of display back, num-
ber is divided into two lines:
A. First line (as below)
DP C18.U 1.0
① DP C18.U: BAFANG display model
② 1.0: hardware version number
B. Second line (as below)
605P1QB220003
① 605: Wire length and connector type
is 230mm M5.2
② P1: Internal Identity number
③ QB220003: Production date is
21st Nov. 2016; SN is 0003
• P type cable label number rule
Number is divided into two lines and QR
code is at right side (as shown in the below
figure)
Content of QR code:
DPC18P10101.0
PD2528051505
DP C18.U 1.0
605P1QB220003
The first line:
DPC18P10101.0 - Software version
The second line:
PD2528051505 - Parameter code
The last two lines:
DP C18.U 1.0 / 605P1QB220003 - SN
