DISPLAY MANUAL DP C18.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP C18.UART
• Scope: electrically power assistance cycle
• Appearance: the shell is made of PC; The
liquid crystal display is made of hardened
PMMA

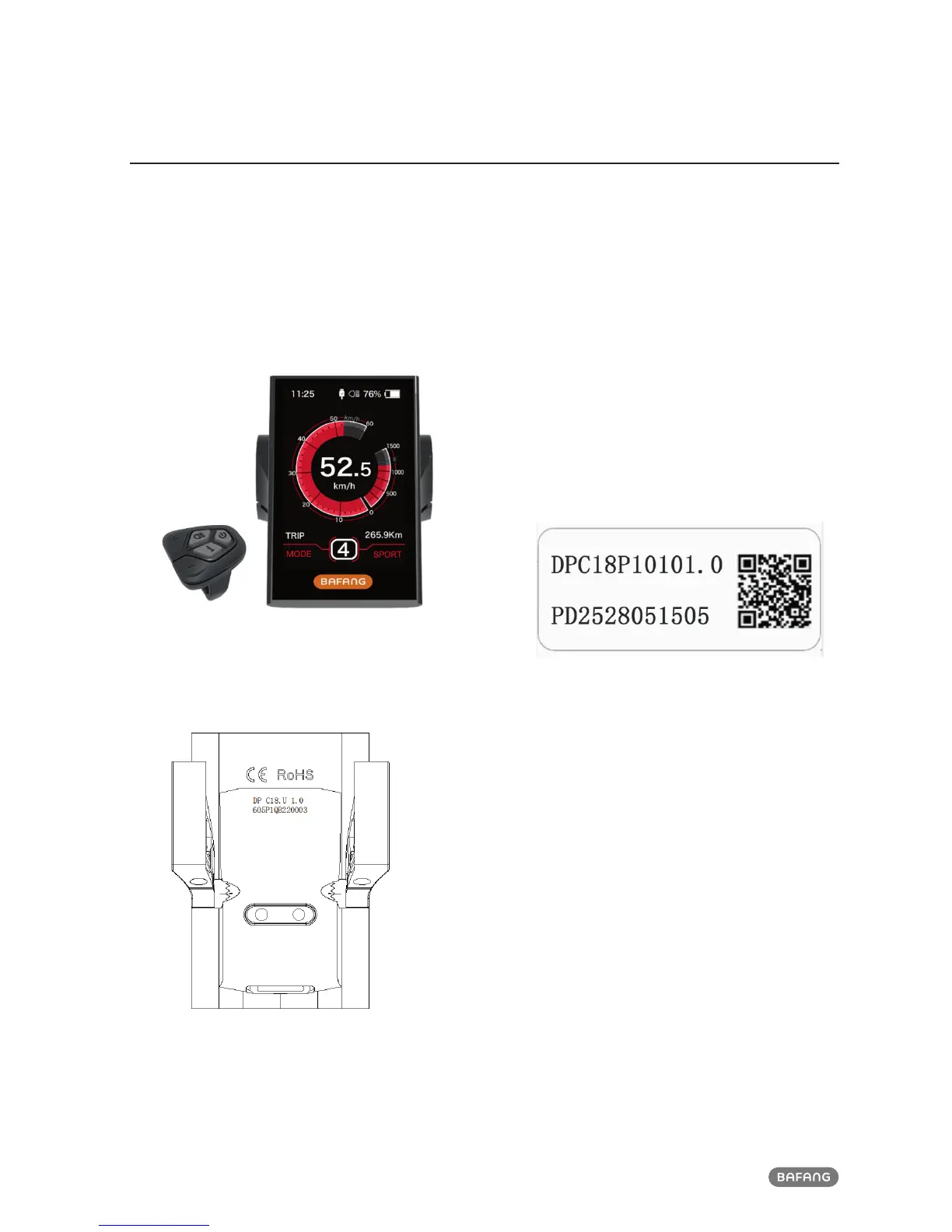

• Numbering on the back of the display
Number on the middle of display back, num-
ber is divided into up row and down row:
A. Up row number (as below)
DP C18.U 1.0
① DP C18.U: BAFANG display model
② 1.0: hardware version number
B. Down row number (as below)
605P1QB220003
① 605: Wire length and connector model
is 230mm M5.2
② P1: design number
③ QB220003: Production date is
21st Nov. 2016; SN is 0003
• Display P type wire label number rule
Number on the middle of P type label, num-
ber is divided into up row and down row
and QR code is at right side (as shown in the
below figure)
Content of QR code:
DPC18P10101.0
PD2528051505
DP C18.U 1.0
605P1QB220003
The first line:
DPC18P10101.0 - Software version
The second line:
PD2528051505 - Parameter code
The last two lines:
DP C18.U 1.0 / 605P1QB220003 - SN
