Bailey Approach - The Drop Down Bed; Operation

Some models in the Bailey Approach Range
are tted with Electronic Drop Down Beds.
These beds are designed and tested to
support up to and not exceeding 200Kg.
Due to the mechanism it is important that the
following are adhered to:
Do not remain on the bed whilst the lifting
mechanism is in use
Do not allow others or children to remain on
the bed whilst the lifting mechanism is in use.
Do not allow children to play with the lifting
mechanism.
Ensure that the running track of the lifting
mechanism is kept clear.
When lifting or lowering the bed remove all
bedding- except for the tted sheet.
Before lifting the bed raise the mattress and
store the fall out nets in the gap by the Froli
springs.

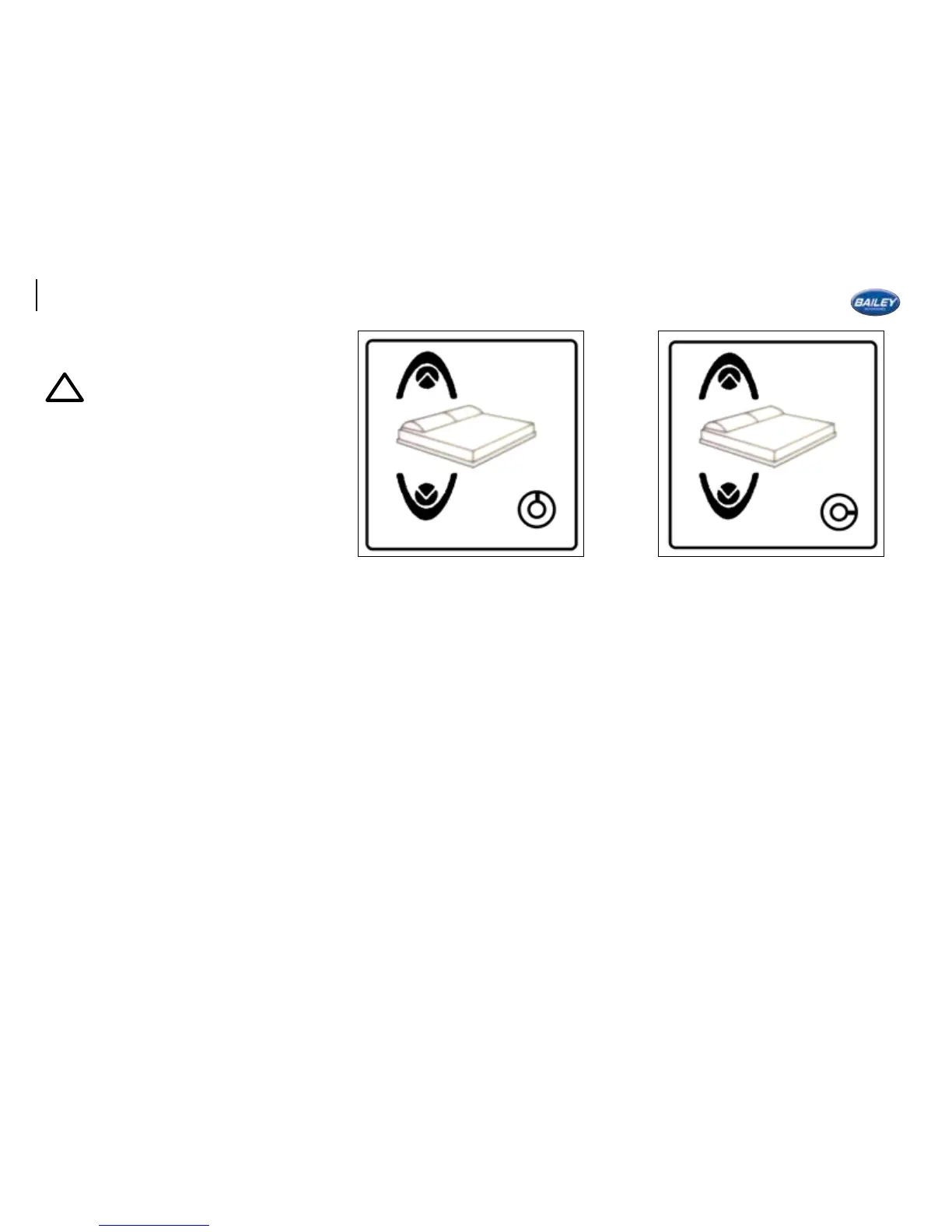

The bed is operated from a small aluminium
panel with security key and two buttons, one to
move the plane of the bed upwards, the other
downwards.
OPERATION
Insert the key into the lock and turn clockwise
by 90°
Press the top button to bring up the bed. The
bed moves as long as the button is pressed to
lift.
Press the bottom button to lower the bed. The
bed moves downward as long as the user holds
down the button.
The lifting-bed system is equipped with two
limit switches fro protection. If for example
the user depresses and holds the down button
for a longer time than that required for the bed
to travel its full drop then, a protection device
takes over and disables the movement so as
not to exit the bed from the guides and also to
protect the motor.
This protection is replicated for the upward
movement.
Once place the bed reaches the desired
position, turn the key to the OFF position,
turning it to the left by 90 °.
PROTECTION
There are various types of protections.
* The key for isolation of operation
* 2 limit switches, one high and the other low
* Mechanical Movement
The bed-lifting mechanism should only be
operated by adults.
EMERGENCIES
Unlocking procedure incase of insufcient
power.
The electric motor is tted on the end with a
hexagonal nut, which allows manual movement
of the plane of the bed in case of insufcient
voltage of the vehicle leisure battery. The bed
mechanism can be operated manually, if power
is disabled, simply by turning the hexagonal
nut clockwise or counter clockwise, depending
on the desired direction of movement.
80
FITTED EQUIPMENT-THE DROP DOWN BED
!
