Bajaj Pulsar 135 LS User Manual

Location of Parts
8

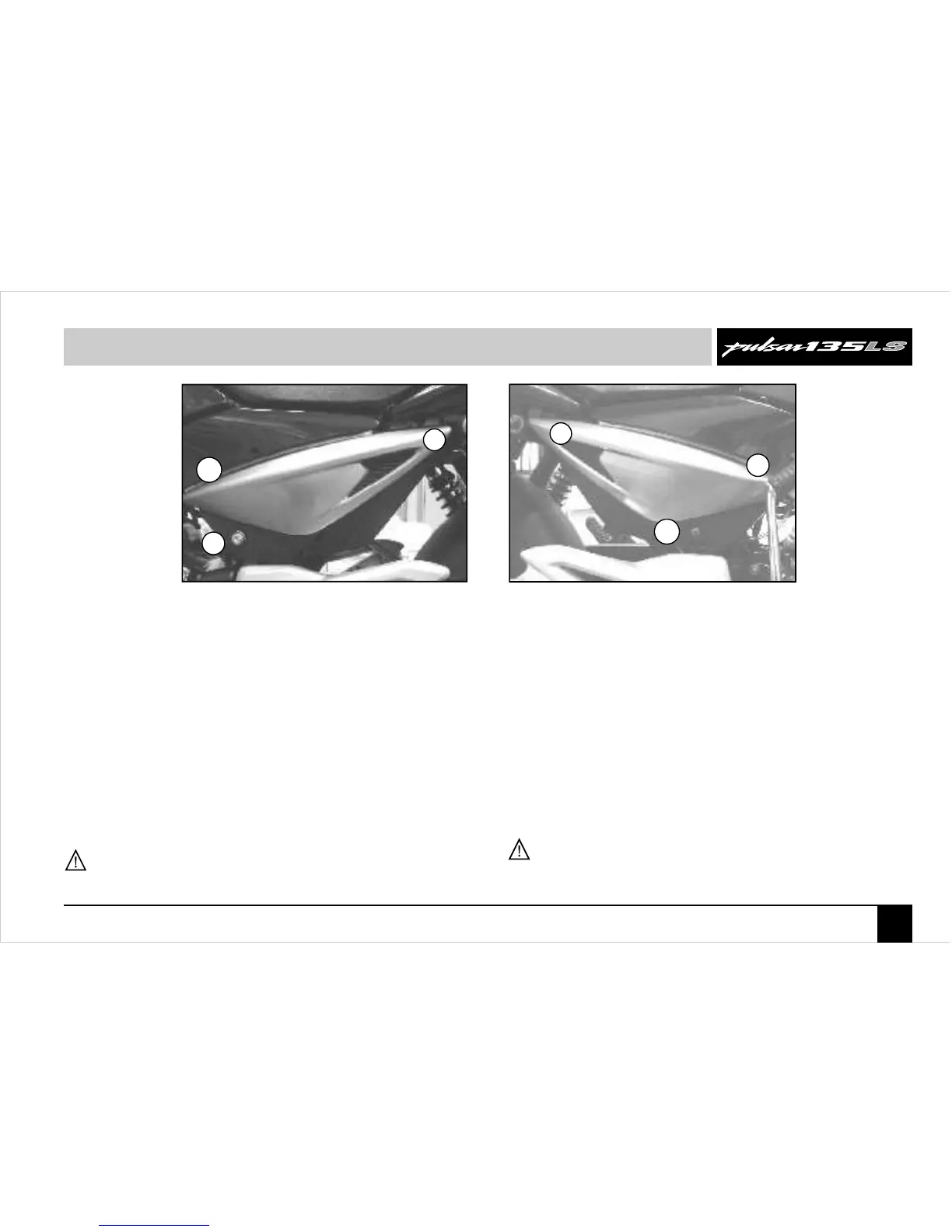

Removal of Side Cover LH
• Insert the key into the cover lock (A) and turn the key
clockwise.
• Hold the cover with both hands and pull front side
first (B). Slide (C) forward. Take out ‘Side cover’.
Fitment of Side Cover LH
• Match lug provided on rear side (C) of ‘Side Cover’
with bracket located on chassis & Slide (C) backward.
• Match Lug (B) provided on front side of ‘Side Cover’
with hole provided on ‘Fuel Tank’. Press the cover.
• Match the ‘Side Cover’ properly lock with bracket
provided on ‘Holder step LH’ & Lock (A) the ‘Side
Cover’.
CAUTION : Remove cover as described above,
otherwise the lugs may break.
Removal of Side Cover RH
• Remove the screw (A) given on ‘Side Cover’.
• Hold the cover with both hands and pull front side
first (B) . Slide (C) forward. Take out ‘Side cover’.
Fitment of Side Cover RH
• Match rear side (C) of ‘Side Cover’ lug with Bracket
located on chassis and slide (C) backward.
• Match Lug provided on front side (B) of ‘Side Cover’
with hole provided on ‘Fuel Tank’ and press ‘Side
Cover’ inside.
• Match ‘Side Cover’ properly with bracket provided on
‘Air filter assly’ and fix it with Screw (A).
CAUTION : Fit cover as described above to ensure
proper fitment.
A
B
C
A
B
C

Bajaj Pulsar 135 LS Specifications

General

Engine Type	4-Stroke, DTS-i, Air Cooled, Single Cylinder
Displacement	134.66 cc
Max Power	13.5 PS @ 9000 rpm
Max Torque	11.4 Nm @ 7500 rpm
Transmission	5-speed
Fuel System	Carburetor
Front Brake	240 mm Disc
Rear Brake	130 mm Drum
Fuel Tank Capacity	8 liters
Kerb Weight	122 kg
Gearbox	5-speed
Bore x Stroke	54 mm x 58.8 mm
Compression Ratio	9.8:1
Overall Length	1995 mm
Overall Width	765 mm
Overall Height	1045 mm
Wheelbase	1325 mm
Ground Clearance	165 mm
Front Suspension	Telescopic
Rear Suspension	5-way adjustable, Nitrox shock absorber
Clutch	Wet, Multi Plate
Front Tyre	2.75 x 17
Rear Tyre	100/90 x 17
Starting	Kick and Self Start
