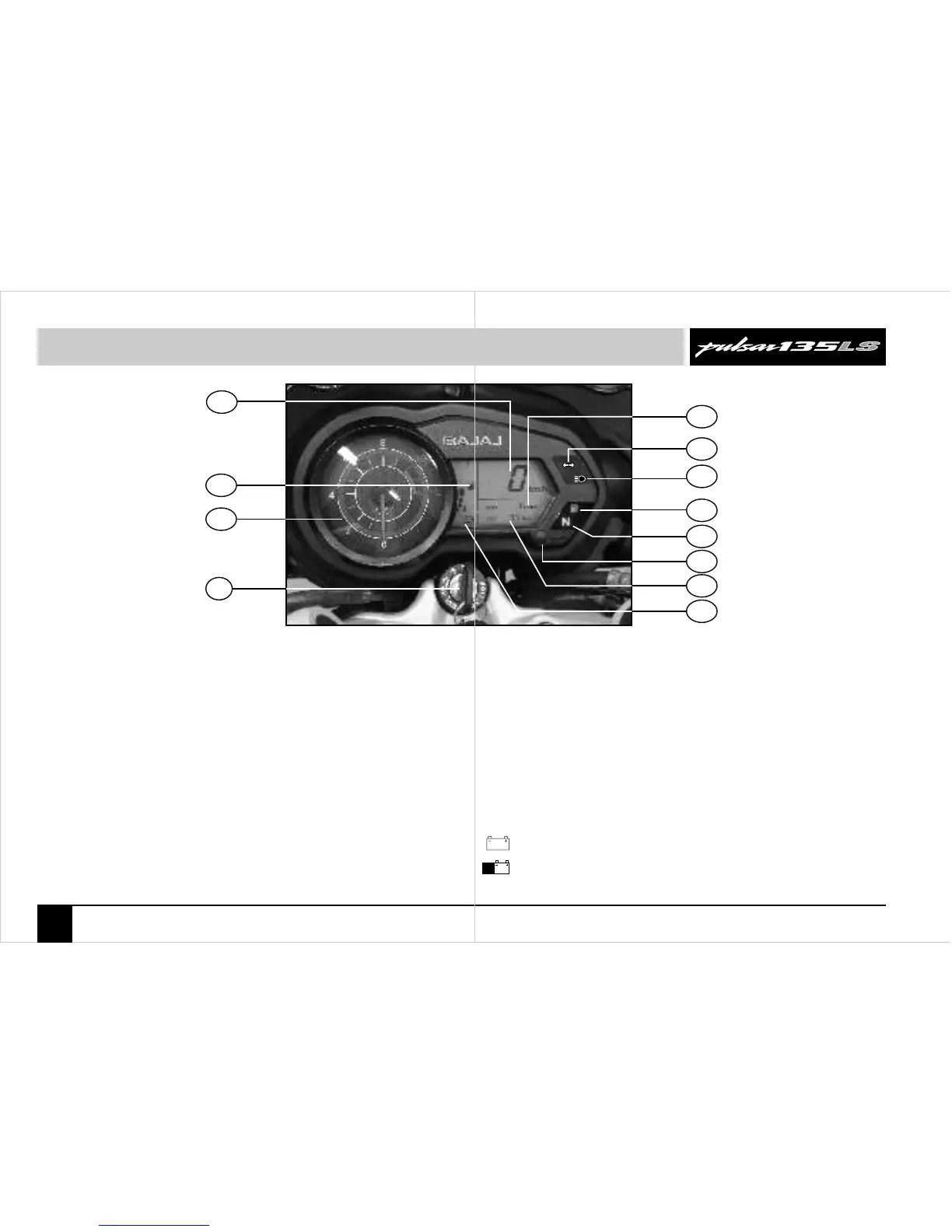

Location of Parts
1. Speedometer : The vehicle speed is displayed in digit.
2. Fuel Level Indicator : It shows available fuel in fuel tank.
3. Tachometer : It shows the engine speed in RPM.
4. Steering cum Ignition Switch : Key operated switch for Ignition
‘ON’/‘OFF’ & locking handle bar.
5. Odometer : The Odometer shows cumulative reading of total
distance covered by vehicle in Km.
6. Turn Signal Indicator (LH & RH) : When Turn signal switch is
turned to Left or Right, Turn pilot indicator - LH or RH will flash.
7. Hi Beam Indicator : When Headlight is ‘ON’ & Hi beam is
selected with engine running, Hi beam indicator will be lit.
6
5
11
12
3
7
9
8
10
2
4
1
8. Reserve Indicator : It shows reserve position when petrol left in
the petrol tank is 2.5 ltr. Approx.
9. Neutral Indicator : When the transmission is in Neutral and
Ignition switch ‘ON’, the Neutral indicator is lit.
10. Trip Meter Reset Button : Trip meter can be reset to zero by
pressing the button.
11. Trip Meter : The Trip meter shows the distance travelled since it
was last reset to zero.
12. Battery Indicator : It shows battery charge condition.
Continuous display of this icon means battery is in charged condition.
Pop-up of this indication means battery is in low charged condition.
