Bajaj Pulsar 135 LS - Location of Parts: Seat Fitment

11

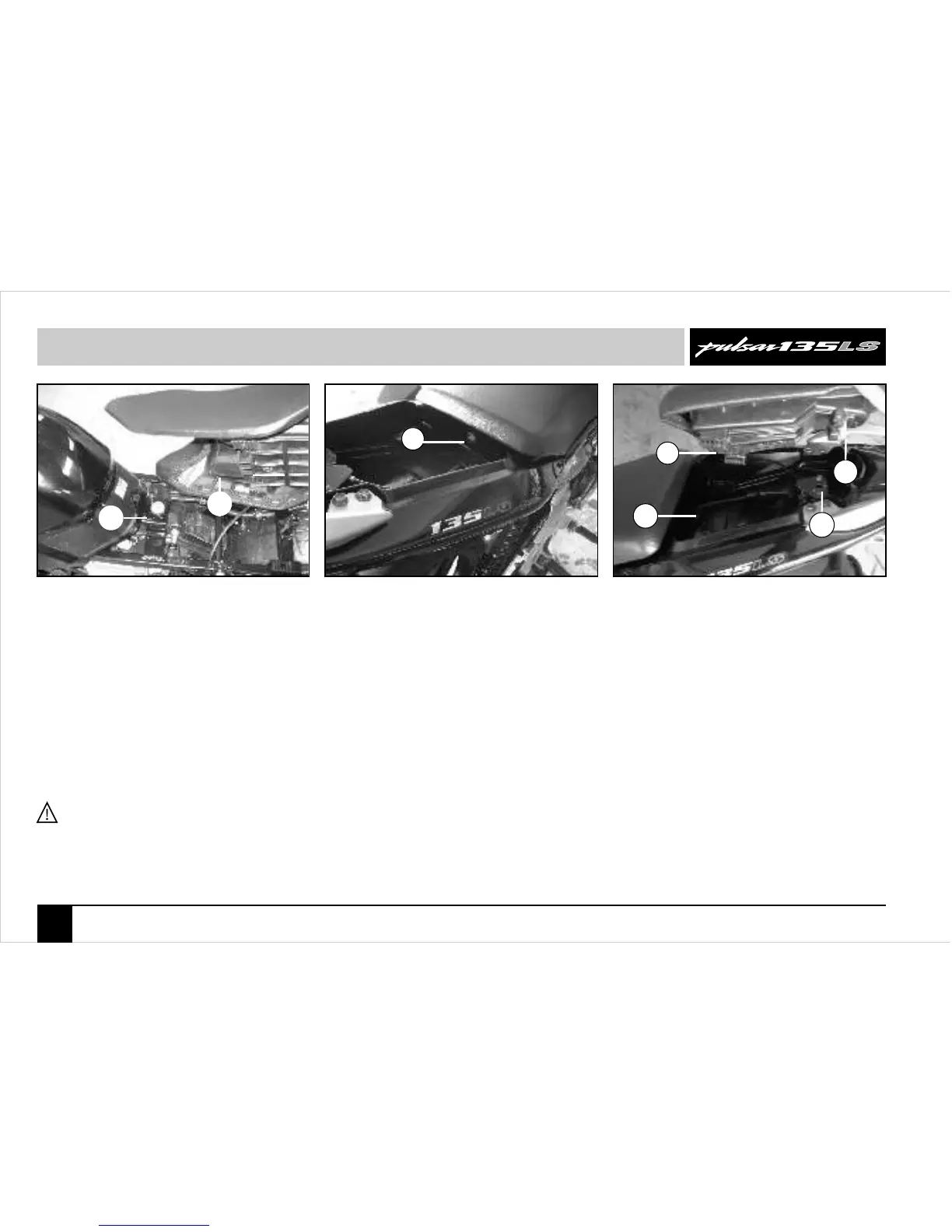

Fitment of Seat - Front
• For fitment of Seat Front, match & insert the bracket
(‘1’ of Fig. ‘A’) of seat with slot (‘2’ of Fig. ‘A’)
provided below fuel tank rear mounting on chassis.
Push seat towards fuel tank.
• Then press the seat at rear from top to align lock
bolt (‘3’ of Fig. ‘B’) .
• Tighten the lock bolt.
CAUTION : Always fit Front Seat first.
Fitment of Seat - Rear
• For fitment of Seat Rear, match & insert the bracket
(‘4’ of Fig. ‘C’) of seat with bracket (‘5’ of Fig. ‘C’)
provided on chassis.
• Push seat towards fuel tank and align lock rod (‘6’
of Fig. ‘C’) & seat lock (‘7’ of Fig. ‘C’).
• Then press the seat in middle from top to lock the
seat.
Fig. B
3
Fig. A
1
2
4
5
6
Fig. C
7
Location of Parts
